Vietnam Factory Cylinder Parts Assembled Adjustable Swivel Run Tee-EL-M-ED Hydraulic Fitting for Sale Tariff-free

Send Inquiry

Product Description

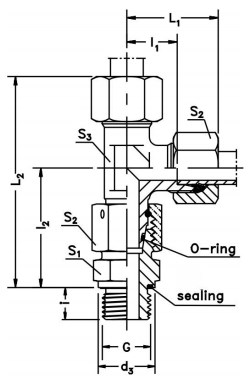

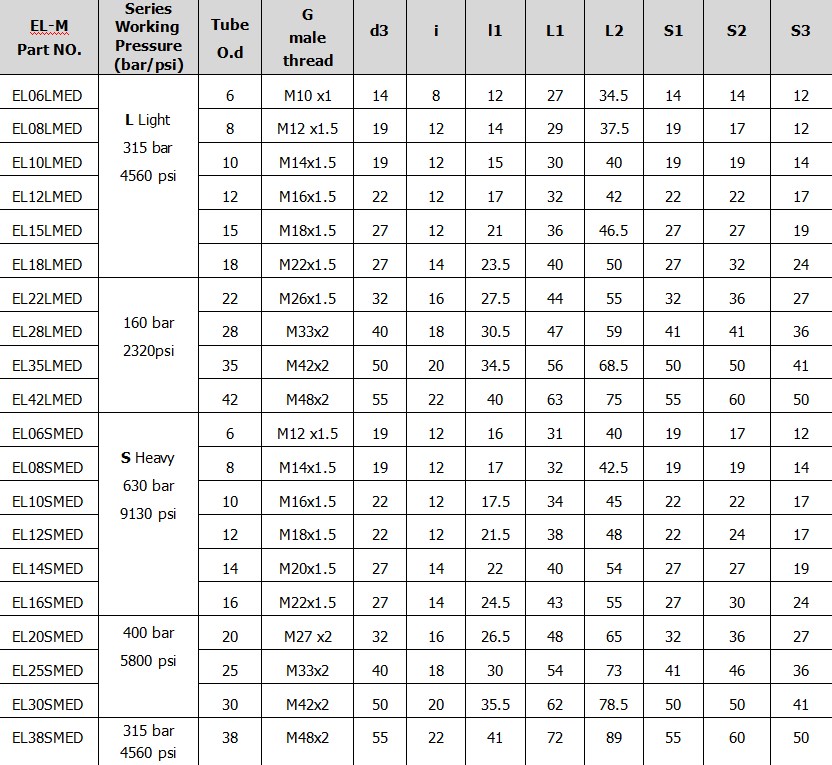

Assembled Adjustable Swivel Run Tee: This suggests that the fitting combines the features of an adjustable swivel mechanism with the functionality of a run tee. It likely allows for the connection of three hydraulic components or lines, with one inlet and two outlets, while also providing the ability to adjust or rotate the fitting for precise alignment and positioning. EL-M-ED Designation: The "EL-M-ED" designation appears to be a specific code or part number assigned by the manufacturer. Each component of the code may carry particular meanings related to size, thread type, material, or other features of the fitting. Without further information, it's difficult to provide precise details on the characteristics denoted by this designation.

Application of hydraulic fittings Hydraulic fittings play a critical role in various applications where hydraulic systems are utilized. These fittings provide the necessary connections and interfaces for hydraulic components, allowing for the proper functioning and operation of hydraulic systems. Some common applications of hydraulic fittings include: 1. Construction Machinery: Hydraulic fittings are extensively used in construction machinery such as excavators, loaders, bulldozers, and cranes. They connect hydraulic hoses, cylinders, valves, and other components to enable precise control of the equipment's movements, power transmission, and lifting capabilities. 2. Agricultural Equipment: Hydraulic fittings are essential in agricultural machinery like tractors, harvesters, and sprayers. They facilitate the connection of hydraulic hoses and cylinders, enabling functions such as steering, lifting and lowering implements, controlling hydraulic motors, and adjusting equipment settings. 3. Industrial Machinery: Hydraulic systems are widely used in various industrial machinery applications. Hydraulic fittings are integral in equipment like presses, machine tools, injection molding machines, and material handling systems. They enable fluid power transmission and control, allowing for precise movements, force generation, and operational efficiency. 4. Mobile Equipment: Hydraulic fittings are crucial in mobile equipment such as forklifts, aerial work platforms, and mobile cranes. They connect hydraulic components and systems, enabling tasks like lifting, tilting, extending, and steering, providing stability, and ensuring safe and efficient operation. 5. Transportation and Automotive: Hydraulic fittings are employed in the hydraulic systems of vehicles, including cars, trucks, buses, and specialized vehicles. They are used in applications such as power steering, braking systems, suspension systems, and hydraulic lifts for vehicle maintenance and service. 6. Manufacturing and Automation: Hydraulic fittings find application in manufacturing processes and automation systems. They are essential in hydraulic power units, actuators, valves, and manifolds that control various industrial processes, including material handling, assembly lines, metal forming, and robotics. 7. Marine and Offshore: Hydraulic fittings are utilized in marine and offshore applications such as ship steering systems, hydraulic winches, cranes, and hydraulic power packs. They provide reliable connections for hydraulic lines, ensuring smooth and efficient operation in challenging marine environments. These are just a few examples of the wide-ranging applications of hydraulic fittings. The specific fittings used may vary depending on factors like system pressure, flow rates, temperature, environment, and compatibility with hydraulic fluids. It's important to select fittings that meet the requirements of the specific application to ensure proper functionality, reliability, and safety of the hydraulic system.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

Raydafon., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
