Product Description

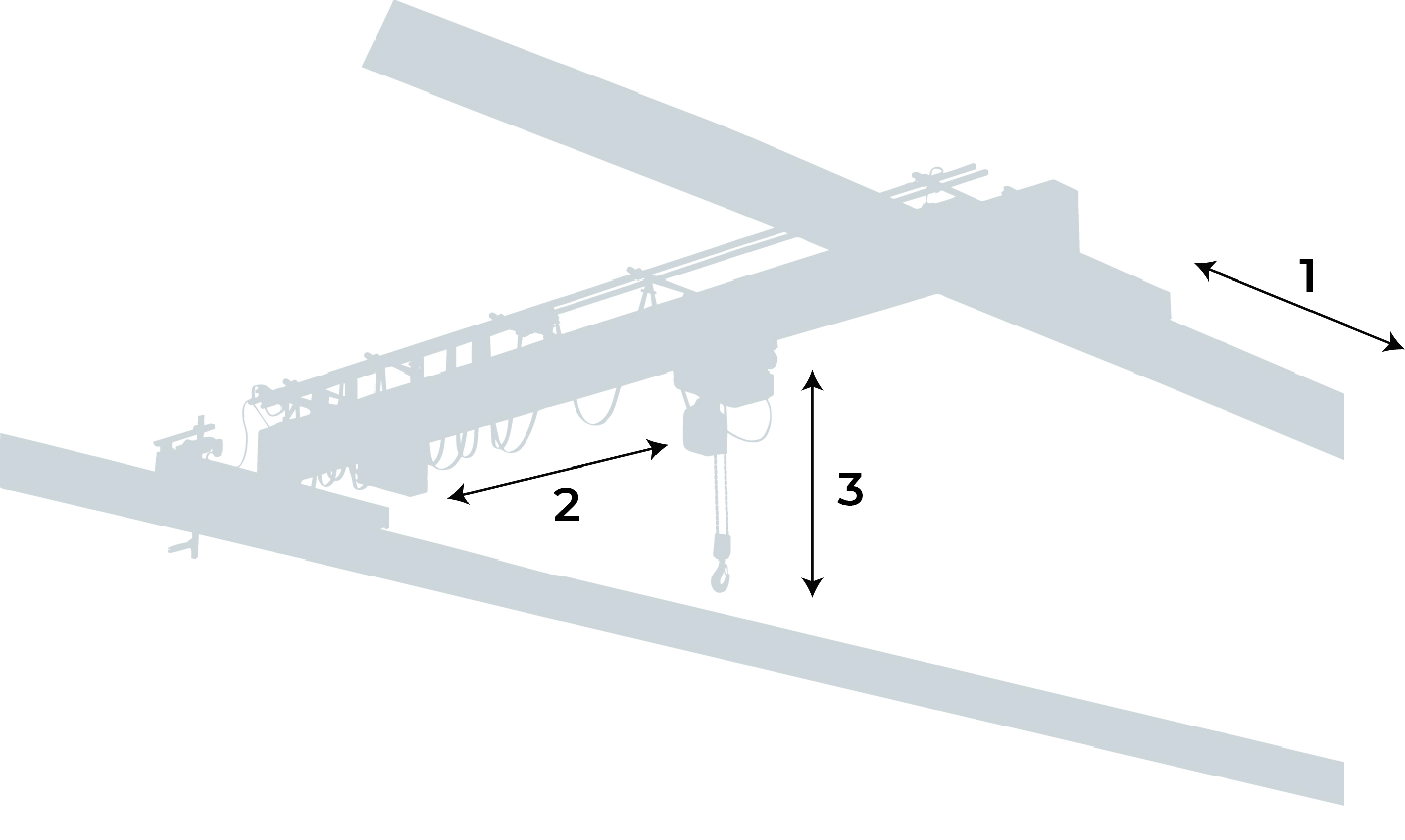

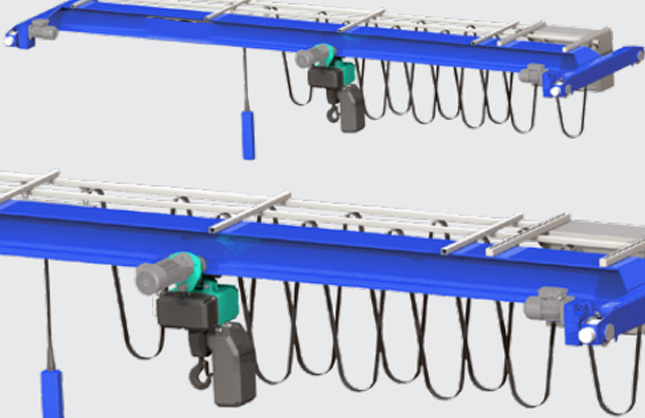

Where are Gearboxes on the overhead Crane hoist?

1.Trolley (Cross Travel) Mechanism

The trolley drive on an overhead crane moves the hoist along the bridge girder horizontally. A gearbox is used here as well to convert the high-speed motor rotation into the necessary low-speed, high-torque motion that drives the wheels or rollers to move the trolley across the crane’s bridge.

2. Bridge Travel (Longitudinal Travel) Mechanism

This is the part of the crane that enables the entire bridge to travel along the runway beams. Similar to the trolley mechanism, there's a gearbox attached to the motor that controls longitudinal movement. It adjusts the motor's speed to provide smooth and powerful propulsion along the length of the crane's track.

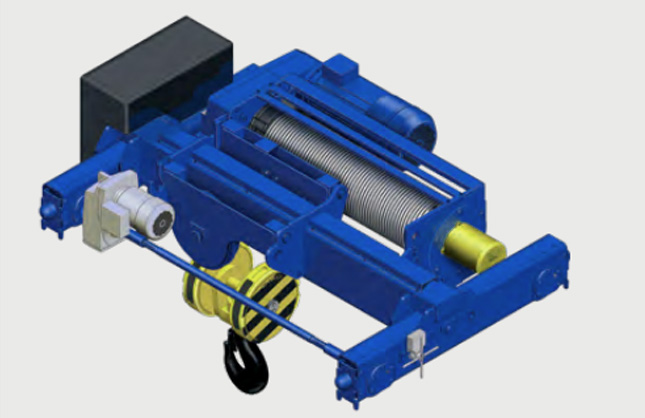

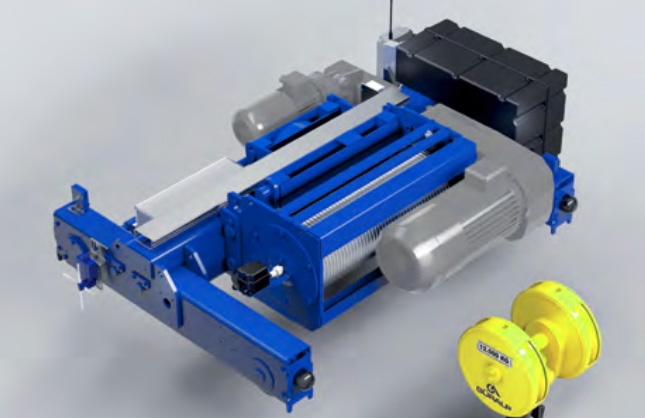

3. Lifting or Hoisting Mechanism

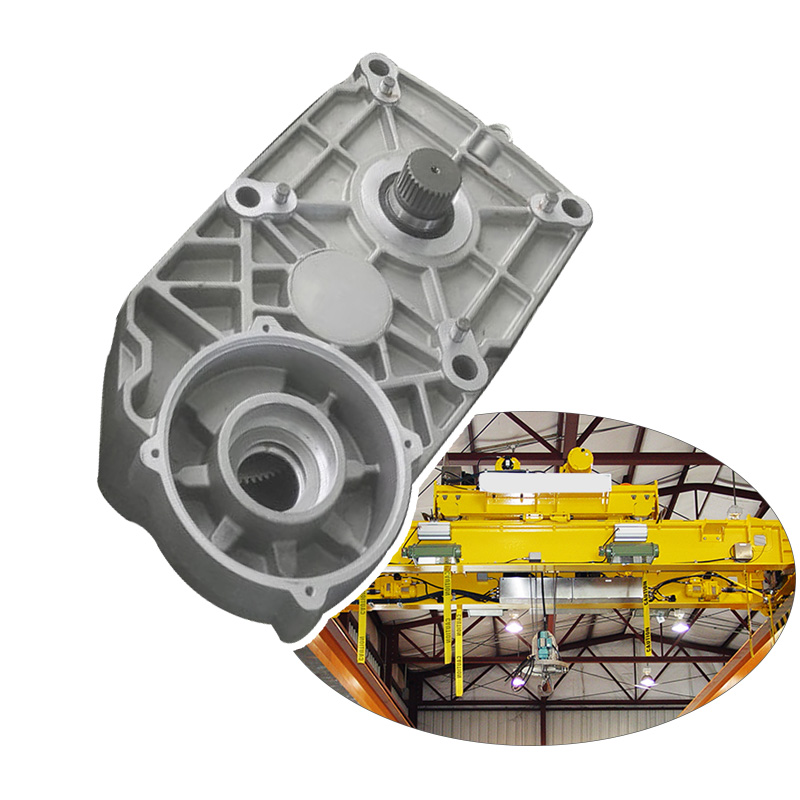

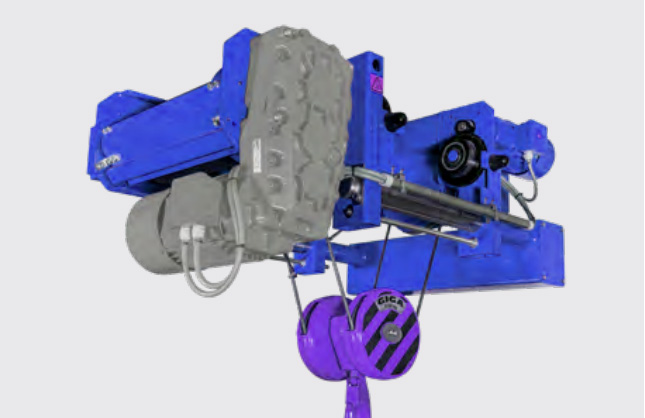

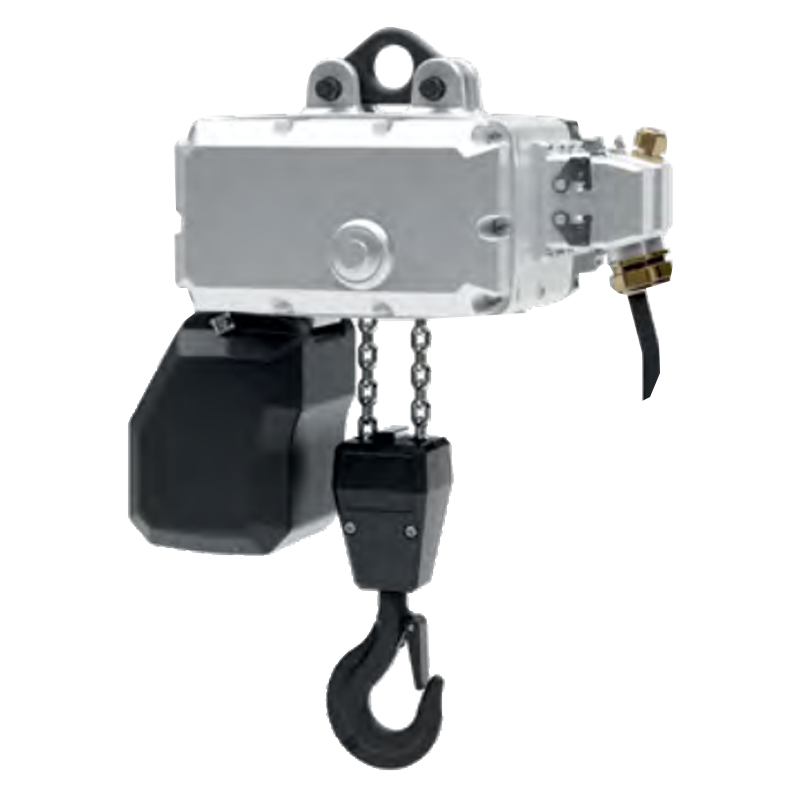

The hoist gearbox is a crucial component in the lifting mechanism of the crane. It's connectedto the electric motor and reduces the high-speed rotation from the motor to a lower speed but higher torque output to lift and lower heavy loads safely and precisely. The hoist gearbox usually works together with a brake system and a wire rope drum or chain hoist.

Safe, Reliable, and Strong

Based on your load specifications, lifting speed, and FEM level, our lifting technical experts will provide you with the best configured drive system. The FEM level mainly emphasizes the quality of the driving device. Under the most competitive conditions, the drive device you choose will have a longer service life. Even outside of our regular product portfolio, you can collaborate and communicate with us. Even in different voltage conditions and harsh usage environments, powerful drives can operate reliably and safely. Adopting soft start and dynamic start curve to ensure larger start Boost and maximum torque.

*Motor type*	12/2-pole dual speed or variable frequency operation
*Rated output power*	up to 38 kW
*Gearbox type*	3-stage reduction, aluminum casing, parallel shaft gearbox can be directly installed with the drum
*Lifting speed*	4-15 m/min at 4/1 pulley ratio
*Safe workload*	3.2 to 40 tons
*Protection level*	IP54 (option IP65)
*Cooling method*	self cooling or forced cooling
*Design*	design based on FEM
*Brake*	Double sided friction safety brake
*Brake*		brake, high-speed excitation rectifier block, function and wear monitoring microswitch Optional

Raydafon specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.
The company provides a reliable gurantee for the product' s quality by advanced inspection and testing equipment. professional technical team, exquisite processing technology and strict control system.
In recent years, the company has been developing rapidly by its rich experience in production, adcanced managemant system, standardized management system, strong technical force. We always adhere the concept of survial by quality, and decelopment by innovation in science and technology.
Raydafon Group is willing to work with you hand in hand and create brilliance together!

Grinding Workshop

CNC Teeth Machine

CNC Lathe Workshop

Figuring Center

CNC Workshop

Heat Treatment Machine

3D Measurement Machinery

Gear Teeth Profile Test Machines

Heat Treatment Workshop

Tooth Profile Workshop

Material available

Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Surface treatment

Blacking, galvanization, chroming, electrophoresis, color painting, ...

Heat treatment

High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
