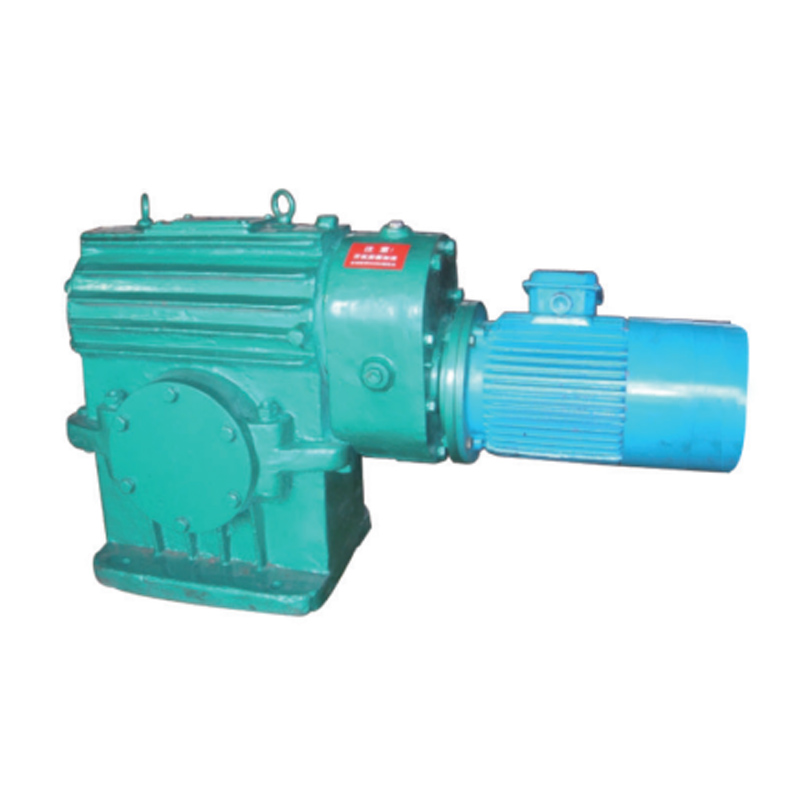

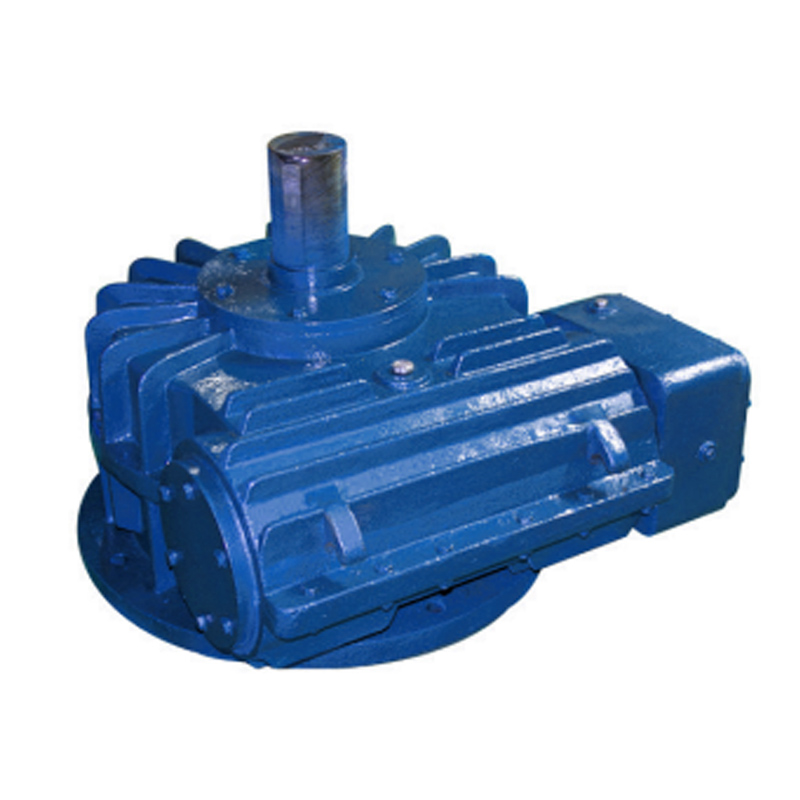

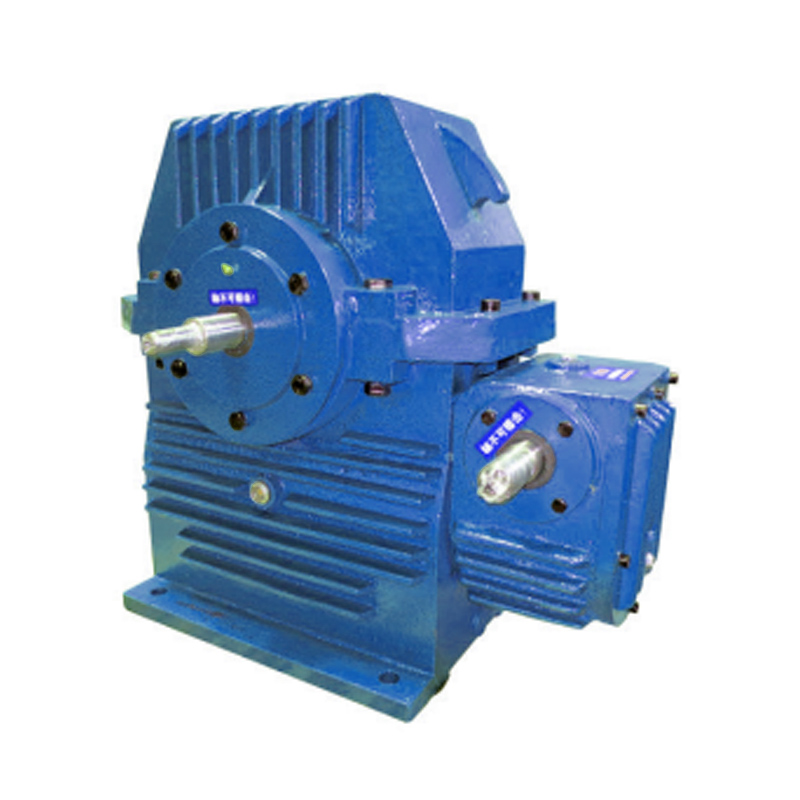

Vietnam Factory ODM Customizable GCW Series Double Stage Worm Gear Box Speed Reducer round Cyclind Design

GCWUGCWSGCWOThe ZC1 double stage worm and gear-worm decelerator conform to national stand ard JB/T008-93.The reducers are applied in metallurgy, mining, craning, transportation, chemical industry, building, construction andlight industry, The input shaft rotating speed is less than 1500r/min and the......

Send Inquiry

Product Description

GCWU

GCWS

GCWO

The ZC1 double stage worm and gear-worm decelerator conform to national stand ard JB/T008-93.The reducers are applied in metallurgy, mining, craning, transportation, chemical industry, building, construction andlight industry, The input shaft rotating speed is less than 1500r/min and the ambient temperature is t40"c. pleasenote the lubricating oil must be heated up to 0'c, if the temperature is below that, Theforward and backward areapplicable.

Model

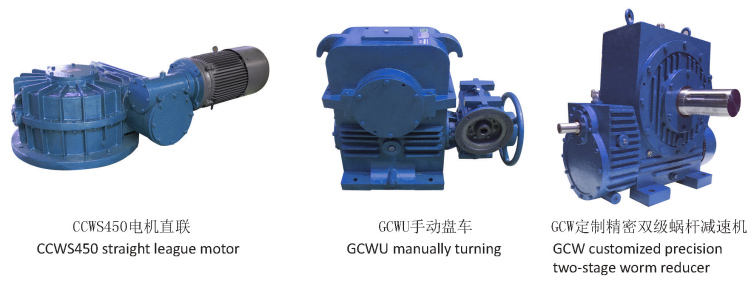

CCWU-low speed level worm under worm two-stage worm reducer;

CCWS - low speed level worm in the side worm two-stage worm reducer;

CCWO -low speed level worm on worm two-stage worm reducer;

GCWU -low speed level worm undergear- worm reducer;

GCWS -low speed level worm in the sidegear- worm reducer;

GCWO - low speed level worm ongear- worm reducer;

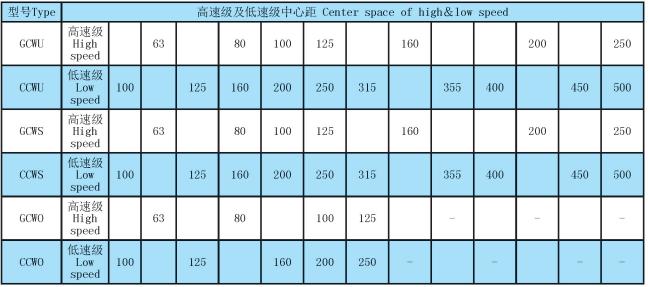

Center space and combination of high & low speed reducer

Table of double stage worm reducer nominal transmission ratio

Table of gear-worm reducer nominal transmission ratio
