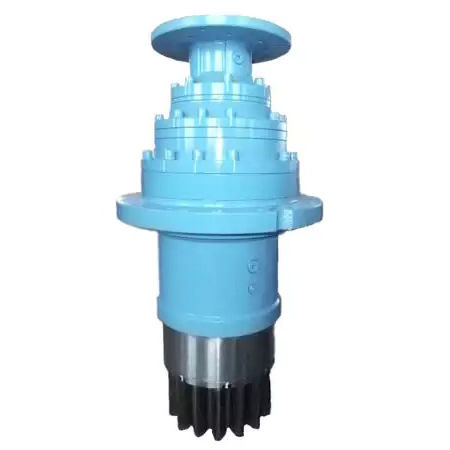

Vietnam Factory Planetary Slewing Gear Gearbox Replacement of Zollern ZHP3.13 ZHP3.15 ZHP3.19 ZHP3.20 ZHP3.22 ZHP3.24 ZHP3.25

Rotary gear box is mainly used for turning gear rings and large-diameter wear-resistant rotary bearings. For example, cranes have proven to be in the worst application conditions. The rotary gearbox is based on modular design and has a larger delivery range (motor, coupling, brake). In each applicat......

Send Inquiry

Product Description

The advantage is

*Compact size *Long service life *Modular design of gear mechanism *Easy to maintain *High performance *functional design

With these functions, machine designers can install equipment and achieve economic benefits. Solutions can be found even in confined space conditions.

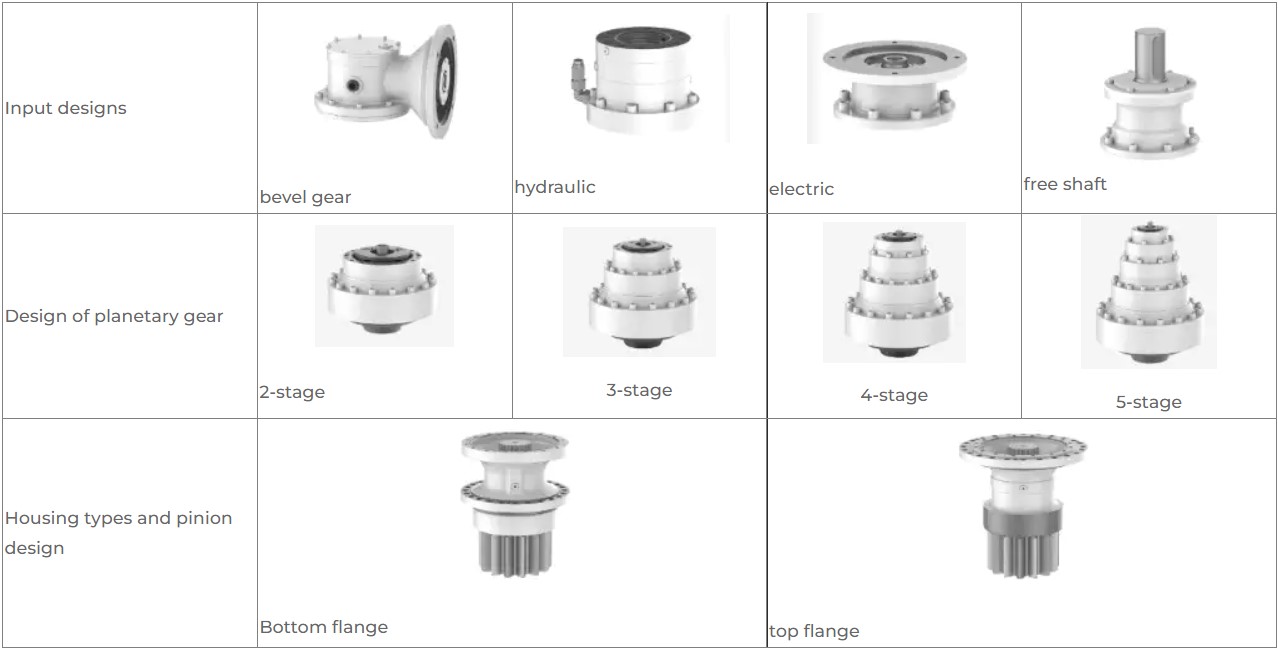

Modular Gear design of Slewing Gear

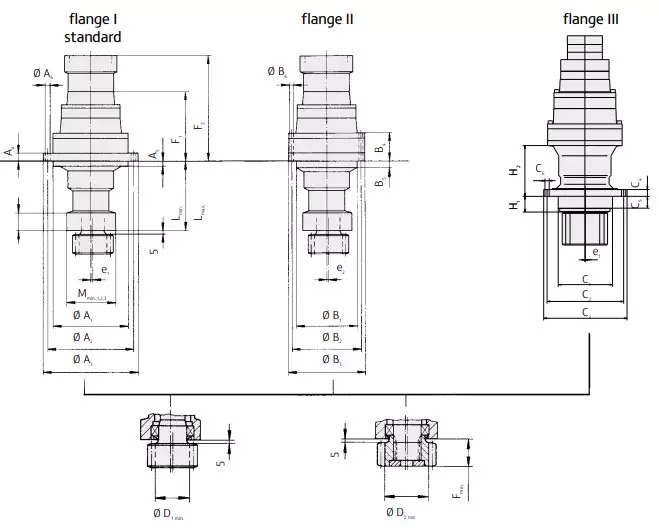

Parameters of Slewing Gear

How To Select a Complete planetary gearbox

Input Component	Gear Reductions (co-axial stage 1-5 ,right angle 1-4 . )	Output Component	Fittings
1: AC electric motor 2: NEMA or IEC motor 3: NEMA or IEC motor adapter flange 4: the Solid input shaft 5: Solid input shaft with the fan	6:Right angle reduction stage 7: Planetary reduction stage 8: Worm/planetary combination 9: Bevel helical planetary combination	10: Flanged output/ Footed output-Solid shaft 11: Flanged output/ Footed output-Male spline shaft 12: Flanged output/ Footed output- Female spline shaft 13: Flanged output/ Footed output- 14: Flanged output/ Footed output-Pinion 15: Shaft Mount output for shrink disc	16: Flange 17: Pinion gear 18: Sleeve coupling 19: Endplate 20: Splined bar 21: Shrink disc

Application of Slewing Gear
Potential applications

*Mobile crane *Material and service elevator *Marine and deck cranes *Shipyard and port cranes *Container gantry *Yaw and pitch drive of wind turbines *Construction cranes and conveyors *Loading and cargo handling cranes *Rescue and rescue vehicles *Offshore crane *Access platform

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
