Product Information Product Information Please tell us what you need: 1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on 2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1 3, Confirm the input hole a......

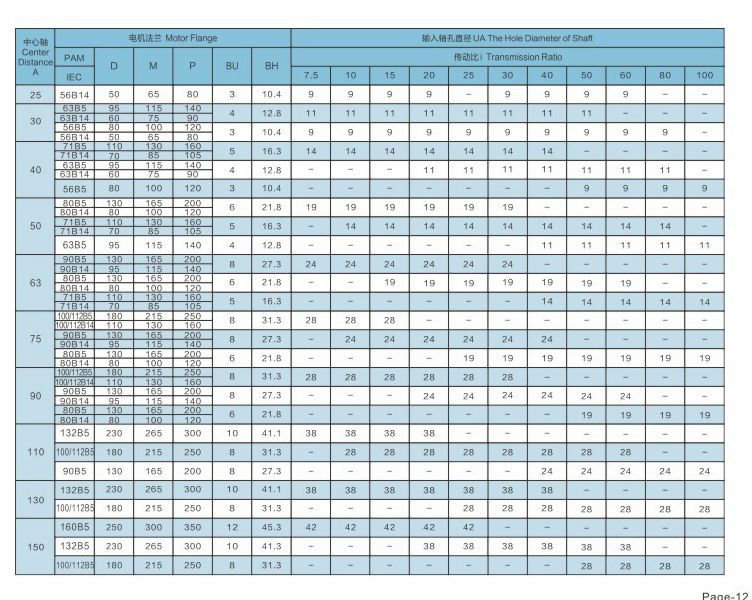

1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on 2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1 3, Confirm the input hole and output size: please refer to the detailed size table for the specific size 4, Confirm the size of motor flange: there are two kinds of large flange (B5) and small flange (B14), choose one. 5, Confirm the diameter of motor shaft hole: 11mm, 14mm, 19mm, 24mm, 28mm, 38mm 6, Confirm the motor specification: the standard configuration is a three-phase 380V motor with a speed of 1400rpm. If necessary: single phase 220 V motor, variable frequency motor, brake motor, 6-level motor, the price is determined separately.

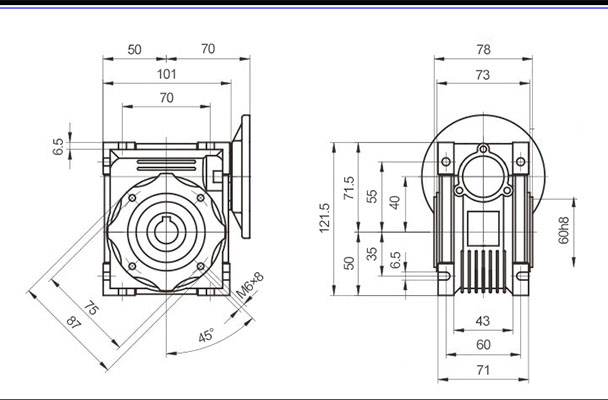

NMRV040:
Type

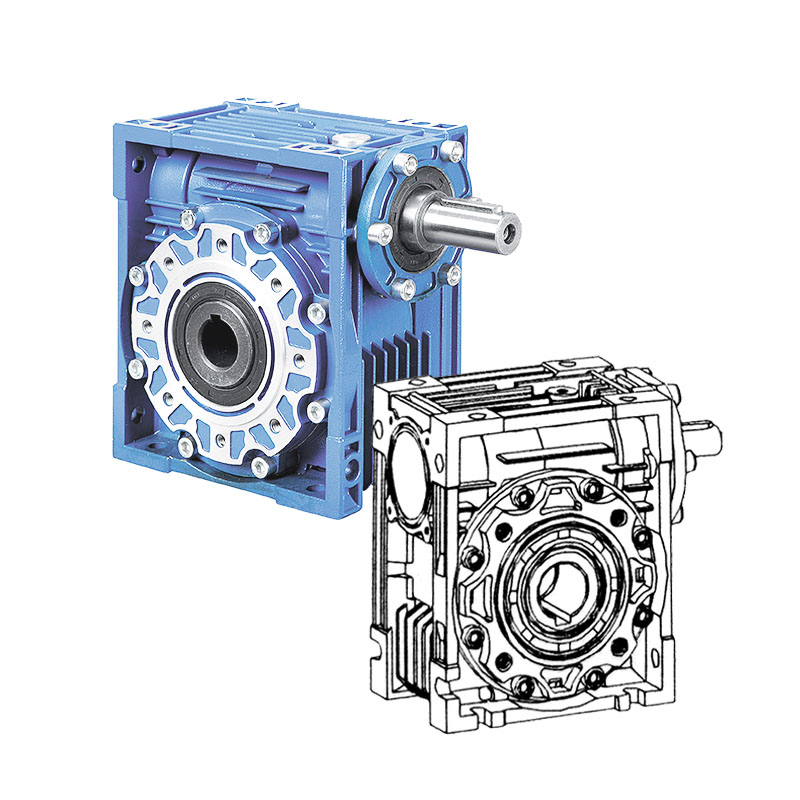

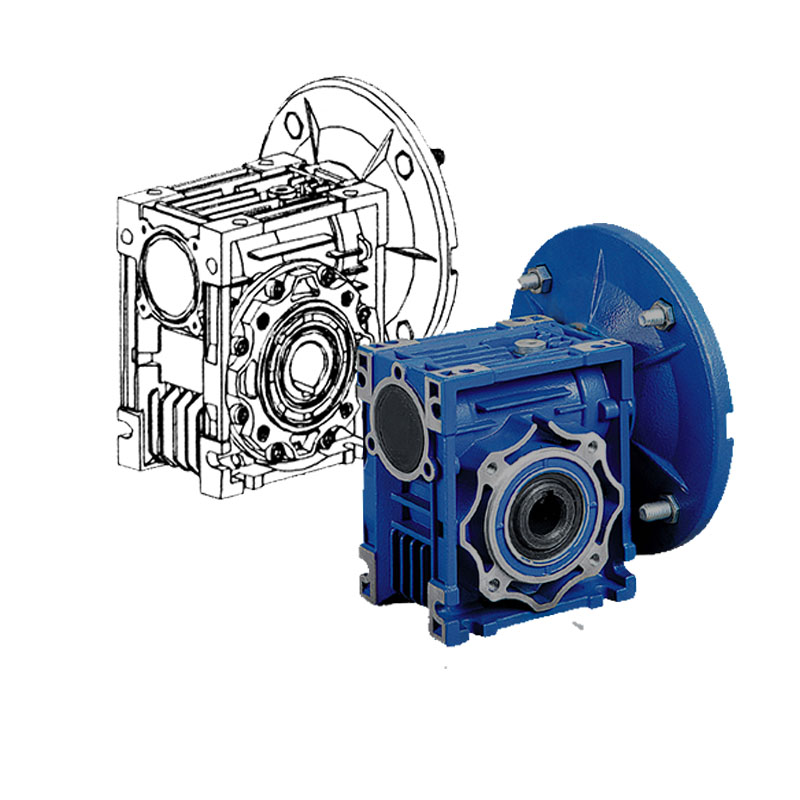

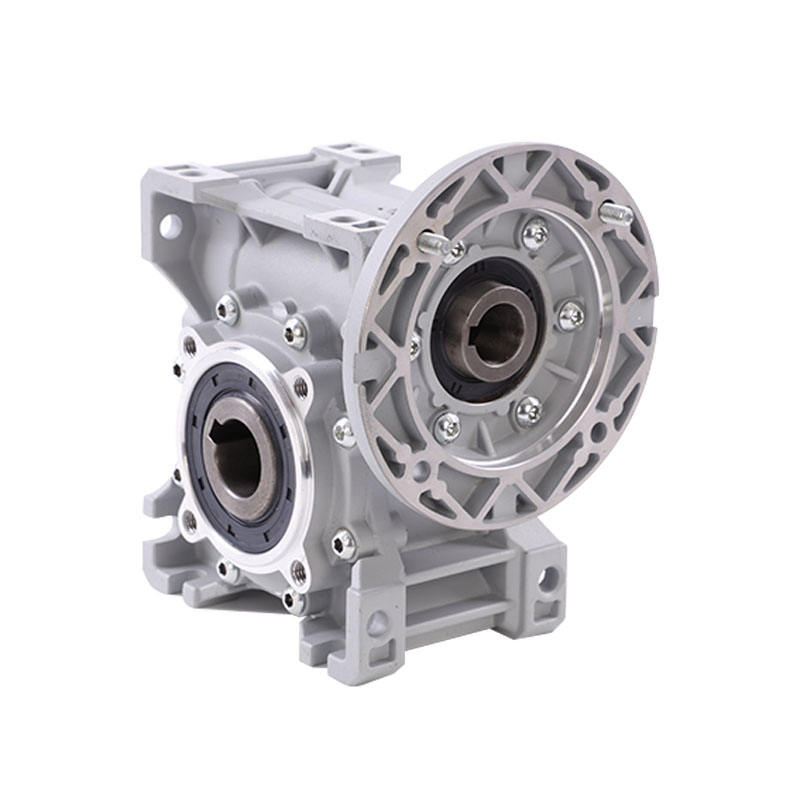

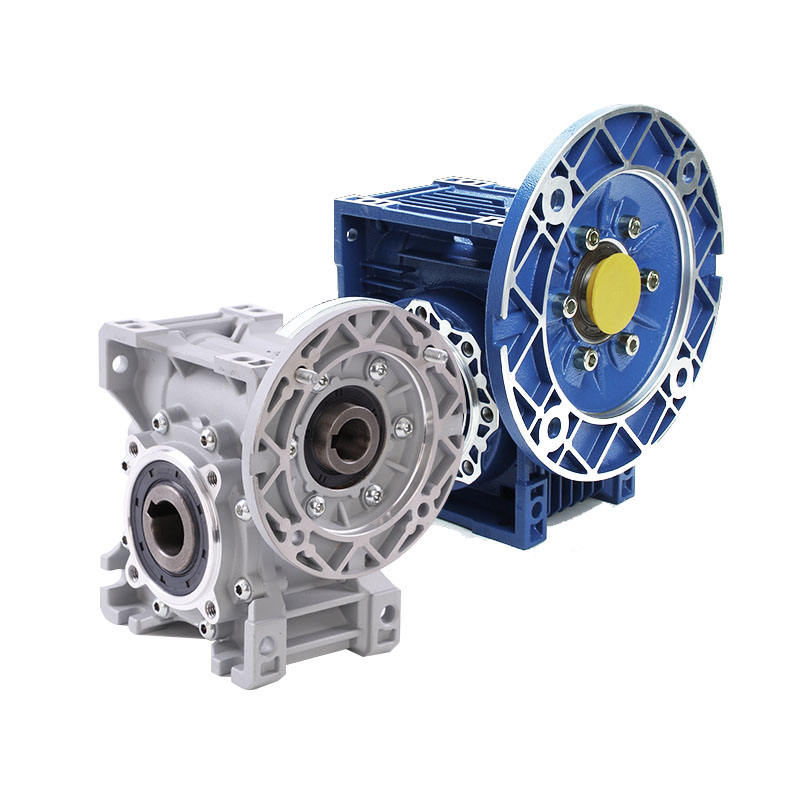

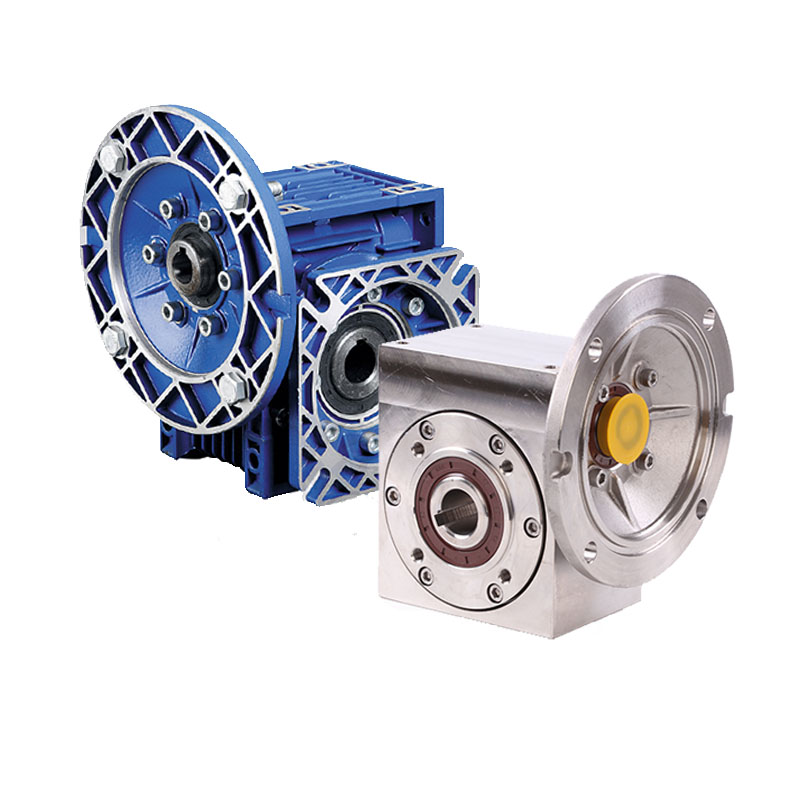

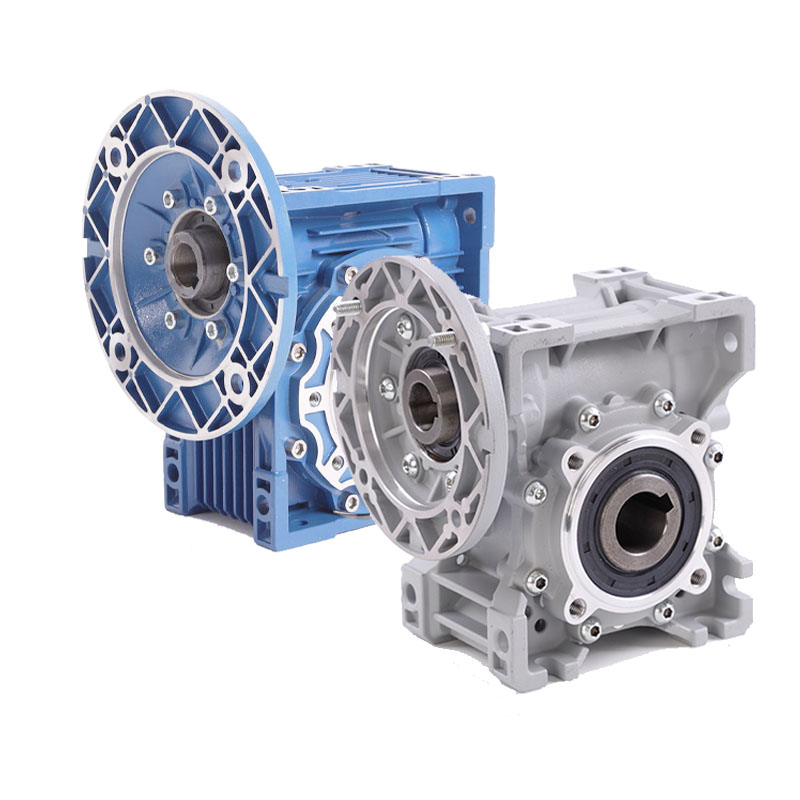

Worm Gear Speed Reducer / Gearbox / Reductor
Model
NMRV25/30/40/50/63/75/90/110/130/150/185
Color
Customized Color
Packing
Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
If you have any enquiry about quotation or cooperation, please feel free to email us at [email protected] or use the following inquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
