Vietnam Factory Sale Various Cylinder Parts Adjustable Lock Nut Branch Tee-TEE-M Hydraulic Fitting Tariff-free

Examples of hydraulic fittings commonly used in industrial machinery1.Straight Thread O-ring Fittings: Also known as SAE fittings, these fittings have a straight thread with an O-ring seal. They provide a secure and leak-free connection and are commonly used in hydraulic systems where high pressures......

Send Inquiry

Product Description

Examples of hydraulic fittings commonly used in industrial machinery

1.Straight Thread O-ring Fittings: Also known as SAE fittings, these fittings have a straight thread with an O-ring seal. They provide a secure and leak-free connection and are commonly used in hydraulic systems where high pressures are encountered. 2.JIC (Joint Industry Council) Fittings: JIC fittings feature a 37-degree flare that creates a metal-to-metal seal. They are widely used in industrial machinery and provide a reliable connection that can handle high pressures and vibration. 3.BSP (British Standard Pipe) Fittings: BSP fittings have tapered threads and are commonly used in European and British hydraulic systems. They provide a reliable seal and are available in various sizes and configurations to suit different applications. 4.Metric Fittings: Metric fittings are designed for use in hydraulic systems that follow metric standards. They feature metric threads and are widely used in industrial machinery globally. 5.Quick Disconnect Couplings: Quick disconnect couplings, also known as quick couplers, allow for fast and easy connection and disconnection of hydraulic components. They are commonly used in applications where frequent connections and disconnections are required, such as in manufacturing processes and mobile equipment. 6.Tube Fittings: Tube fittings, such as compression fittings and bite-type fittings, are used to connect hydraulic tubing. They provide a secure connection without the need for welding or flaring and are often used in industrial machinery where rigid tubing is employed. 7.Manifold Fittings: Manifold fittings are used in hydraulic manifolds or valve blocks. They provide multiple connections in a compact design, allowing for efficient routing and distribution of hydraulic fluid within the system. 8.Elbow Fittings: Elbow fittings have a 90-degree or 45-degree bend, allowing for changes in direction in hydraulic systems. They are used to route hydraulic lines around obstacles or to optimize space utilization. 9.Cross Fittings: Cross fittings are used to connect four hydraulic lines at right angles to each other. They are commonly used in hydraulic systems where multiple components or lines need to be connected at a single point. 10.Adapter Fittings: Adapter fittings are used to connect different types of hydraulic fittings or components that have different threads or configurations. They provide compatibility and facilitate the connection between mismatched components

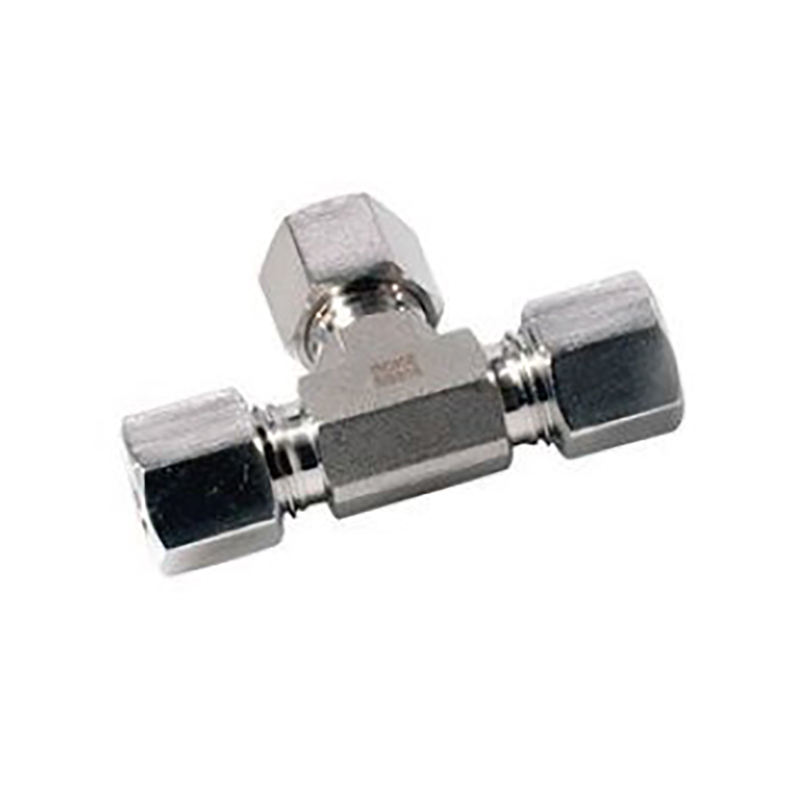

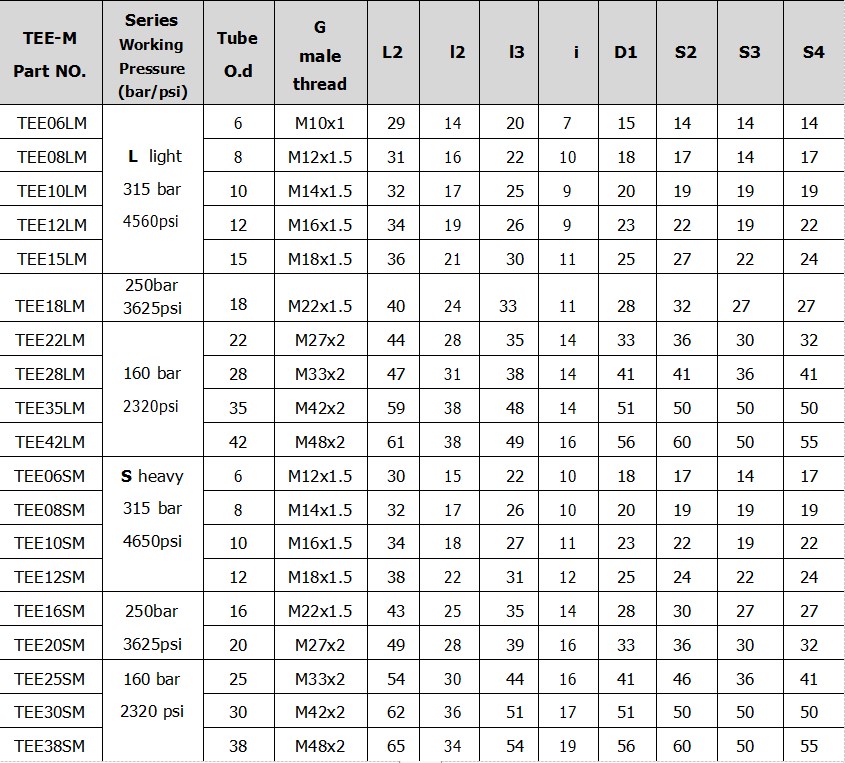

Applications of an adjustable lock nut branch tee fitting: 1. Adjustable Lock Nut Design: The adjustable lock nut branch tee fitting is equipped with a lock nut mechanism that allows for easy adjustment and secure tightening. This feature enables precise positioning and alignment of the fitting during installation and ensures a reliable connection. 2. Branch Tee Functionality: The branch tee design of this fitting allows for the connection of three hydraulic components or lines. It typically consists of one inlet and two outlets, providing the capability to split or divert hydraulic fluid flow in different directions. 3. Adjustable Swivel Feature: The adjustable lock nut branch tee fitting may also include an adjustable swivel feature. This allows for rotational movement, enabling flexibility in positioning the connected hydraulic lines or components. The adjustable swivel feature can help optimize fluid flow, minimize pressure drops, and enhance the overall performance of the hydraulic system. 4. Applications: Adjustable lock nut branch tee fittings can be used in various hydraulic applications where the splitting or diversion of hydraulic flow is required. They are commonly found in hydraulic systems used in industrial machinery, mobile equipment, agricultural equipment, and other applications. The adjustable feature provides convenience during installation, maintenance, and system adjustments. It's important to note that the specific characteristics and applications of the "Adjustable Lock Nut Branch Tee - TEE-M" hydraulic fitting may vary depending on the manufacturer or industry. To obtain accurate and detailed information about this particular fitting, including its technical specifications, pressure ratings, material construction, and recommended applications, it is recommended to consult the manufacturer's documentation or reach out to them directly.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

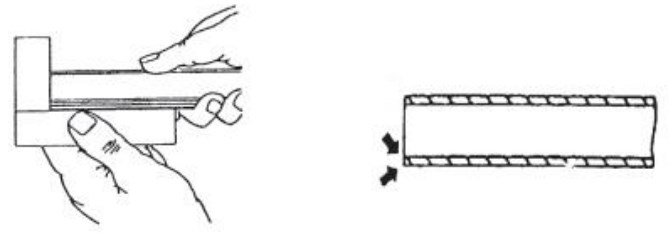

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.

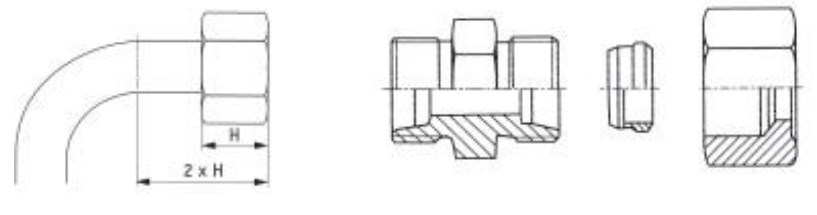

3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly

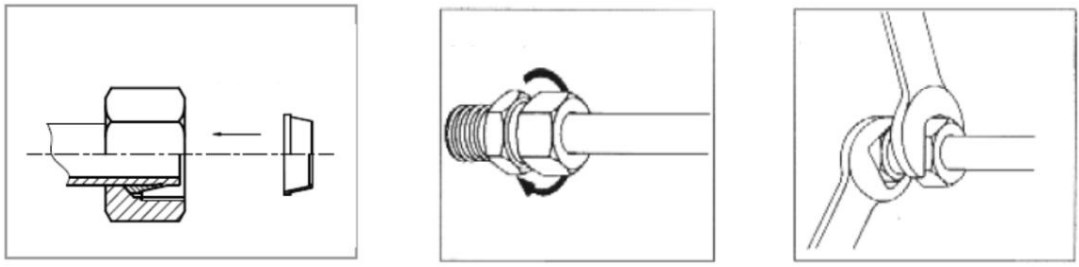

5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

Raydafon., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

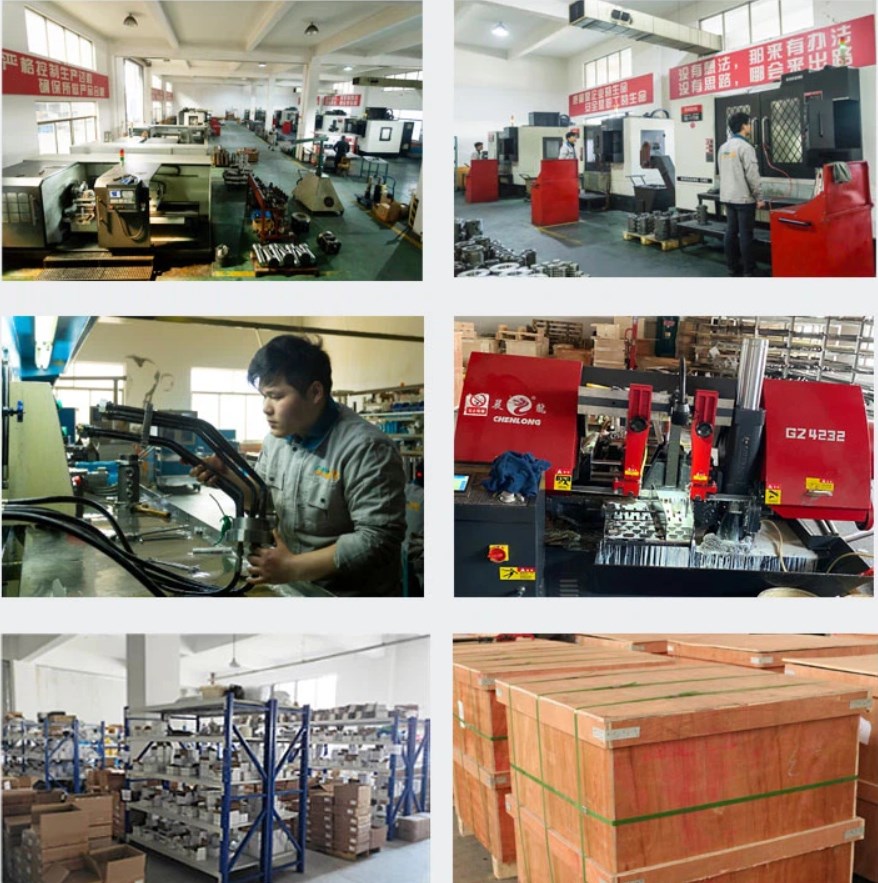

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing
