Vietnam Factory SPB 2 Grooves Cast 2517 Taper Bore Pulley Tariff-free

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

	Belt Section	SPB
	Specification	SPB180-02
	Product Code	CP038655
	Groove Number	2
	Pitch Diameter (P)	180mm
	Outside Diameter (O)	187mm
	Match Bushing	2517
	F	44mm
	L	45mm
	M	1mm
	N	120mm
	Weight(Kg)	5.45

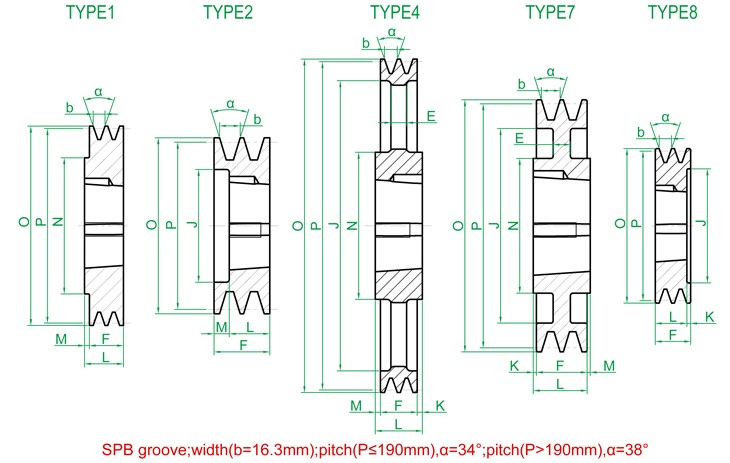

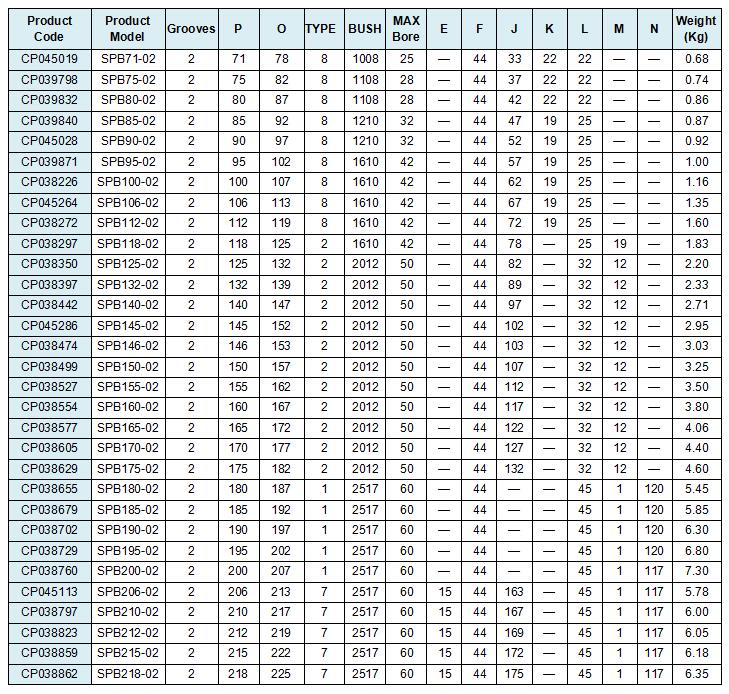

Double V belt pulleys Sizes

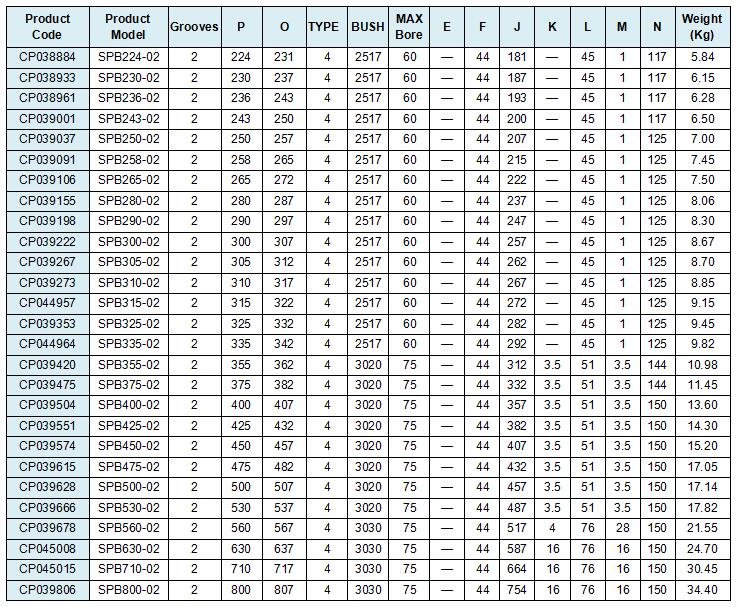

SPB-02 Taper Lock Pulley Specifications

Product Name:V Belt Pulley

Belt Section:SPB

Grooves:2

Equipped with Bush:

European standard bush
	Bush No.	Bore Range (mm)
	1008	10,11,12,14,15,16,18,19,20,22,24,25
	1108	10,11,12,14,15,16,18,19,20,22,24,25,28
	1210	11,12,14,15,16,18,19,20,22,24,25,28,30,32
	1610	14,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42
	1615	14,15,M16,18,19,20,22,24,25,28,30,32,35,38,40,42
	2012	18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50
	2517	20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
	3020	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3030	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75

	3525	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
	3535	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90

Which Pulley should I buy?

Sichuan Dawn Precision Technology Co. Ltd was founded in April 1995. Now we are the professional manufacturer of pulley, bushing , and other mechanical transmission parts. Now we own 45 product patents and 3 technological achievements , management system has integrated ISO9001,TS16949,ISO14001,OHSAS18001.

Heat treatment & surface treatment equipment mainly contains Multi-purpose furnace heat treatment line, pit and box-type furnace , black oxide surface treatment line , black phosphate surface treatment line, pre-treatment processing line, E-coating production line, plating production line,powder coating production line, sewage treatment station and so on.

Please contact us or go to homepage for more product information.

Strong OEM ability will meet all your special needs!

Our main customers are all world famous brands, like: ABB, s, Sati and AC, etc.
