Vietnam Factory SPB 5 Grooves Metric Bore V-Belt Pulleys Tariff-Free Direct Factory Supply

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

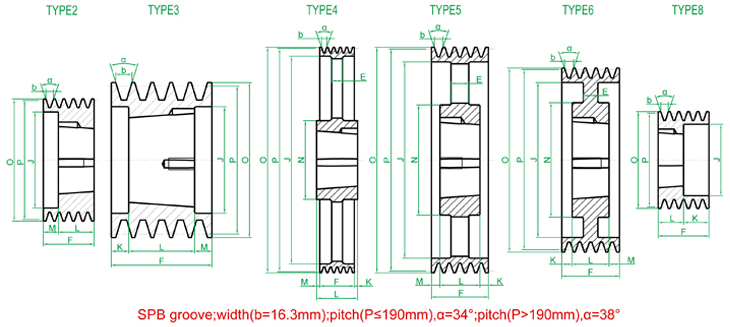

V belt pulleys Drawing & Type

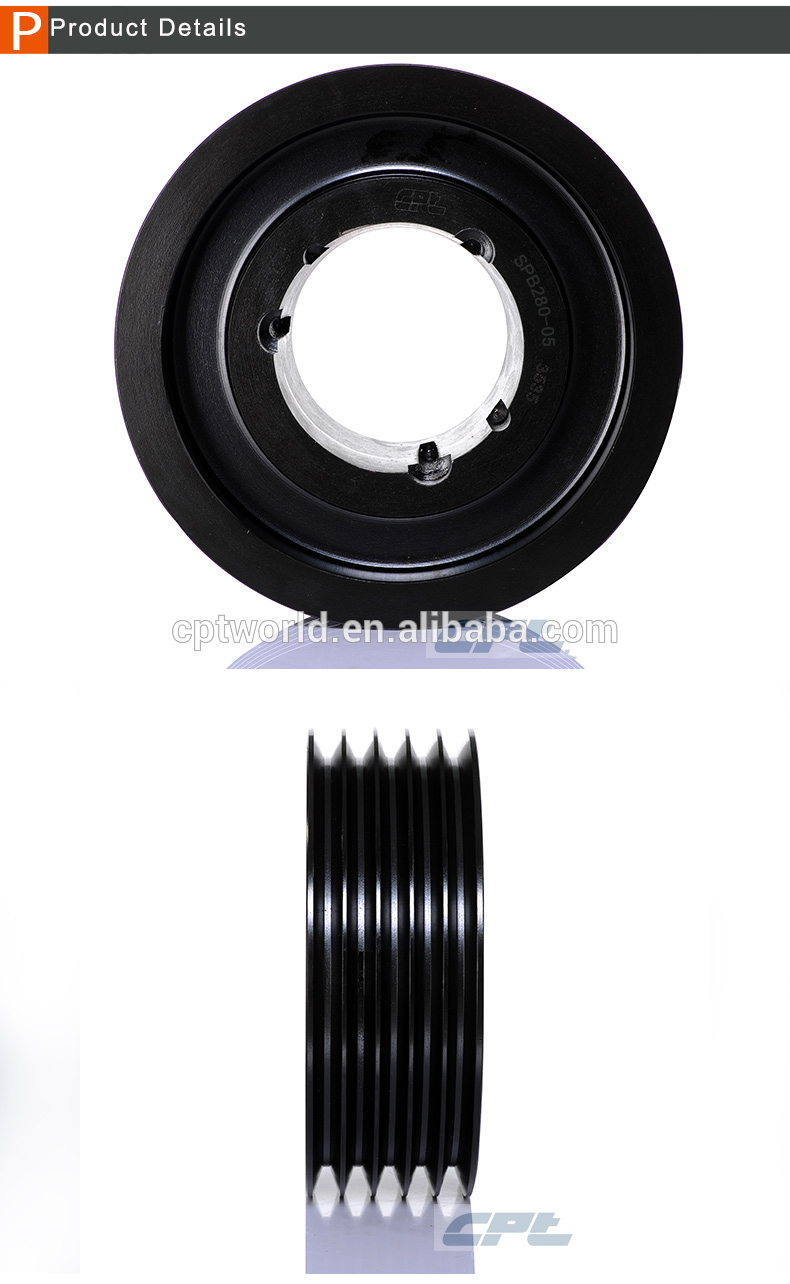

SPB-05 Power Pulley Dimension

Product Name:V Belt Pulley

Belt Section:SPB

Grooves:5

Equipped with Bush:

European standard bush
	Bush No	Bore Range (mm)
	1615	14,15,M16,18,19,20,22,24,25,28,30,32,35,38,40,42
	2012	18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50
	2517	20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
	3020	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75

	3525	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
	3535	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
	4030	40,42,45,50,60,65,70,75,80,85,90,95,100
	4040	40,42,45,50,60,65,70,75,80,85,90,95,100
	4545	55,60,65,70,75,80,85,90,95,100,105,110
	5050	60,65,70,75,80,85,90,95,100,105,110,115,120,125

Pulley Selection Guide

Sichuan Dawn Precision Technology Co. Ltd was founded in April 1995. Now we are the professional manufacturer of pulley, bushing , and other mechanical transmission parts. Now we own 45 product patents and 3 technological achievements , management system has integrated ISO9001,TS16949,ISO14001,OHSAS18001.

Heat treatment & surface treatment equipment mainly contains Multi-purpose furnace heat treatment line, pit and box-type furnace , black oxide surface treatment line , black phosphate surface treatment line, pre-treatment processing line, E-coating production line, plating production line,powder coating production line, sewage treatment station and so on.

Please contact us or go to homepage for more product information.

Strong OEM ability will meet all your special needs!

Our main customers are all world famous brands, like: ABB, s, Sati and a, etc.
