Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

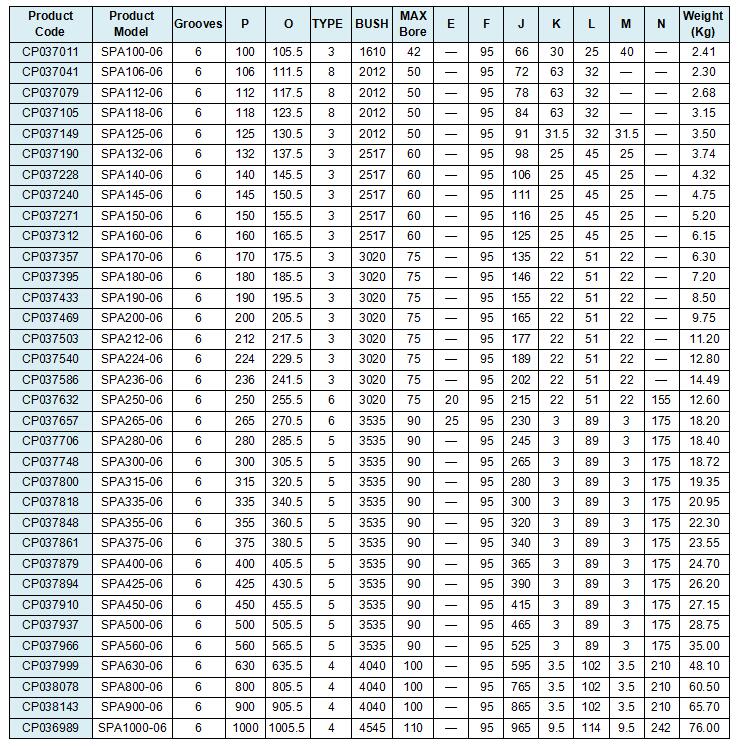

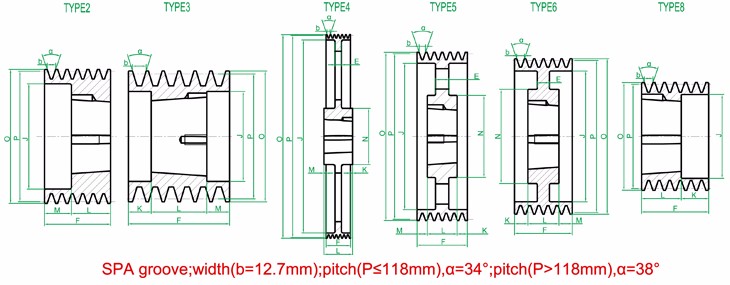

V belt pulleys SPA-06 Drawing

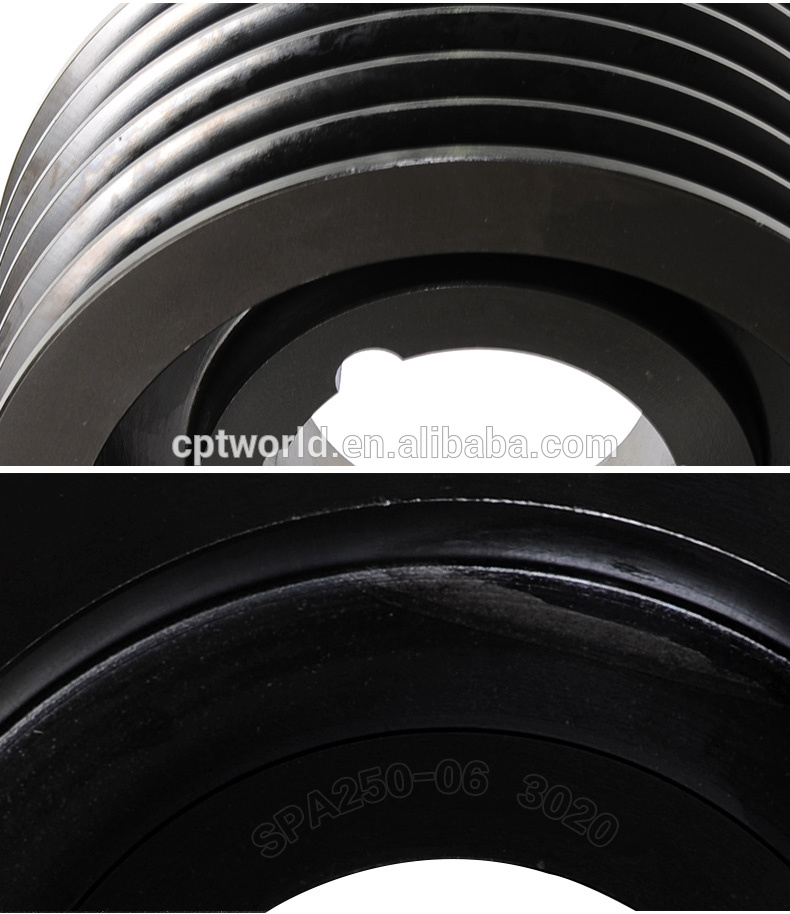

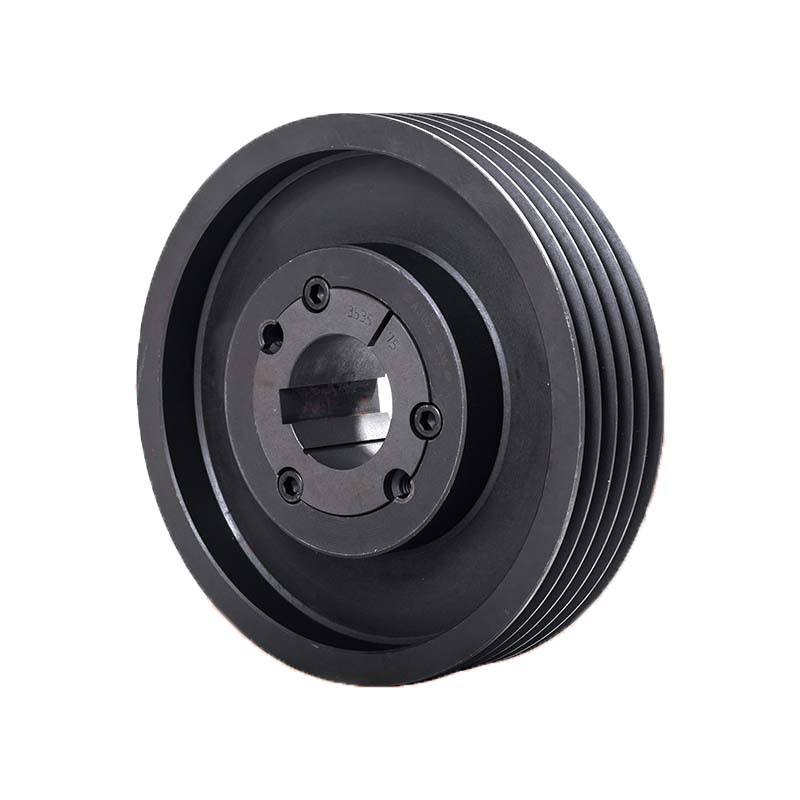

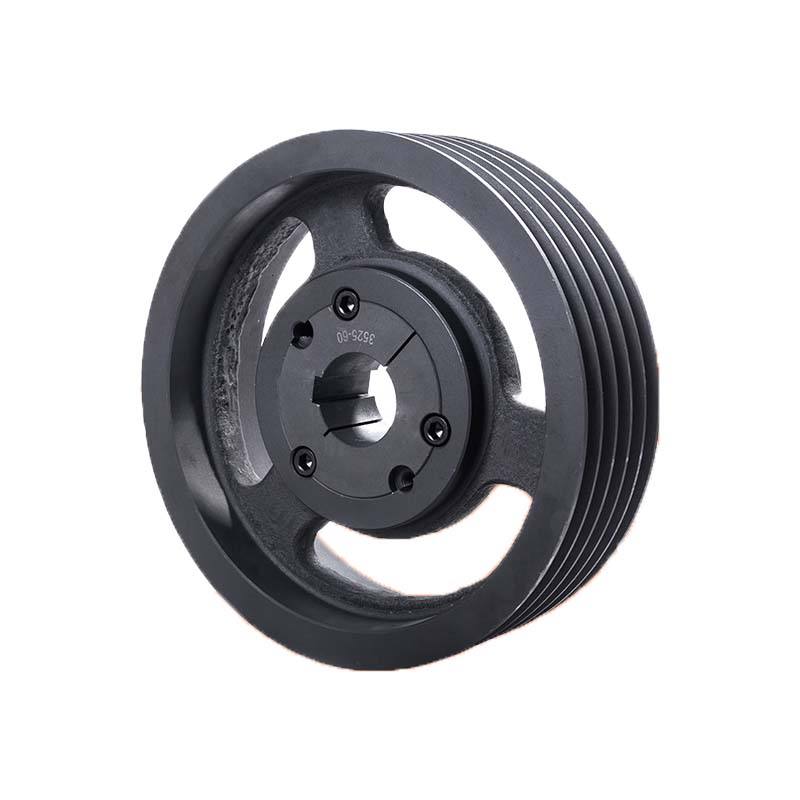

Product Name:V Belt Pulley
Belt Section:SPA
Grooves:6

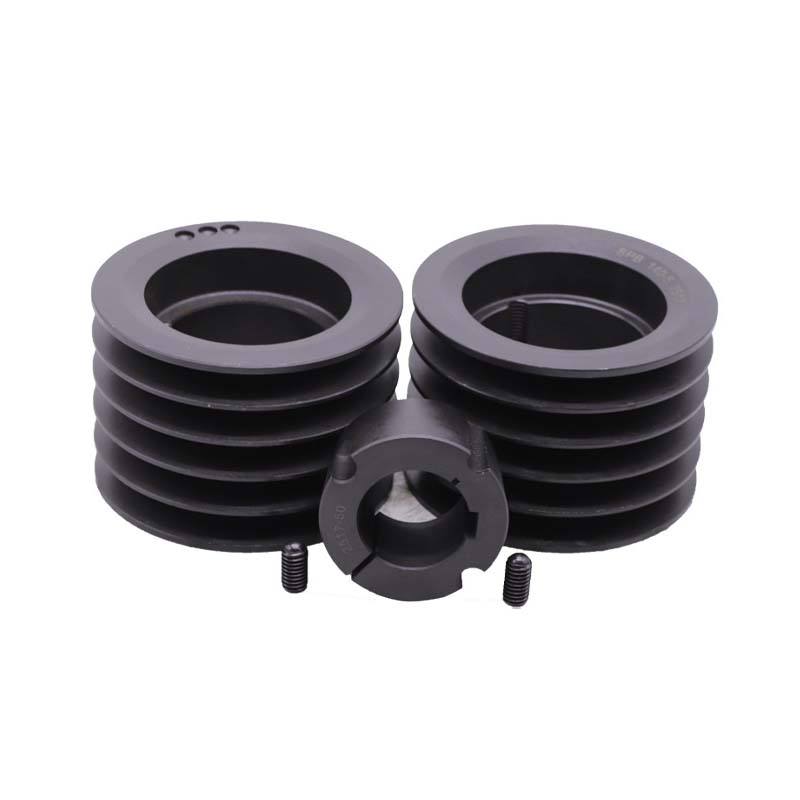

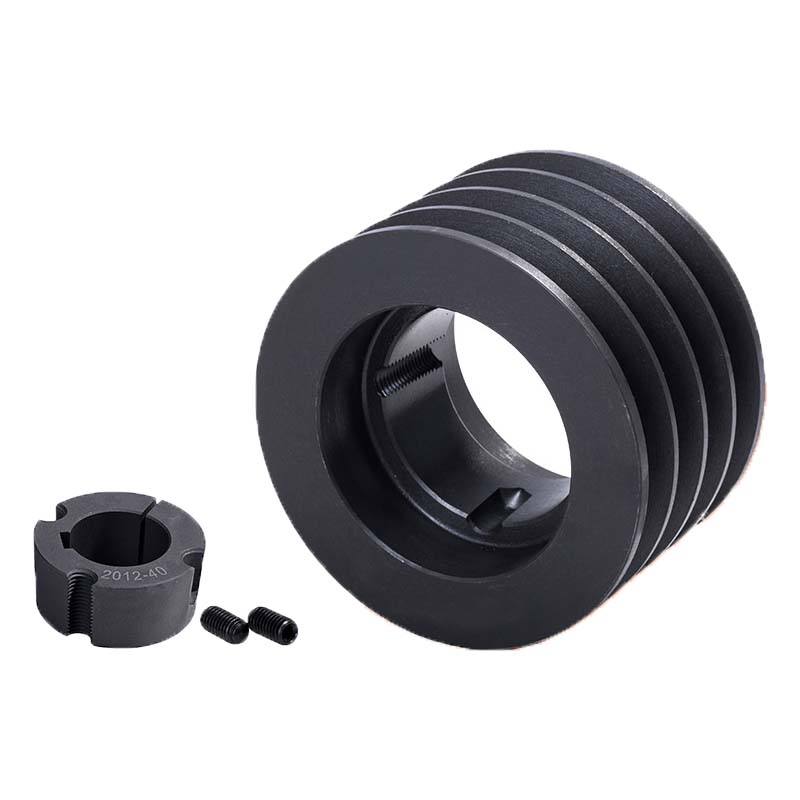

Equipped with Bush:
| European standard bush | ||
| Bush No | Bore Range (mm) | |
| 1610 | 14,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42 | |
| 1615 | 14,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42 | |
| 2012 | 18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50 | |
| 2517 | 20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60 | |
| 3020 | 25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75 | |
| 3030 | 25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75 | |
 | 3525 | 35,38,40,42,45,48,50,55,60,65,70,75,80,85,90 |
| 3535 | 35,38,40,42,45,48,50,55,60,65,70,75,80,85,90 | |
| 4030 | 40,42,45,50,60,65,70,75,80,85,90,95,100 | |
| 4040 | 40,42,45,50,60,65,70,75,80,85,90,95,100 | |
| 4545 | 55,60,65,70,75,80,85,90,95,100,105,110 | |
CPT Pulley Features:

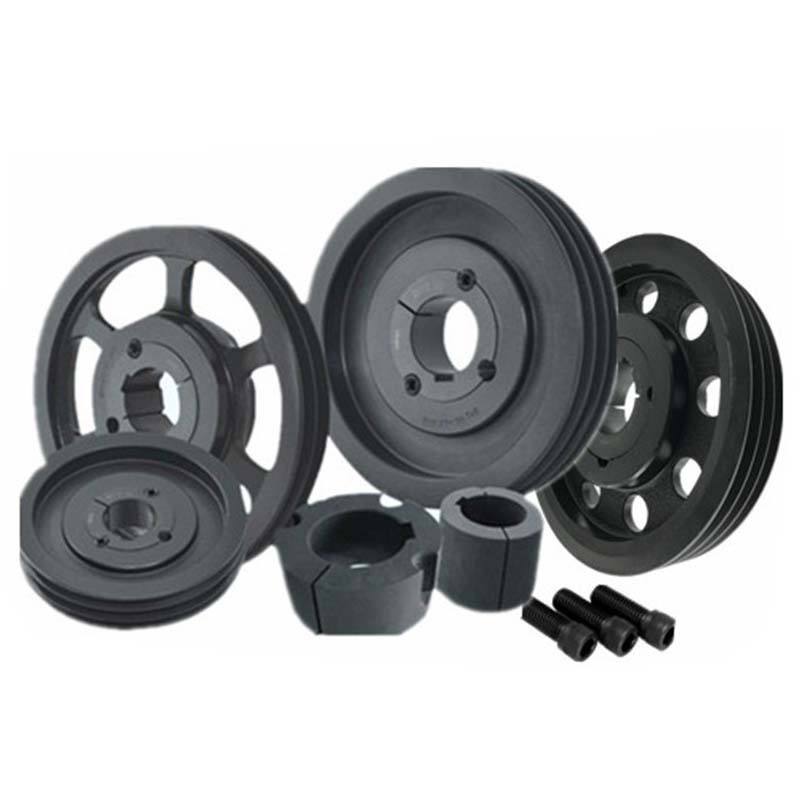

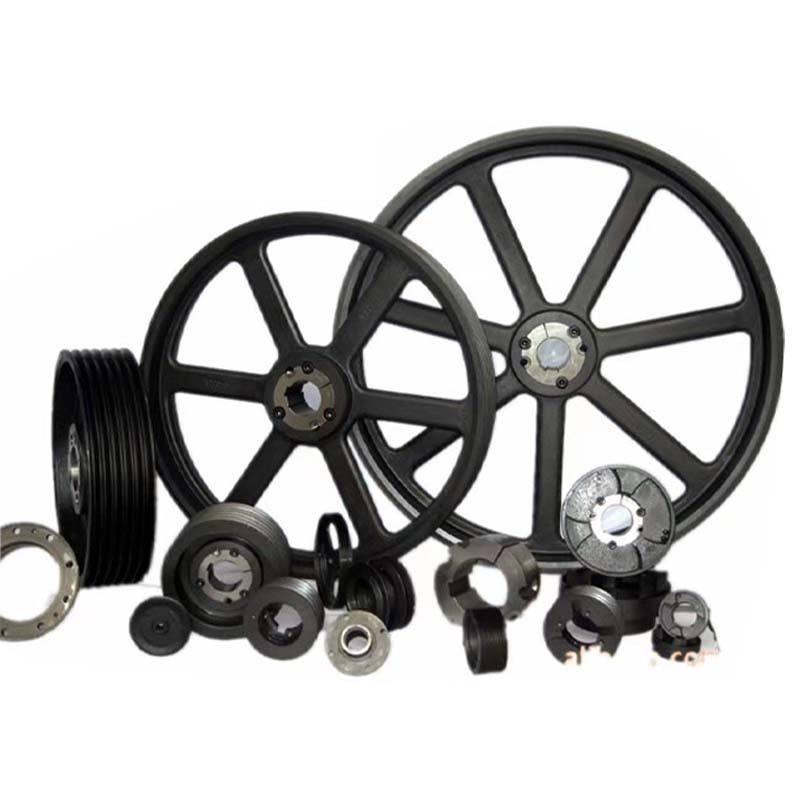

| CPT Pulley Range | power transmission grooved v belt pulleys (U groove pulley), timing pulleys, poly-v belt pulleys, adjustable pulleys |
| Material | steel, cast iron, ductile cast iron, alloy |
| Bore Type | prebore, finished bore, pilot bore, taper bore, bore with keyway |
| Pulley Type | solid, web, spoke |
| Pulley Groove Number | 1 ~ 12 |
| Outside Diameter | 10mm ~ 1900mm |
| Belt Section | SPA, SPB, SPC, SPZ metric pulleys A, B, C, D, TA, TB, TC, 3V, 5V, 8V inch pulleys |
| Balance | Static balance, Dynamic balance |
| Surface Treatment | Black electrophoresis, Grey electrophoresis, Black phosphating, Black oxide, Powder coating |
| Marking Method | Laser marking, Pneumatic marking |
Please contact us or go to homepage for more product information.
Strong OEM ability will meet all your special needs!
Our main customers are all world famous brands, like: ABB, s, Sati and a, etc.
