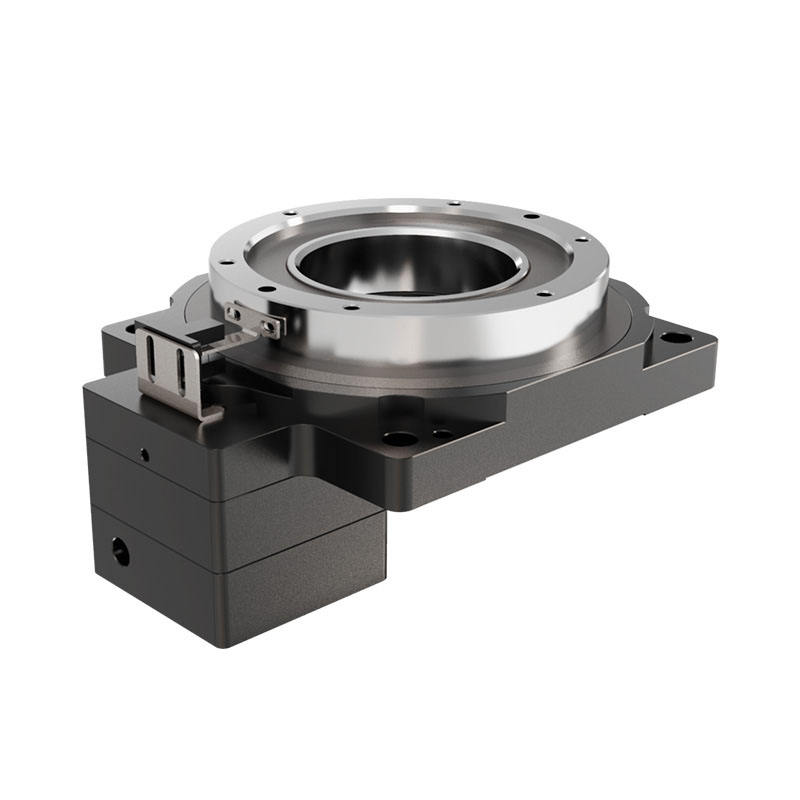

Vietnam Factory TH085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

Send Inquiry

Product Description

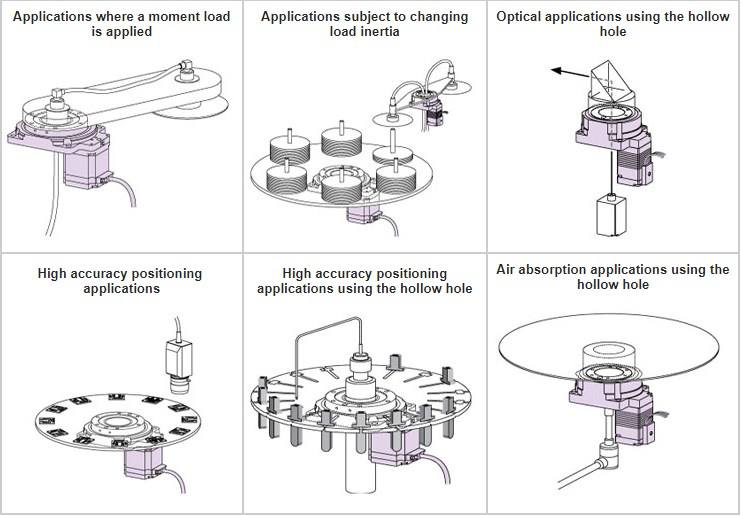

The TH085 Hollow Rotary Actor supports multiple driving methods, such as electric servo motors, hydraulic motors, or pneumatic drives, and can be customized according to different application environments and performance requirements. It is also compatible with various advanced control systems, making it easy to achieve precise speed control and position feedback functions. Overall, the TH085 Hollow Rotary Actor is widely used in wind energy, solar tracking systems, heavy engineering machinery, aerospace equipment, marine engineering facilities, and other complex fields that require large-scale rotational motion and limited space due to its strong load-bearing capacity, excellent precision control, and flexible design.

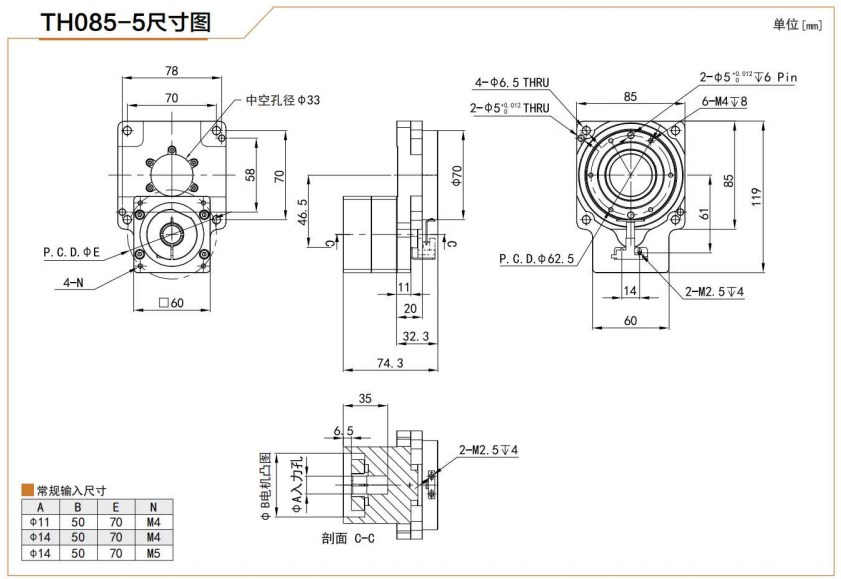

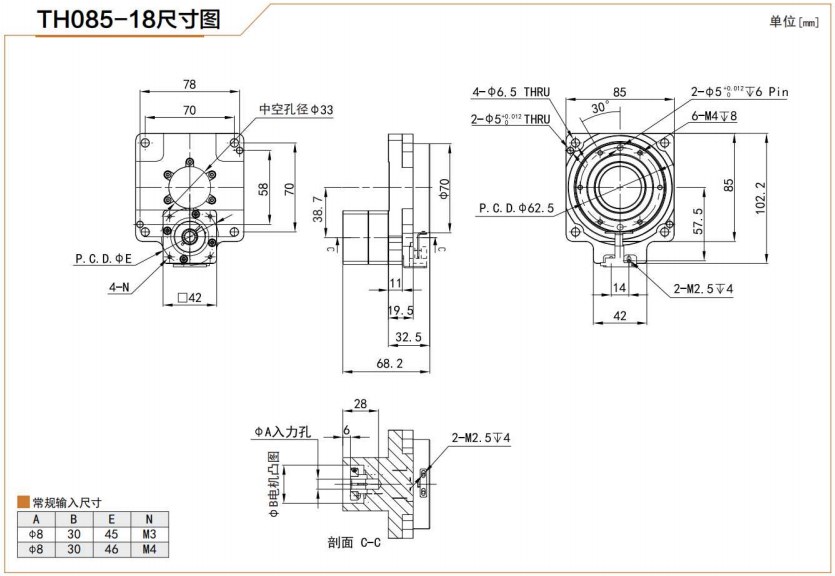

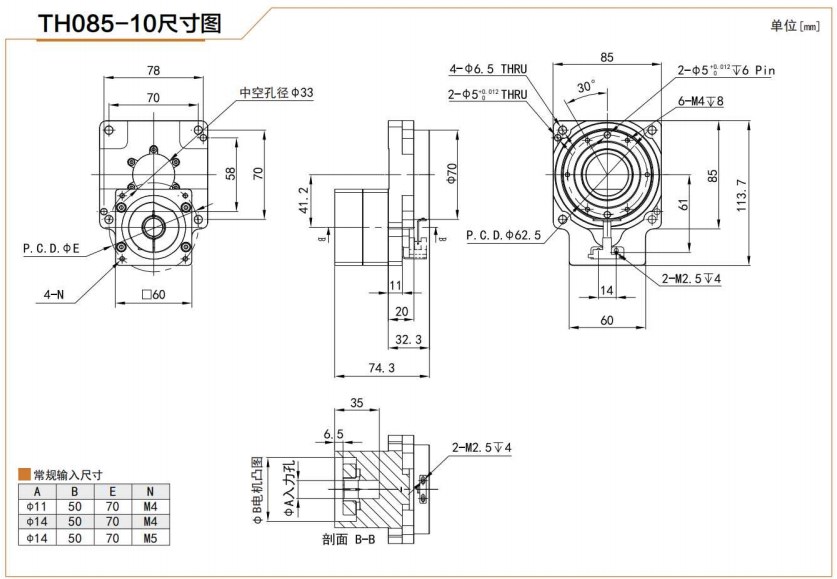

Specifications	TH085-5 / TH085-10 / TH085-18
Reduction ratio	1:5 / 1:10 / 1:18
Allowable torque	20Nm / 16Nm/ 9Nm
Adapted motor	200/400W 200/400W 100W AC Servo motor
Rotating platform bearings	Cross Roller Bearing
Moment of inertia	2500*0.000001 kg.m²
Permissible speed	200r/min
Allowable inertia load	70N / 55N / 45N
Allowable axial load	500N
Positioning accuracy	0.5arcmin
Repeated positioning accuracy	5arcsec
Deviation of rotating platform tabletop	0.005mm
Parallelism of rotating platform	0.015mm
Concentricity of rotating platform	±0.01 mm
Precision lifespan	20000 h
Protection level	IP40
Weight	1.2kg

Basic Structure of the Hollow Rotary Actuator

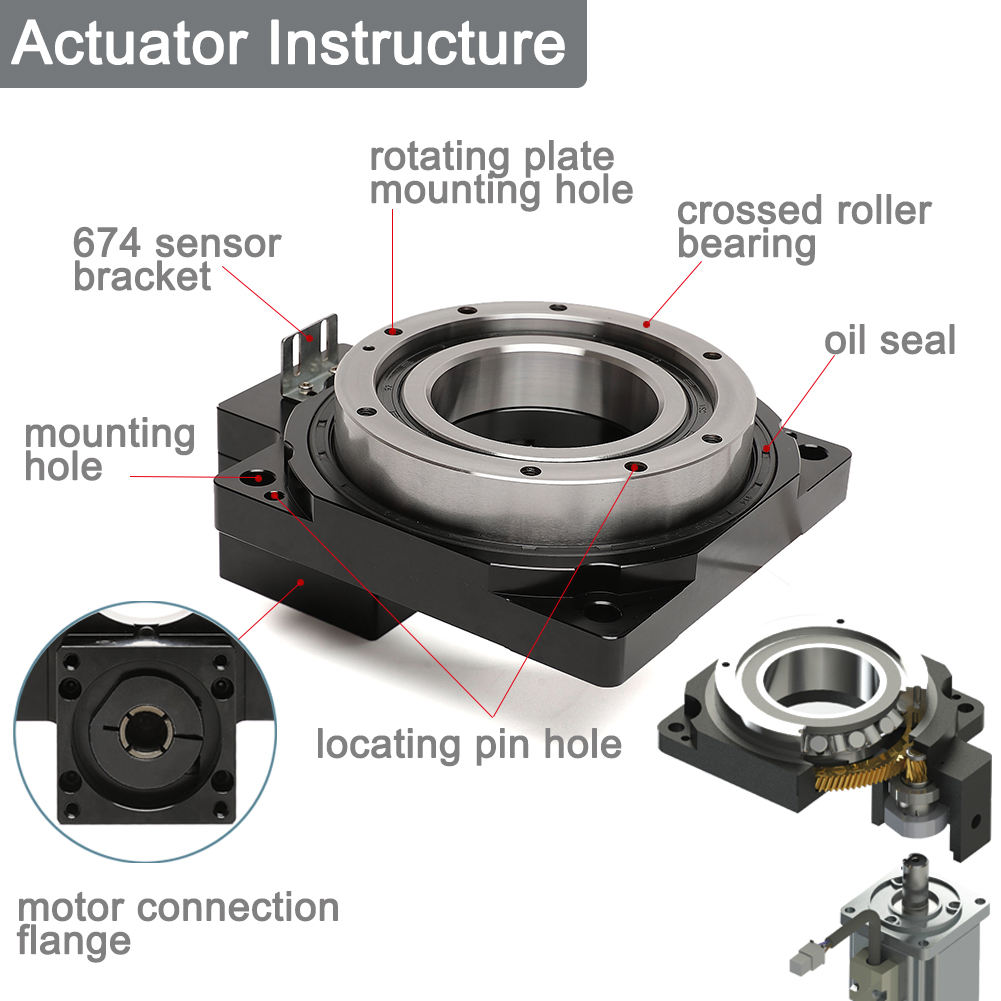

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.
