Vietnam Factory TH280 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

Send Inquiry

Product Description

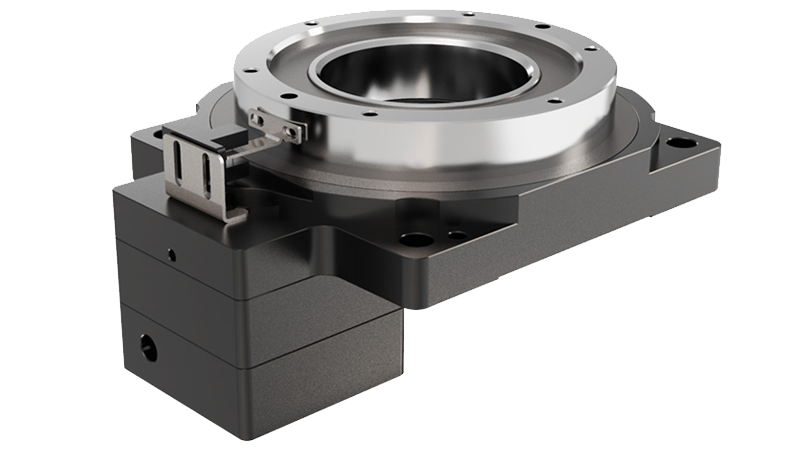

The TH280 Hollow Rotary Actor is a high-performance hollow shaft rotary actuator designed to meet the requirements of high torque, high precision, and flexible installation space in industrial automation and precision control fields. This product is characterized by its innovative hollow shaft structure, which can pass through components such as cables, oil pipes, or transmission shafts, greatly optimizing equipment layout and system integration.

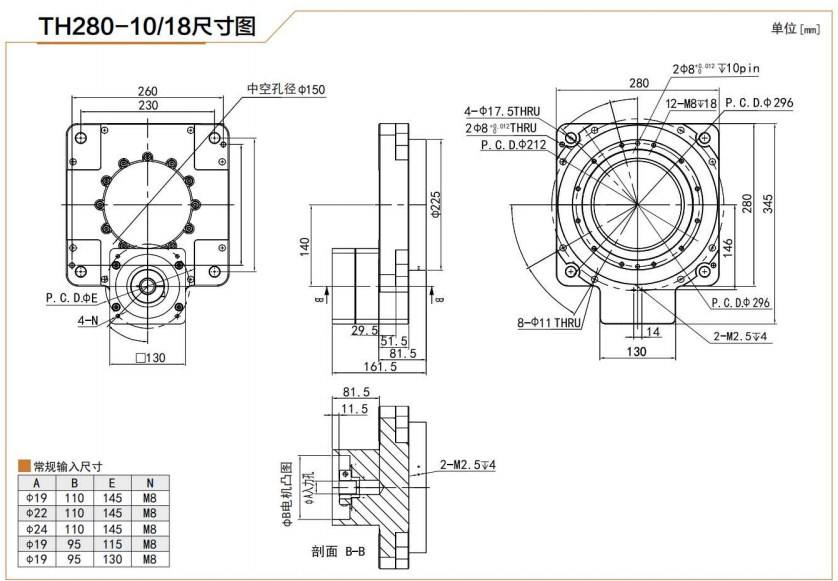

Specifications	TH280-10 / TH280-18
Reduction ratio	1:10 / 1:18
Allowable torque	200Nm / 226Nm
Adapted motor	1KW/2KW AC Servo motor
Rotating platform bearings	Cross Roller Bearing
Moment of inertia	200430*0.000001 kg.m²
Permissible speed	200r/min
Allowable inertia load	296N
Allowable axial load	7000N
Positioning accuracy	0.5arcmin
Repeated positioning accuracy	5arcsec
Deviation of rotating platform tabletop	0.005mm
Parallelism of rotating platform	0.015mm
Concentricity of rotating platform	±0.01 mm
Precision lifespan	20000 h
Protection level	IP40
Weight	19kg

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.
