Vietnam Factory THG085 High Precision Planetary Gearbox Hollow Rotary Actuator for Speed Reducers Rotating Platform Table

THM085 Hollow Rotary ActuatorThe THM060 Hollow Rotary Actuator is a specialized electromechanical device designed for applications requiring rotationalmovement and space for cables, hoses, or other utilities to pass through its central axis. This actuator typically combines acompact and robust desig......
Vietnam Factory THG085 High Precision Planetary Gearbox Hollow Rotary Actuator for Speed Reducers Rotating Platform Table
THM085 Hollow Rotary Actuator
The THM060 Hollow Rotary Actuator is a specialized electromechanical device designed for applications requiring rotational
movement and space for cables, hoses, or other utilities to pass through its central axis. This actuator typically combines a
compact and robust design with high torque output and positional accuracy, allowing it to function effectively in confined spaces
and complex mechanical systems.
Specifications
THM085
Reduction ratio
30/40/50/60/70/80/100
Rated torque
55/50/60/55/50/45/40Nm
Adapted motor
200/400W AC Servo motor
Emergency stop torque
3x rated torque
Rated input speed
5000rpm
Maximum input speed
10000rpm
Return gap
≤1arcmin
Torsional rigidity
7Mn/arcmin
Permissible radial force
1530N
Permissible axial force
765N
Service life
20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency
97%
Working temperature
-10-+90℃
Protection level
IP65
Lubrication
synthetic lubricating oil and grease
Noise
≤58dB(A)
Moment of inertia
0.13kg.cm²
Weight
2.5kg
Vietnam Factory THG085 High Precision Planetary Gearbox Hollow Rotary Actuator for Speed Reducers Rotating Platform Table
Vietnam Factory THG085 High Precision Planetary Gearbox Hollow Rotary Actuator for Speed Reducers Rotating Platform Table

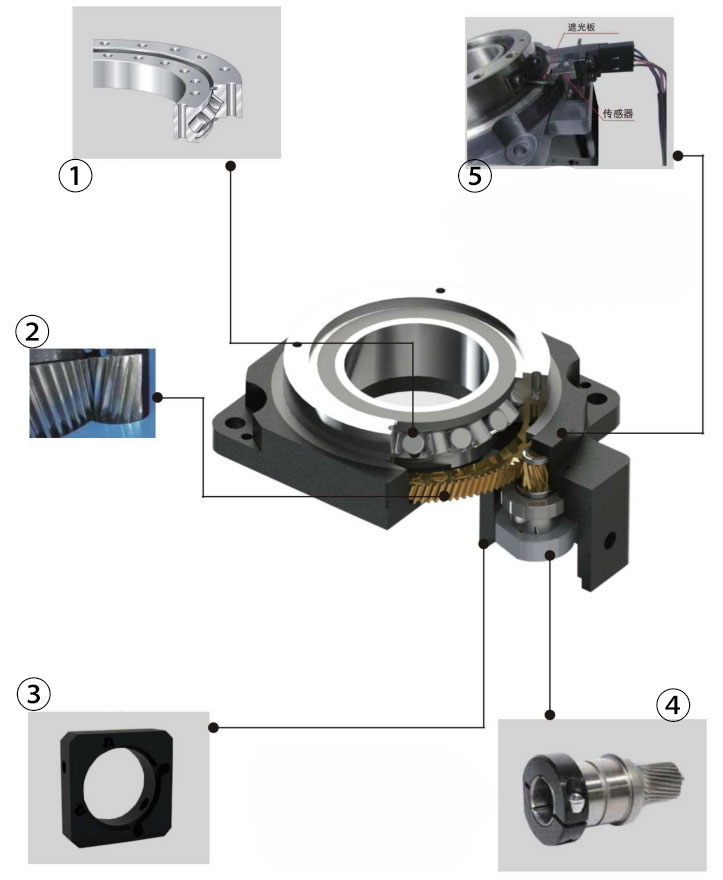

Basic Structure of the Hollow Rotary Actuator
1.Cross roller bearings: provide high stiffness and precise rotational support.
2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.
3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.
4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.
5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
Vietnam Factory THG085 High Precision Planetary Gearbox Hollow Rotary Actuator for Speed Reducers Rotating Platform Table
Vietnam Factory THG085 High Precision Planetary Gearbox Hollow Rotary Actuator for Speed Reducers Rotating Platform Table
We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.
