Vietnam Factory THM280 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

In the realm of motion control, the Hollow Rotary Actuator stands out for its innovative architecture, which integrates a hollow shaft that can accommodate internal wiring and piping, all while maintaining exceptional torque output and smooth, controllable rotations for intricate automated tasks.Spe......

Send Inquiry

Product Description

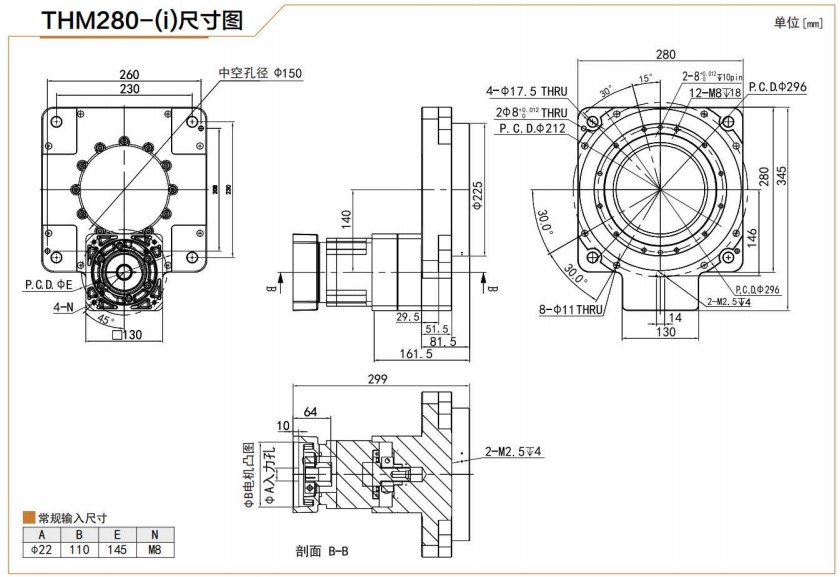

Specifications	THM280
Reduction ratio	30/40/50/70/80/100
Rated torque	208/290/330/310/300/260/230Nm
Adapted motor	1000/2000W AC Servo motor
Emergency stop torque	3x rated torque
Rated input speed	4000rpm
Maximum input speed	8000rpm
Return gap	≤1arcmin
Torsional rigidity	25Mn/arcmin
Permissible radial force	6700N
Permissible axial force	3350N
Service life	20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency	97%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤63dB(A)
Moment of inertia	2.57-3.25kg.cm²
Weight	26.8kg

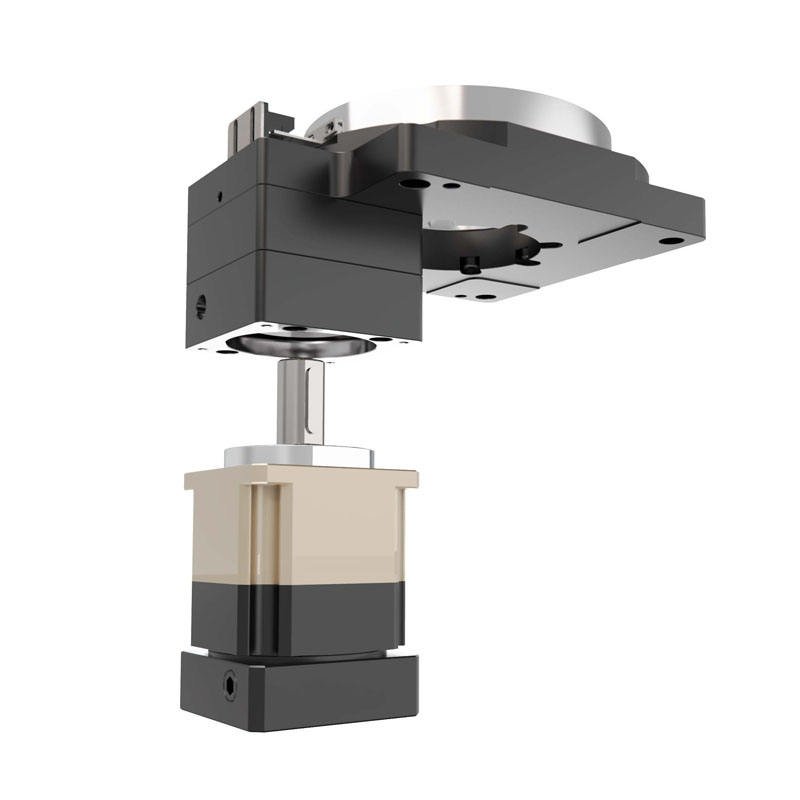

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.
