Product Description

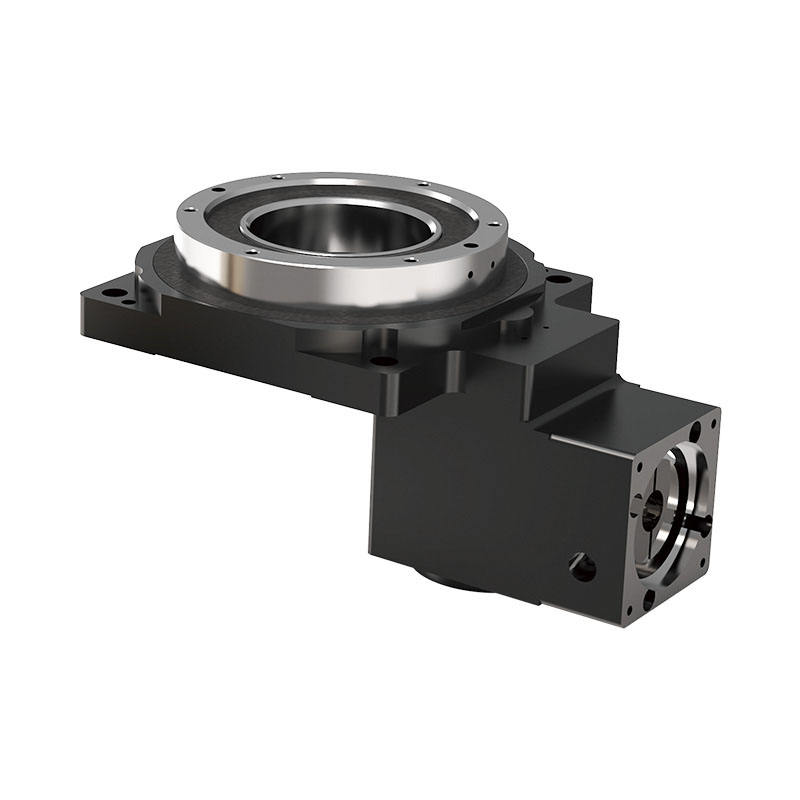

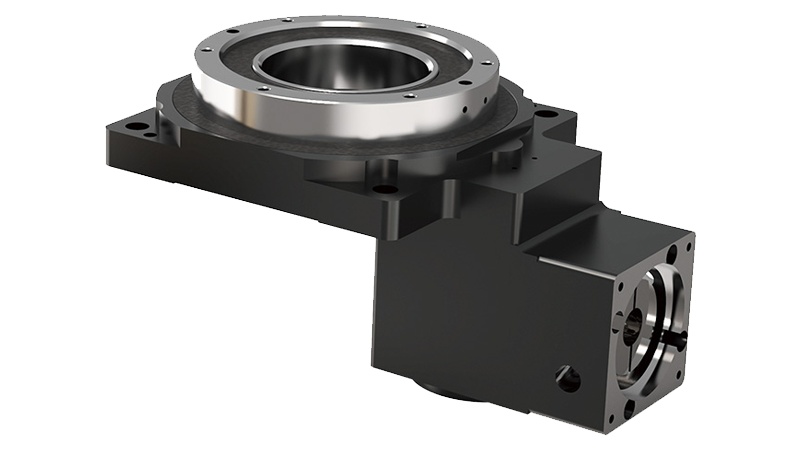

THR085 Hollow Rotary Actuator

A Hollow Rotary Actuator represents a class of actuators engineered with a hollow shaft structure, which not only permits passage
of cables or pneumatic/hydraulic lines but also exhibits notable characteristics such as high torque-to-size ratio, low backlash,
and adaptability to diverse motion control systems.

Specifications	THR085
Reduction ratio	10/20/30/50
Rated torque	28Nm
Adapted motor	200/400W AC Servo motor
Emergency stop torque	2.5x rated torque
Rated input speed	1500rpm
Maximum input speed	2500rpm
Return gap	≤1arcmin
Torsional rigidity
Permissible radial force	500N
Permissible axial force	200N
Service life	20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency	95%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤65dB(A)
Moment of inertia	0.065kg.cm²
Weight	2.6kg

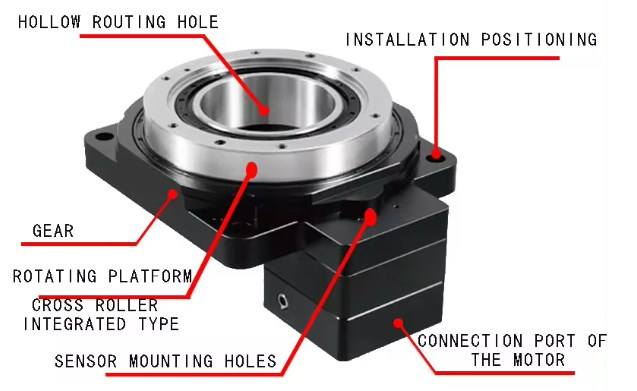

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
