Product Description

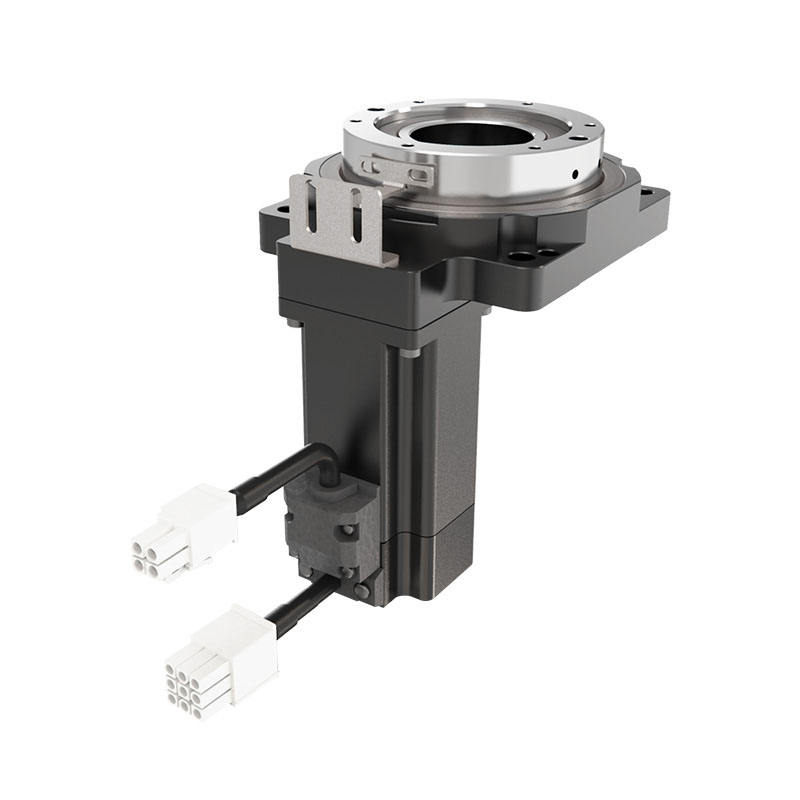

THS060 Hollow Rotary Actuator

For applications needing unobstructed passage of utilities and precise rotational movement, the Hollow Rotary Actuator is a
game-changer. Its core functionality revolves around an inner void that streamlines assembly while maintaining robustness and
repeatable precision over numerous cycles.

Specifications	THS060-5
Reduction ratio	5
Positioning accuracy	0.5arcmin
Allowable torque	5Nm
Permissible speed	200r/min
Repetitive positioning accuracy	5arcsec
Allowable inertia load	20N
Allowable axial load	100Nm
Deviation of rotating platform tabletop	0.005mm
Parallelism of rotating platform	0.015mm
Concentricity of rotating platform	0.01mm
Rotating platform bearings	Cross Roller Bearing
Protection and other records	IP40
Moment of inertia	2500*0.000001kg.m²
Weight	1.0kg

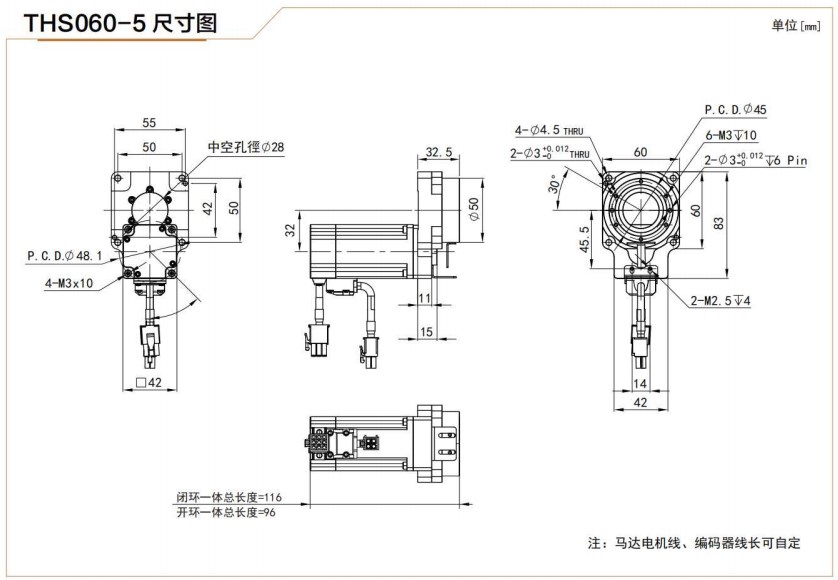

Appearance dimensions	42mm
Phase number	2PHASES
Rated current	1.5A/PHASES
Coil impedance	4.3±10%OHM/PHASE
Coil impedance	6.0MH
Maintain torque	6.5kg.cm
Moment of inertia	82g.cm
Motor length	Open loop: 61mm Closed loop: 81mm
Encoder resolution	/
Insulation level	B
Step angle	1.8°
Lead	1000

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
