Vietnam Factory THS085 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

THS085 Hollow Rotary ActuatorTHS085 hollow rotary actuator Rotating Platform Table With High Precision Planetary Gearbox is a high-precision motion controlcomponent that rotates around a hollow shaft. It is also known as Hollow Rotary Platform and Hollow Rotary Table. The THS085Hollow Rotary Actuato......

Send Inquiry

Product Description

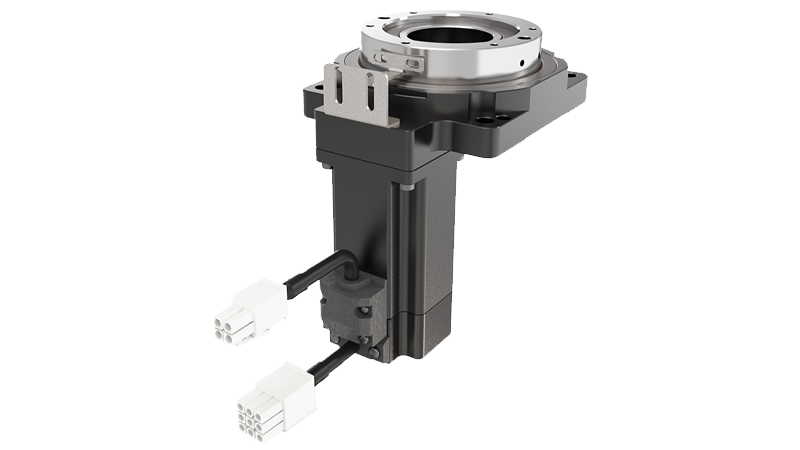

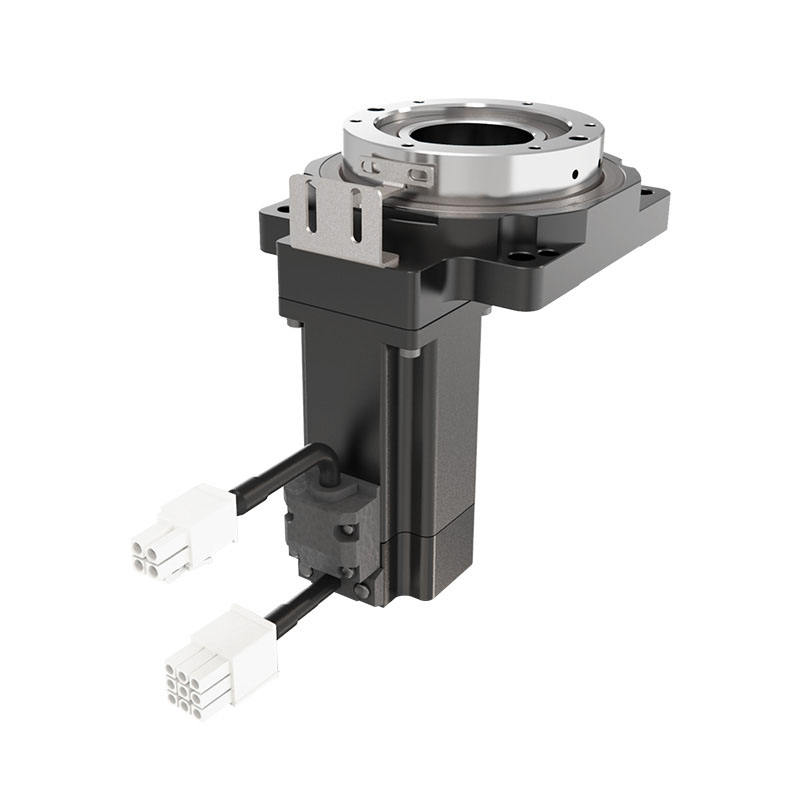

THS085 Hollow Rotary Actuator

THS085 hollow rotary actuator Rotating Platform Table With High Precision Planetary Gearbox is a high-precision motion control
component that rotates around a hollow shaft. It is also known as Hollow Rotary Platform and Hollow Rotary Table. The THS085

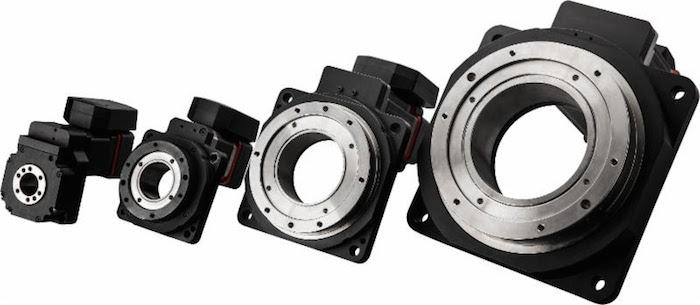

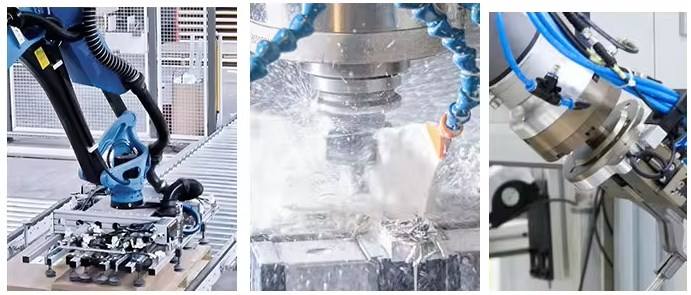

Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox has a wide range of applications in various
fields due to its compact structure, high precision, and high torque output. Its design allows cables, fluid pipes, or other
necessary components to pass through the center of the shaft without affecting the rotation function of the actuator itself.

Specifications	THS085-5
Reduction ratio	18
Positioning accuracy	0.5arcmin
Allowable torque	5Nm
Permissible speed	200r/min
Repetitive positioning accuracy	5arcsec
Allowable inertia load	130N
Allowable axial load	500Nm
Deviation of rotating platform tabletop	0.005mm
Parallelism of rotating platform	0.015mm
Concentricity of rotating platform	0.01mm
Rotating platform bearings	Cross Roller Bearing
Protection and other records	IP40
Moment of inertia	2500*0.000001kg.m²
Weight	1.2kg
Appearance dimensions	42mm
Phase number	2PHASES
Rated current	1.5A/PHASES
Coil impedance	4.3±10%OHM/PHASE
Coil impedance	6.0MH
Maintain torque	6.5kg.cm
Moment of inertia	82g.cm
Motor length	Open loop: 61mm Closed loop: 81mm
Encoder resolution	/
Insulation level	B
Step angle	1.8°
Lead	1000

Basic Structure of the Hollow Rotary Actuator

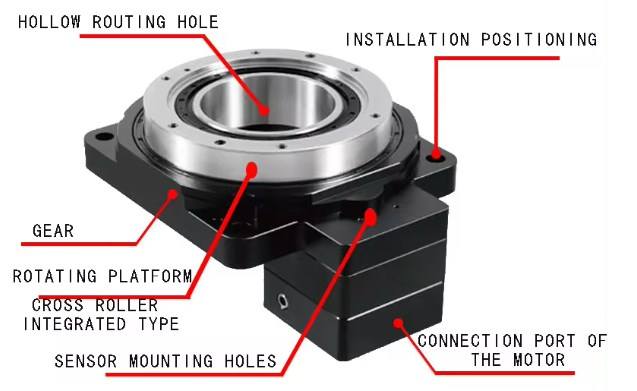

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.
