Vietnam Factory Zjy Series Shaft Mounted Gearbox Reducer for Belt Scraper Conveyors Bucket Elevators

ZJY Series Shaft Mounted Gearbox ReducerComponents:1. Housing: Cast Iron Gearbox2. Gears: Hardened Helical Gears, Carburizing, Quenching, Grinding3. Gears Accuracy: 6 Class4. Shafts: High Quality Alloy Steel5. Input Configurations:Keyed Solid Shaft Input6. Output Configurations:Keyed Hollow Shaft Ou......

Send Inquiry

Product Description

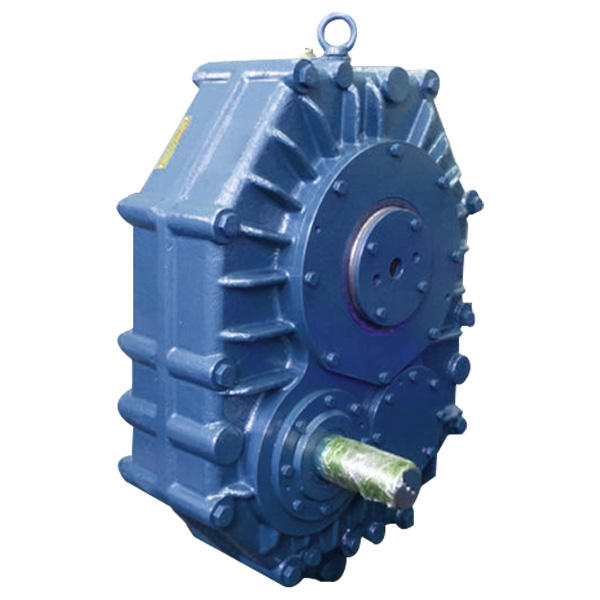

ZJY Series Shaft Mounted Gearbox Reducer

Components:
1. Housing: Cast Iron Gearbox
2. Gears: Hardened Helical Gears, Carburizing, Quenching, Grinding
3. Gears Accuracy: 6 Class
4. Shafts: High Quality Alloy Steel
5. Input Configurations:
Keyed Solid Shaft Input
6. Output Configurations:
Keyed Hollow Shaft Output
7. Spare Parts: Torque arm, Backstop

Models:
ZJY106, ZJY125, ZJY150, ZJY180, ZJY212, ZJY250, ZJY300

Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. Bi-directional rotation(Clockwise or Counterclockwise) is available for output shaft. Unidirectional rotation if equipped with the backstop to prevent backdriving
3. Widely used in conveyors

Models	Output Shaft Bore	Input Power	Max. Torque	Ratio	Weight
ZJY106	45mm	2.3kW~12kW	750N.m	10, 11.2, 12.5, 14, 16, 18, 20, 22.4, 25	27kg
ZJY125	55mm	3.8kW~19kW	1250N.m			40kg
ZJY150	60mm	7.1kW~33kW	2120N.m			67kg
ZJY180	70mm	11kW~56kW	3550N.m			110kg
ZJY212	85mm	19kW~92kW	6000N.m			173kg
ZJY250	100mm	32kW~157kW	10000N.m			250kg
ZJY300	120mm	46kW~225kW	14720N.m			380kg

Applications:
Belt Conveyors, Scraper Conveyors, Bucket Elevators

Installation:
Hanging Shaft Mounted
Equipped With Pulley

Lubrication:
Oil-bath and Splash Lubrication

Cooling:
Natural Cooling
