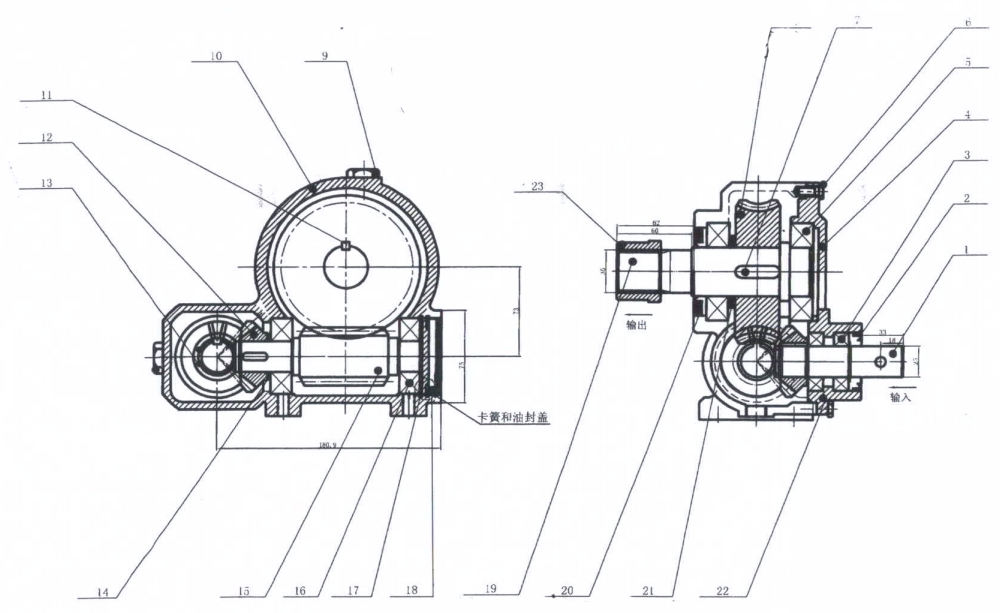

1. Input shaft 2. Oil seal 3. Deep groove ball bearing 4. Door cover 5. Deep groove ball bearing 6. Hexagonal head bolt 7. Flat key 8. Worm gear 9. Oil plug screw 10. Box 11. Flat key 12. Bevel gear 13. Circlip 14. Shim 15. Worm 16. Deep groove ball bearing 17. Circlip 18. Oil seal 19. Spline shaft 20. Oil seal 21. Retaining ring 22. Door cover 23. Spline sleeve Notes: 1. All parts must be cleaned before assembly. 2. During assembly, the bearing must be tightly against the shoulder of the shaft 3. Use WA460 lubricating oil or select the corresponding oil according to the ambient temperature. 4. Conduct a no-load test, and the operation should be flexible and free. After running for 1 hour, the temperature rise should be ≤ 45 ℃

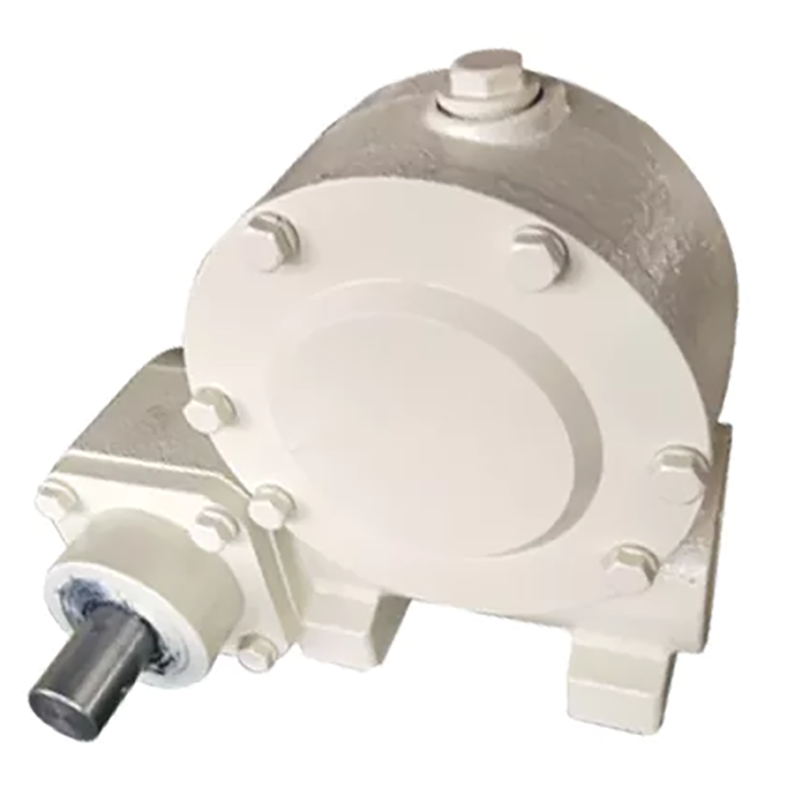

Application of ZL-2810 Gearbox

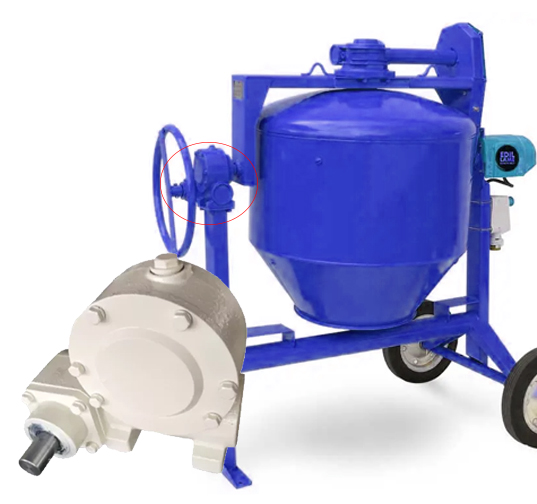

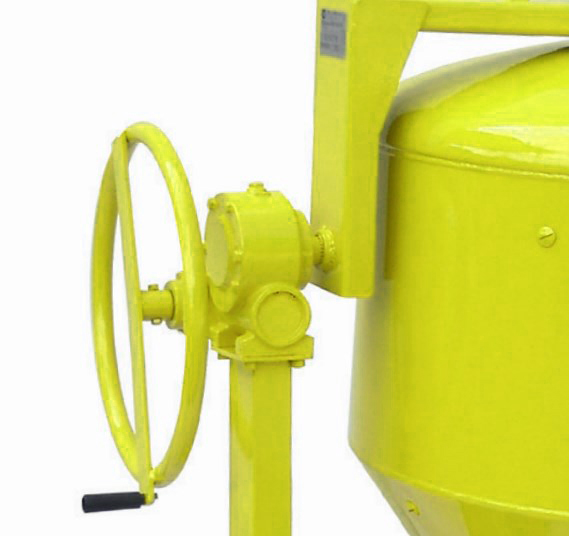

The 2810 Gearbox is a specific model number often associated with cement mixer gearboxes, and its exact installation location can vary depending on the design of the particular cement mixer model. However, in general, gearboxes in cement mixers are typically installed between the power source (engine or electric motor) and the mixing drum. In most cases: * The gearbox would be mounted securely to the frame or chassis of the cement mixer. * It's connected to the input shaft of the gearbox via a coupling, belt, or chain from the engine or motor. * On the output side, the gearbox would have an output shaft that connects directly to the drive mechanism of the mixing drum. This could involve a series of gears, chains, or belts to transfer the torque generated by the gearbox to rotate the mixing drum at the appropriate speed for effective mixing of the cementitious materials.
For more details, please click here to contact us!
As a professional gearbox production factory, we are proud to showcase our core advantages to you: * Excellent manufacturing process: We adopt international advanced production equipment and precision manufacturing technology, strictly adhere to ISO quality management system standards, and ensure that the precision, strength, and durability of each gearbox product reach industry-leading levels. * Diversified product line: We offer a range of gearbox products that are widely used in different fields, including but not limited to industrial equipment, agricultural machinery, construction equipment, ship power systems, and new energy transmission systems. No matter what specifications or special customization requirements customers require, we can provide corresponding solutions. * Innovative R&D Strength: With an experienced and innovative R&D team, we continuously optimize technology and design to develop new types of gearboxes that are efficient, energy-saving, low noise, and high transmission efficiency, in order to meet the latest needs of the market and technological development.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
