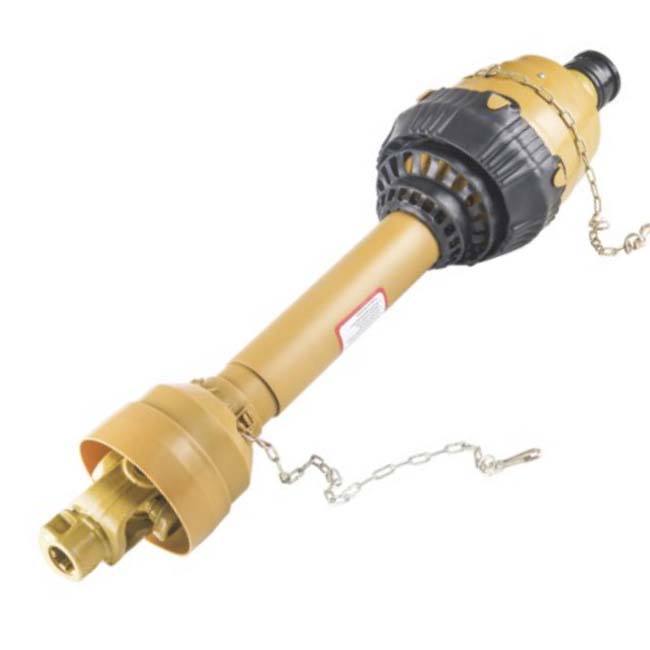

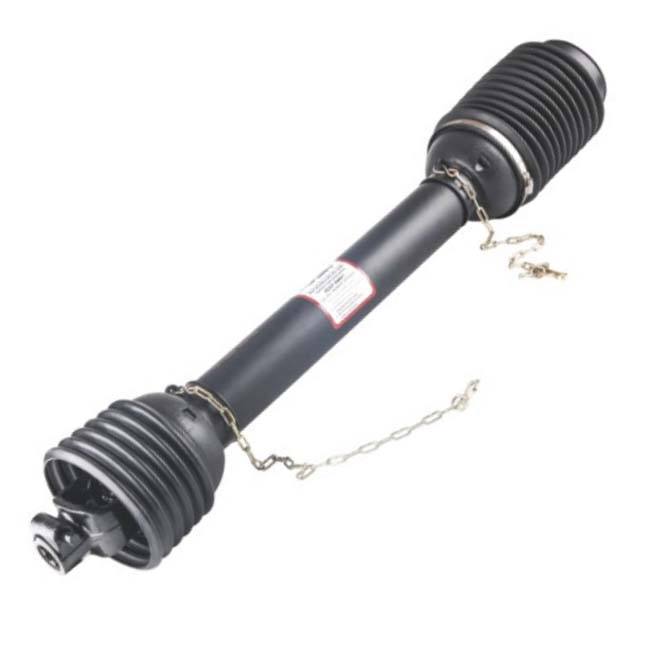

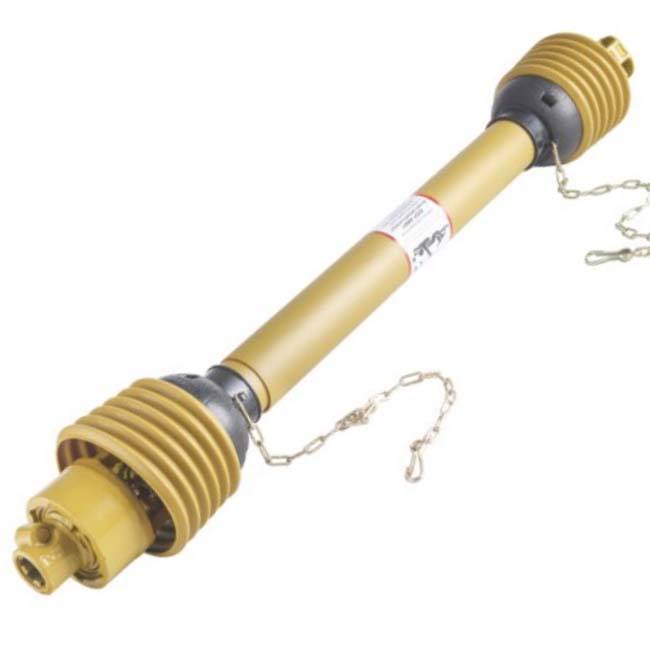

PTO Shaft with clutch for Agricultural machine
1.With CE certificate
2.Forged yoke
3.Use for 80-100HP
4.Multi-tooth spline. Specifications from the 1 3 / 8 "Z6, 1 1 / 8" Z6, 1 3 / 4 "Z6, 1 3 / 8" Z20, 1 1 / 8 "Z20, 1 3 / 4" Z20, 1 3 / 8 "Z21 , 1 1 / 8 "Z21, 1 3 / 4" Z21, etc., complete specifications are welcome.
5.Triangle shaped tube, lemon tube, pipe welding fork Star,sqare tube .
6.This shear bolt torque limiter device interrupts the transmission of power by shering a bolt when the torque exceedsthe setting.
PTO drive shaft for different brands of agriculture machinery, such as tractor Johndeer, case,and newholland
| Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
| Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
| Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
| Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
| Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
| Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
| Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
| Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
| Series 8 | 35mm | 106.5mm
|
70KW | 95HP | 110KW | 150HP |
| Series 38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
