Vietnam Guaranteed Quality Weasler 35 Series PTO Shaft New Condition Replacement for Harvesters Tariff-Free

PTO shaft replacement for Weasler 35 seriesThe 35 series yoke and tube assembly is a reliable PTO yoke, which is durable. This PTO yoke has a 1-2/9 inch square hole for easy connection.Shaft length: 34-2/3 inches from the center line of the yoke ear hole to the back of the tube.Outer diameter of fer......

Send Inquiry

Product Description

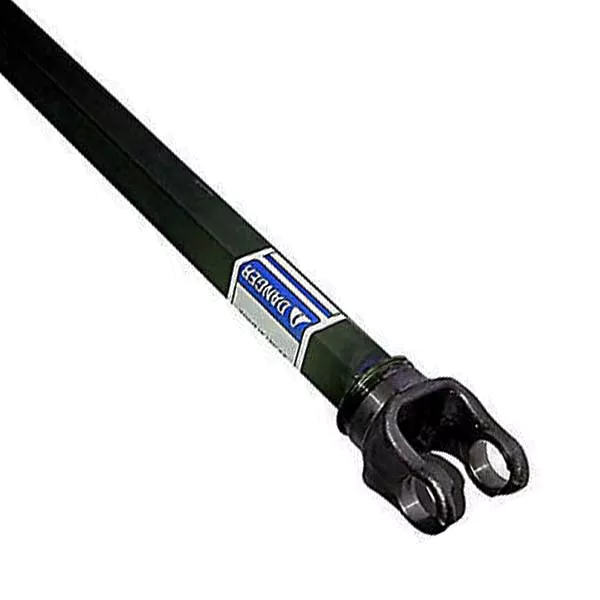

PTO shaft replacement for Weasler 35 series

The 35 series yoke and tube assembly is a reliable PTO yoke, which is durable. This PTO yoke has a 1-2/9 inch square hole for easy connection. Shaft length: 34-2/3 inches from the center line of the yoke ear hole to the back of the tube. Outer diameter of ferrule: 2-1/9 inches. Inner diameter of ferrule: 1-2/9 in. square PTO drive shaft yoke operates at 108 HP/81 kW @ 1000 RPM or 70 HP/52 kW @ 540 RPM to improve efficiency PTO yoke weight: 12.06 lb.

How does the tractor PTO shaft work? The PTO shaft transfers power from the tractor to the equipment of your choice. The PTO power train is the source of power required by the tractor. PTO drive system is often neglected in routine maintenance and inspection, because they are very important when operating farm equipment. Importance of PTO shaft size Whatever you do with the PTO shaft, you must have the correct size. The manufacturer should provide length suggestions to help you understand. When measuring the PTO shaft, use a tape measure from the outside of each yoke to obtain the closing length. The size of the series should be consistent with the horsepower of the tractor. The tractor PTO shaft usually uses two different speeds, 540 PTO shaft and 1000 rpm PTO shaft.

PTO shaft replacement Your PTO shaft is the key part of the tractor to transfer power from the engine to the equipment to be used later. If you want to replace the old PTO shaft, Ever Power provides all the parts and accessories you need, from bearings, clutches, hubs and replacement springs to nuts and bolts. Correct series size of tractor The correct PTO series size of the tractor depends on the horsepower of the machine and the type of implement end to be used. To find the correct series, measure from the outside of each side yoke to obtain the closing length, and then measure from one end of the universal joint to the other end to see the width.

What are the components of the tractor PTO drive shaft?

1. The tractor yoke-PTO assembly starts with this type of yoke. It is connected to the tractor and used to connect the power train. There are two main types of tractor yokes. The first type is a spring lock, which uses a spring loaded collar to connect and release the yoke. The second type is quick disconnect, which is connected to a sales agency. The tractor yoke can also be specified as 6 splines, 20 splines or 21 splines, indicating how it matches the connection on the tractor. This can be identified by calculating the notch in the yoke ring. 2. Spider and bearing kit - this U-joint connects the yoke in the PTO assembly. The spider and bearing kit will have a snap ring inside or outside the bushing, which means it can be found in the yoke ear. 3. Yoke - spider and bearing kit connects the tractor yoke to the drive shaft. 4. Shaft-shaft is the metal rod at the core of the drive train, providing its length and connecting the yoke accessories. 5. The tube-shaft runs in this metal cylinder, which increases the strength of the transmission system 6. Pipe yoke - connected to the end of the pipe, which uses a second cross and bearing kit to connect the drive system to the actuator. 7. Implement yoke - connects the power train to a tractor operated machine or equipment. 8. Protective device - place a layer of hard plastic cover around the transmission system to prevent damage during operation.

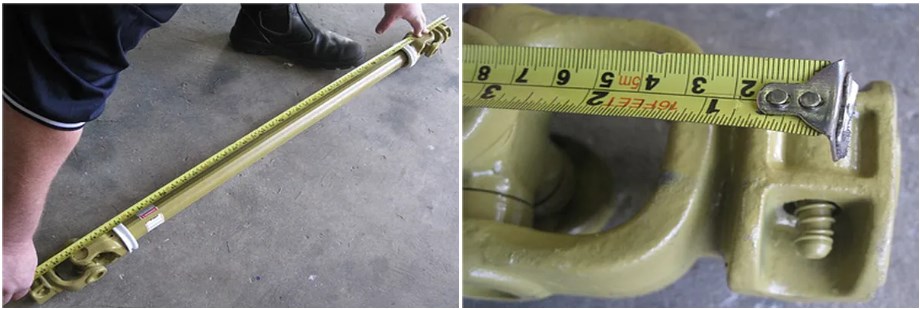

How do I measure the PTO shaft?

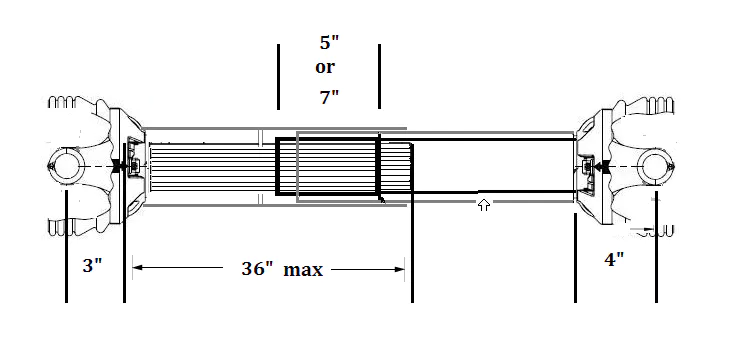

How to measure the PTO shaft How to measure the PTO Take two measurements from the drive end of the universal joint or PTO shaft on the tractor: Measure the bearing cap diameter: the bearing cap diameter of most universal joints is uniform. The cover diameter of the constant speed drive system may be different. For best practice and further accuracy, measure all seals. Measure the width of the cross kit and the length from cover to cover: you also need to measure the U-joint from cover end to cover end. In order to obtain the most accurate reading and increase the possibility of finding the correct PTO shaft, remove the cross kit from the yoke before measuring. Remember that some series have uneven widths. Two-way measuring cross kit is the best practice to ensure accuracy.

What are the different types of PTO shafts? There are several types of PTO shafts on agricultural tractors. Understanding these types of shafts can help you choose the shaft that best suits your needs and ensure that it works properly. Transmission PTO shaft: This is the oldest and simplest PTO shaft, which is directly connected to the tractor transmission. It only engages the PTO when you press the clutch, so it does not work when you put the tractor into gear. This can cause serious problems when using the mower, because you will not be able to cut the entire area you need. This type of PTO shaft is also called a live PTO because it is operated by a two-stage transmission clutch. The first stage allows you to start the PTO by pressing the clutch halfway, while the second stage allows you to control its engagement. This makes the operation easier because you can reduce the tractor speed while operating the PTO shaft. Economical PTO shaft: The PTO is designed to operate at a low speed of 540 to save fuel, reduce vibration and improve efficiency. It is an economic choice for many implements, such as a hay rake or a tractor, which can help your tractor work more efficiently. Domestic PTO shaft: This kind of PTO is made of square, rectangular, hexagonal or spline oil pipe/shaft. This is usually the standard PTO type for tractors manufactured in the United States. It can also be used for bell or star metric drive systems. Depending on the design of the PTO, you can find the yoke and U-joint that connects it to the tractor or implement. The yoke and universal joint are usually welded to the drive end of the PTO shaft. The yoke can be spring-locked or quick-disconnected, and the U-joint has an inner hole that matches the connection on the tractor. 1. Tractor yoke: The yoke is located at the tractor end of the PTO shaft. It has a "Y" shape for connecting the PTO and a male hole. It can be spring lock or quick disconnect, and can have six splines, 20 splines and 21 spline sizes. 2. Universal joint: universal joint is used to connect the implement end of tractor and PTO shaft. It can be 6 splines, 20 splines or 21 splines and welded to the implement end of the PTO shaft. 3. PTO shaft parts: PTO shaft is the key component of tractor transmission system. This is a heavy machine, which must be properly installed to work properly. A full understanding of the various parts in the PTO shaft will help you keep the tractor in the best condition and avoid future maintenance. 4. PTO shaft maintenance: If your PTO shaft needs to be repaired, there are many reasons that may cause its failure, such as connection damage, improper length or power overload. If you are not sure what the problem is, you'd better contact the experienced professionals of Tulsa DriveShaft to restore your agricultural machinery to the best working condition.

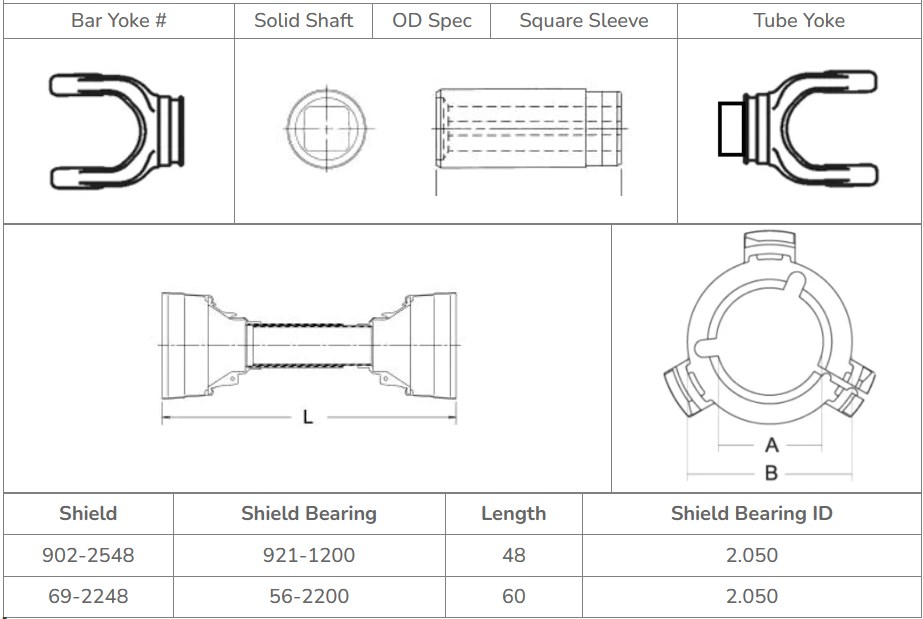

35N/2200 series PTO drive shaft parts

Part Number	Cup Diameter	Length (B)	Snap Ring	Series	Type
2-2275	1.250	3.219	outside	35N / 2200
2-2276	1.250	3.219	outside	35N / 2200	zerk in cap
200-3500	1.250	3.219	outside	35N / 2200
200-3501	1.250	3.219	inside	35N / 2200

35N / 2200 Square or Rectangular Parts

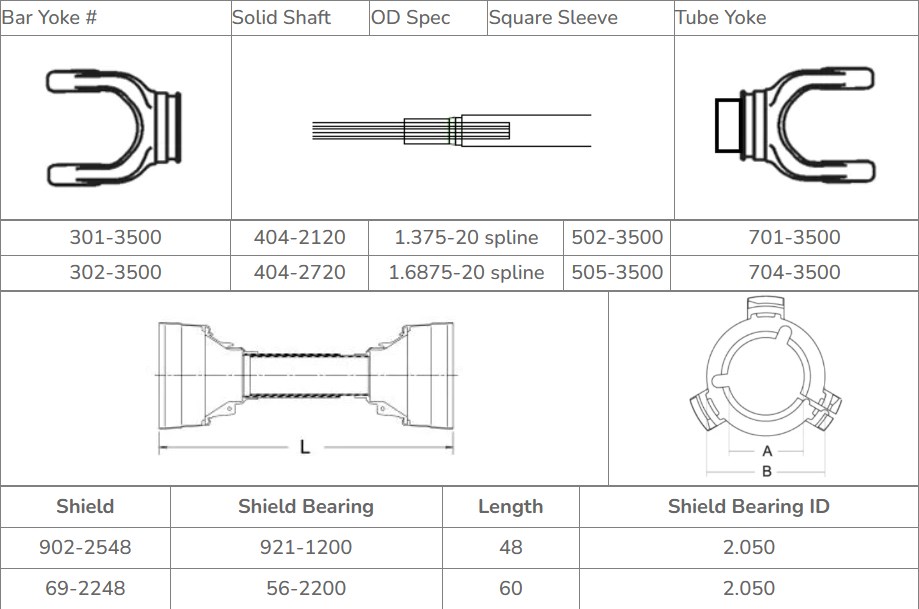

35N / 2200 Splined Parts

35N / 2200 Series Quick Disconnect Yokes

Part Number	Diameter	No of Splines	C-E Length	QD Type
101-3521	1.375	21	5.125	collar
22-2312	1.375	6	4.750	pin
101-3506	1.375	6	5.125	collar
101-3520	1.750	20	6.125	collar
35N / 2200 Series Hex QDs					35N / 2200 Series Hex QDs
102-3518	1.125		4.750	pin

Tractor PTO shaft type You can find several PTO shaft types on the market. Therefore, you may be confused when looking for the correct PTO shaft. However, if your equipment is equipped with the correct PTO, it will be the best. Therefore, you need to understand the characteristics and skills of zeroing the right PTO shaft. 1) Transmission PTO shaft The earliest form of PTO shaft is the transmission PTO shaft. You can connect it directly to the vehicle's transmission. The main disadvantage of this transmission type is that once the tractor starts to move, it will stop moving. In addition, once the tractor is out of gear, it will not work. Both are disadvantages, especially when cutting grass. 2) Two-stage clutch (active) The live PTO shaft works with a two-stage clutch. You can control the PTO shaft by half-pressing the clutch. You can fully press the clutch to disengage the transmission. The advantage of this type of PTO shaft is that you can reduce the tractor speed when the PTO shaft continues to work. 3) Independent PTO shaft The independent PTO shaft is a further innovation of the two-stage clutch PTO. This PTO shaft can be activated even if the tractor is stopped or not moving. This means that it works independently of the transmission clutch. You can use the lever or button to engage the PTO shaft to control the PTO shaft. The advantage of the independent PTO shaft is that it is equipped with a clutch. The clutch operates separately from the tractor transmission. The separate PTO shaft is also equipped with mechanical and hydraulic types.

We also supply agricultural gearbox:https://planetary-gearboxes.en.alibaba.com/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
