Vietnam-Made SS812/815G SS802/805G SS881G SS881TAB-G Stainless Steel Flat Chains With Rubber Top for Conveyors and Farms

SS812/815G WITH RUBBER TOPChain No.Width ( W )mminchSS812/815 - K325G82.63.25SS812/815 - K450G114.34.50SS812/815 - K750G190.57.50SS802/805G WITH RUBBER TOPChain No.Width (W)inchmminchSS802/805 - K750G190.57.50SS802/805 - K1000G25410.00SS802/805 - K1200G304.812.00SS881G WITH RUBBER TOPChain No.Width ......

Send Inquiry

Product Description

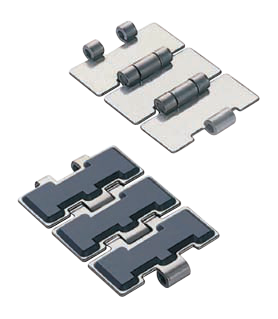

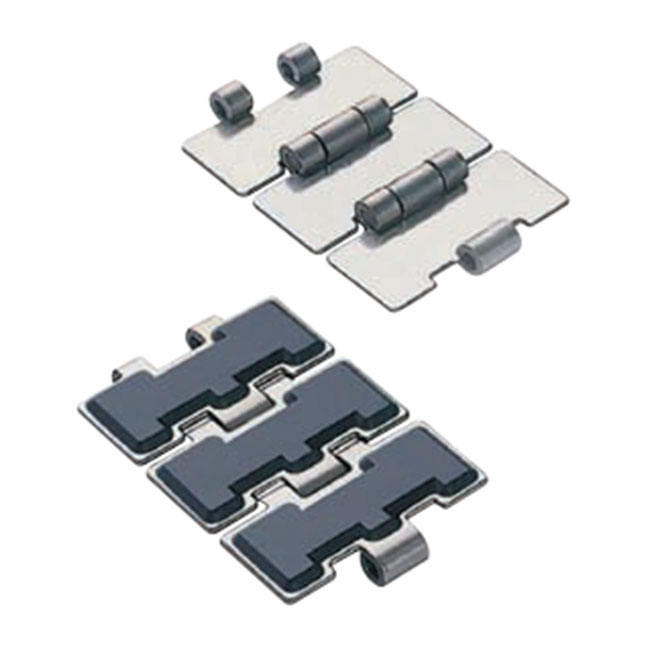

SS812/815G WITH RUBBER TOP
Chain No.	Width ( W )
Chain No.		mm	inch
SS812/815 - K325G	82.6	3.25
SS812/815 - K450G	114.3	4.50
SS812/815 - K750G	190.5	7.50

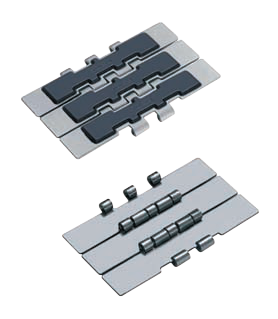

SS802/805G WITH RUBBER TOP
Chain No.	Width (W)		inch
Chain No.		mm	inch
SS802/805 - K750G	190.5	7.50
SS802/805 - K1000G	254	10.00
SS802/805 - K1200G	304.8	12.00

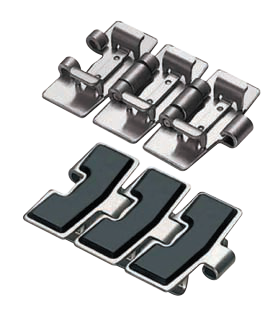

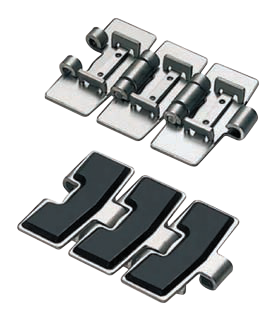

SS881G WITH RUBBER TOP
Chain No.	Width ( W )
Chain No.		mm	inch
SS881 - K325G	82.6	3.25
SS881 - K450G	114.3	4.50
SS881 - K600G	152.4	6.00
SS881 - K750G	190.5	7.50

SS881TAB-G WITH RUBBER TOP
Chain No.	Width ( W )
Chain No.		mm	inch
SS881TAB - K325G	82.6	3.25
SS881TAB - K450G	114.3	4.50
SS881TAB - K600G	152.4	6.00
SS881TAB - K750G	190.5	7.50
SS881TAB - K1000G	254	254
SS881TAB - K1200G	304.8	12.00

Introduction Flat top chains, also called flat top chain plate, slat top chain, table top chain plate, it is an efficient chain plate used in the glass industry, food industry, wine and other industries for conveying. The flat top chains can be made of carbon steel, stainless steel or galvanized steel for high tensile strength and bearing load. Compared with balanced weave belt, it supplies a flat and smooth surface for high performance conveying. We can supply you all kinds of flat top chains in different specs and materials. We can customize the flat top chains, according to your equipment and requirements. Flat top chain plate types

Standard flat top chains are not curved, which is suitable for straight conveying machine. But in some workshops, the space is limited, so the conveying line will be made into an L shape, U shape or rectangular shape. So it need adjust the machine for smooth conveying. Here we can supply not only the standard flat top chains, but the side flex flat top chains.

--Straight running flat top chains. Straight flat top chains supply high loading capacity and smooth surface in the straight conveying machines. It is combined with several regular rectangular chain plates and high pins.

--Side flex flat top chains. Side flex flat top chains are suitable for flex machine, which maybe L shape, U shape or rectangular shape. The side flex flat top chains can ensure fast, smooth and steady conveying. Chain plates of side flex flat top chains have two types: flat edge chain plates and bevel edge chain plates.

--Flat edge chain plates. It combines with flat edge chain plates and hinge pins. Flat edge chain plates can complete side flex conveying through increase the clearance between high pins. In this way, the neighbor chain plate can permit a certain turning angle to achieve smooth side flex conveying. The flat edge chain plate can not only ensure the smooth and steady side flex conveying, but also the normal conveying for straight running.

--Bevel edge chain plates. The chain plates are made of chain plates with symmetrical bevel edges. The bevel edge can eliminate the interference during side flexing conveying and ensure smooth and high efficient conveying. Additionally, there has no any gap when it is used in the flex position. The angle of bevel plate and the pin clearance decide the turning radius.

Chain No.	Width ( W )			Weight			Working load
Chain No.		mm	inch	kg/m	lbs/ft	N
STEEL TOP PLATE / STEEL BASE CHAIN
1874 TAB - K325G	82.6	3.25	3.33	2.24	4500
1874 TAB - K450G	114.3	4.50	4.00	2.69	4500
1874 TAB - K600G	152.4	6.00	4.00	2.95	4500
1874 TAB - K750GG	190.5	7.50	4.80	3.22	4500
STAINLESS STEEL TOP PLATE / STAINLESS STEEL BASE CHAIN
1874 TAB SS- K325G	82.6	3.25	3.33	2.24	3400
1874 TAB SS - K450G	114.3	4.50	4.00	2.69	3400
1874 TAB SS - K600G	152.4	6.00	4.40	2.95	3400
1874 TAB SS - K750G	190.5	7.50	4.80	3.22	3400

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to the high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types,Please click here!}

With the experience of more than 10 years, Raydafon is the leading manufacturer and exporter of various Kinds of conveyor components in China. Raydafon is equipped with 20 sets of injection machine and another 20 Sets of processing equipment. All Raydafon conveyor products are exported to over 65 countries and regions, Including Europe, America, South America, Southeast Asia, Middle East and Africa.
Raydafon conveyor products range covers:
--Plastic flat top chains, Flexible Chains, multiplex chains and Case Conveyor Chains;
--Stainless steel flat top chains, conveyor chains and roller chains;
--Plastic sprockets and idler wheels; Stainless steel sprockets;
--Plastic modular belts;
--Various kinds of conveyor components;
--Stainless steel & Plastic Bearing Units;;
--Conveyor Rollers.
Raydafon is always offering customers excellent quality, competitive price, prompt delivery and after-sale Service. Raydafon has large stocks, which makes prompt delivery possible. Raydafon also welcomes production According to customers’ samples or drawings.
Raydafon is pursuing a policy of " Quality first, Service Superior" and committed to meeting the needs of the
The market it serves. Raydafon sincerely hopes to set up business relations with the friends throughout the world
On the basis of friendship and mutual benefits.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
