Product Description

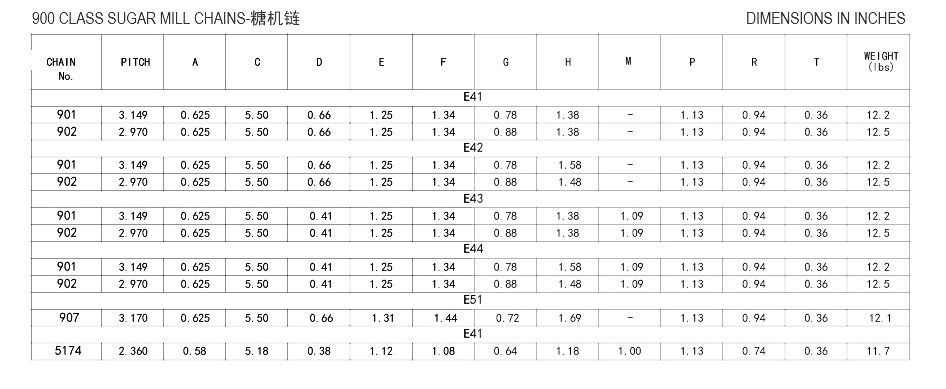

900 Class Sugar Mill Chains

Sugar Mill Chains
In sugar refining industry, chain is mainly adopted as transmission chain. Sugar mill chain has to be abrasion and corrosion resistant since it is inevitably exposed to strong impacts and corrosive environments. The most common sugar mill chain are chains for sugar machines like bush chains, straight panel chains, cranked link chains, cast chains, cast steel chains, and sugar cane collecting chains, sugar cane conveying chains, bagasse conveying chains, etc.
We are a China sugar mill chain manufacturer. Basing on our understanding of sugar refining process and equipment, we know how to produce a bent side pate chain & attachments and sugar mill chain that is suitable for long-term transmission and hoisting applications in sugar refining industry.

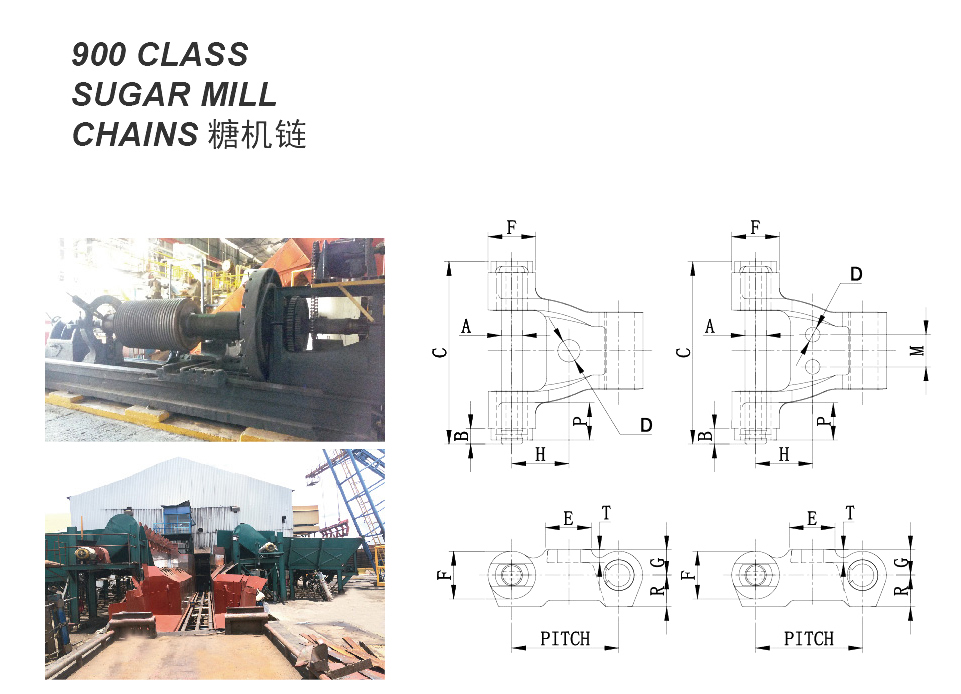

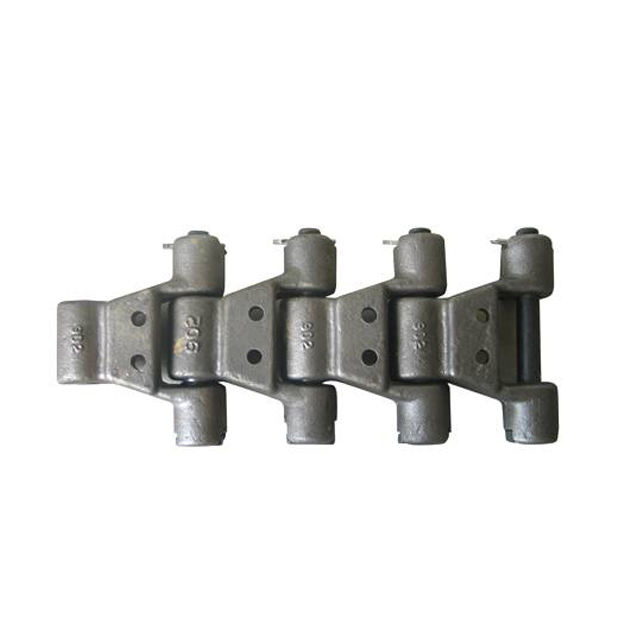

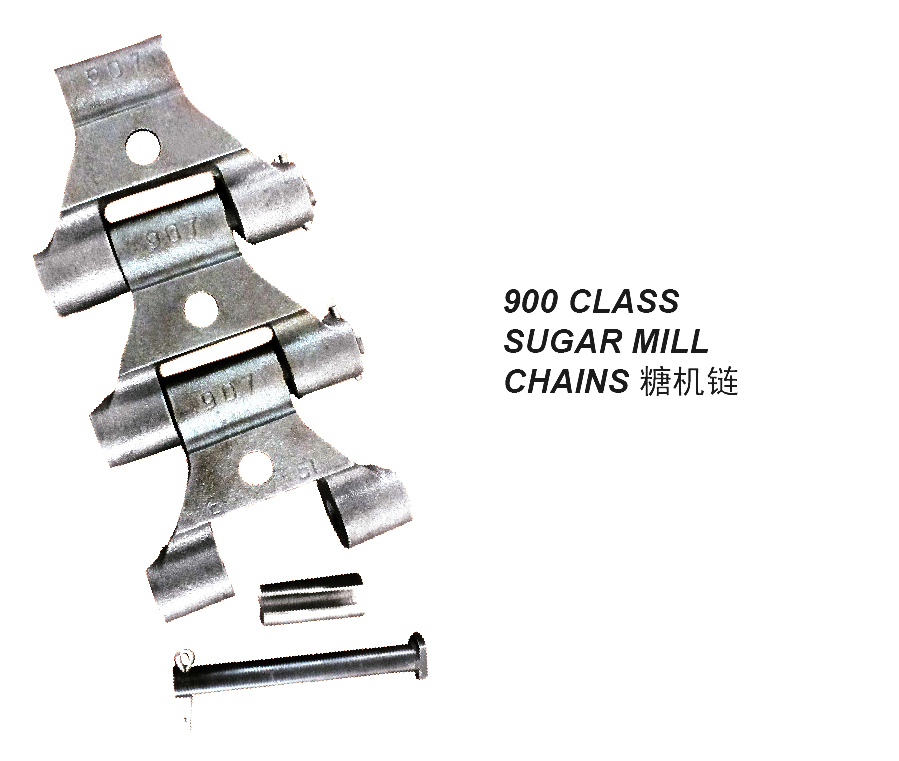

900 SERIES PINTLE CHAINS, sometimes referred to as "sugar mill" or "intermediate carrier chain" is used extensively in sugar mills. Multiple strands of 900 Pintle Chain, available with one or two holes per link, can be fitted with overlapping beaded carrier slats to form a continuous apron conveyor for intermediate carrier service. The pin holes at the closed end of the 900 Class link are provided with smooth bushings which are press-fitted into the links and keyed into place. The bushings are renewable and can be driven out and replaced when they become worn. 900 Class Pintle Chain is designed with dual barrels, one on each side of the open end of the links, to accommodate double sprockets. The purpose of this driving method is to eliminate the possibility of material build-up in the sprocket contact area, which often causes the chain to jump the sprocket. Heavy ribs rigidly reinforce these driving barrels. Our 900 Class chain links, with tensile strength from 22,500 to 32,500 pounds, are available with large sliding surfaces to reduce chain wear and prolong chain life. Broad wearing surfaces and heavy cross sections team up to provide a substantial link which is made according to manufacturer's standards and can perfectly replace links made by other manufacturers. Brutaloy sprockets for 900 Class Pintle Chain are readily available in 3.170 inches. 900 Class Pintle Chain should only be allowed to travel in one direction; links should always run in the direction of their closed narrow end. Available in cottered construction only, 900 Class Chain is assembled with T-headed pins which are locked into place by two lugs cast on the ends of the driving barrels to prevent pin rotation. Pin rotation during operation would result in wear on the inside of the bushing. Both the head of the pin and the cottered end of the pin are protected by cast lugs on the barrel end of the links. Material 900 Class Pintle Chain are links cast of malleable iron or Promal (Duramal). It is furnished with carbon steel heat treated pins and carbon steel case hardened bushings as standard. However, stainless steel pins and bushings can be provided when specified.

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types,Please click here!}

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
