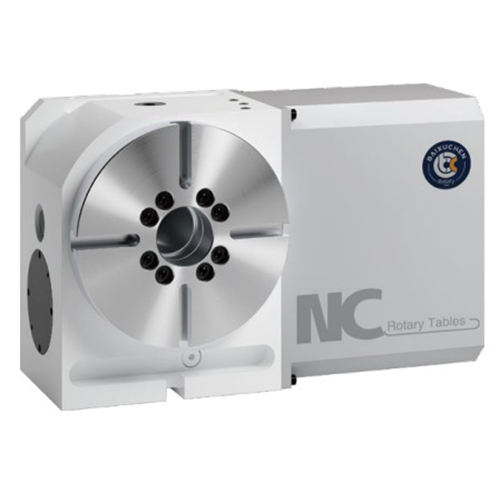

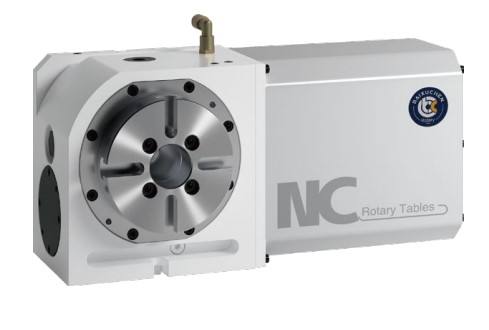

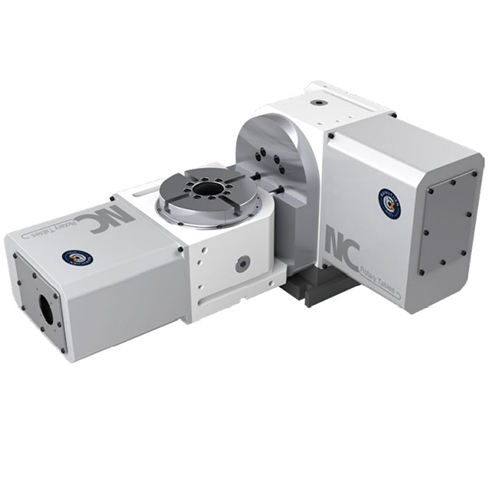

Vietnam Manufactory RT-170 CNC Machining Center Parts Used Milling Machine With Turntable Rotary Table Engine As Core Component

High precision, high performance, high efficiency Five axis machining, modular design Strong braking systemProduct ModelRT-170Servo motor (optional)Rotation axis β8iFANUC ;Tilt axis β8iFANUCPanel Size170mmReduction RatioRotation axis1:60 ;Tilt axis1:72Disk Aperture55mmMaximum Rotation Speed Of Workt......

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Strong braking system

Product Model	RT-170	Servo motor (optional)	Rotation axis β8iFANUC ;Tilt axis β8iFANUC
Panel Size	170mm	Reduction Ratio	Rotation axis1:60 ;Tilt axis1:72
Disk Aperture	55mm	Maximum Rotation Speed Of Worktable	55.5 r.p.m
T-groove Of Disk Surface	14H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±110°deg	Segmentation Accuracy	Rotation axis20″sec;Tilt axis15″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis 4''sec
0 ° Time Disk Height	240mm	Locking torque of rotating shaft	Rotation axis310N.m;Tilt axis500N.m
90° Time Center Height	230mm	Brake Pressure	Rotation axis pressure5Kg/cm²;Tilt axis oil pressure10Kg/cm²
Net Weight (about)	160Kg	Allowable Cutting Force	Rotation axis18Kgf-m;Tilt axis 20Kgf-m
Horizontal placement	40KG	Ninety ° Time	20 KG

Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability of Our company. Thecore parts used by the company are imported from abroad. Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry. Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy,aerospaceand other fields.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
