Weasler 77 Series PTO Shaft ReplacementThe 77 series high-performance PTO drive shaft is the most important drive shaft solution in agriculture, lawn and lawn industries. The PTO drive shaft is a complete assembly from the tractor to the implement. They are designed for continuous heavy-duty use and......

Send Inquiry

Product Description

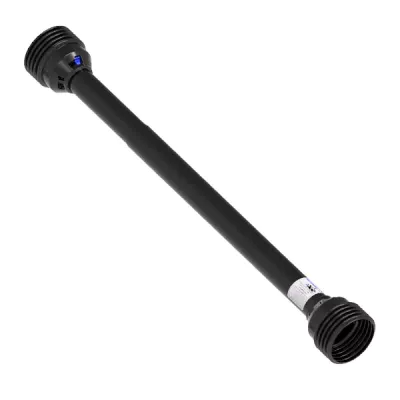

Weasler 77 Series PTO Shaft Replacement The 77 series high-performance PTO drive shaft is the most important drive shaft solution in agriculture, lawn and lawn industries. The PTO drive shaft is a complete assembly from the tractor to the implement. They are designed for continuous heavy-duty use and meet the requirements of large farms and contractors. The tractor PTO shaft and CV wide-angle PTO drive shaft can be interchanged with the standard PTO drive shaft available on the market.

Specifications of 77 Series PTO Shaft

Easy Lock Guard Set	Length	60.00 inches	1524 mm
		Outside Diameter	7.72 inches	196 mm
		Shipping Dimensions	60" L × 7.72" H × 7.72" W	152cm L × 20cm H × 20cm W
		Shipping Volume	3575.90 in3	58599 cm3
		Shipping Weight	4.30 pounds	2 kilograms
		Weight	4.30 pounds	2 kilograms
Yoke And Shaft	HP@1000RPM	264 HP	197 kilowatts
		HP@540RPM	172 HP	128 kilowatts
		Length	32.75 inches	832 mm
		Shipping Dimensions	34.25" L × 3.6" H × 5.75" W	87cm L × 9cm H × 15cm W
		Shipping Volume	677.92 in3	11109 cm3
Cross And Bearing Kit	Bearing Diameter	1.77 inches	45 mm
		Bearing Span	4.95 inches	126 mm
		Bearing Diameter	1.77 inches	45 mm
		Bearing Span	4.95 inches	126 mm
		Height	1.77 inches	45 mm
		HP@1000RPM	264 HP	197 kilowatts
		HP@540RPM	172 HP	128 kilowatts
		Kit Type	E
		Length	4.95 inches	126 mm
		Lubrication Interval	50.00
		Shipping Dimensions	4.957" L × 1.772" H × 4.957" W	13cm L × 5cm H × 13cm W
		Shipping Volume	43.54 in3	713 cm3
		Snap Ring Location	External
		Width	4.95 inches	126 mm

77 Series Weasler PTO Shaft Component Replacement Are you looking for a reliable source of PTO drive shaft parts? At HZPT, we provide you with everything you need to maximize the performance of tractors and implements. We stock various PTO shaft components and parts from the top manufacturers in the industry. Our abundant inventory enables us to provide these products at competitive prices. When you browse the tractor PTO shaft components we selected, you will find all components from the yoke and shaft to the drive train and rolling pin. If you have problems deciding which products are best for your device, please let us know. Our knowledgeable team can point you in the right direction.

77 series PTO shaft performance advantages (1) Robust and durable: the PTO shaft is a CE certified 77 series transmission shaft, which is well forged. It consists of a solid 20CrMnTi carburized steel universal joint and Q345 steel pipe in the shield. When working with various agricultural machinery, the PTO shaft is durable. (2) 6-spline and circular end: It is composed of 6-spline tractor end and circular implement end. The standard size of 77 series PTO shaft is 1-3/8 inch. It can be perfectly matched with implements and tractors of the same size and type, providing powerful driving force for your machine. Your machine will run like never before. (3) Adjustable length: compression length: 39 "/1000 mm; total extension length: 55"/1400 mm. The rudder stock PTO shaft is designed with telescopic steel pipe, universal joint and yoke. It has 35 Hp, 26 Kw and 460 Nm torque at 540 rpm, and 53 Hp, 39 Kw and 360 Nm torque at 1000 rpm. It allows both sides of the PTO drive shaft to rotate at different speeds. (4) Easy assembly and safer use: As an efficient power transmission tool, our PTO extension shaft can be easily assembled and replaced directly. The safety chain and strong shield eliminate the potential hazards during transmission. (5) Widely used: PTO (power take-off) shaft transfers power from tractor to PTO power accessories. It is widely used in lawn mowers, wood chippers, rotary tillers, rotary tillers, shrub cutters, sealers, tractors, fertilizer spreaders, etc. Effectively control the speed and power of the machine. Powerful torque conversion and reliability will make you hope to get our PTO shaft as soon as possible.

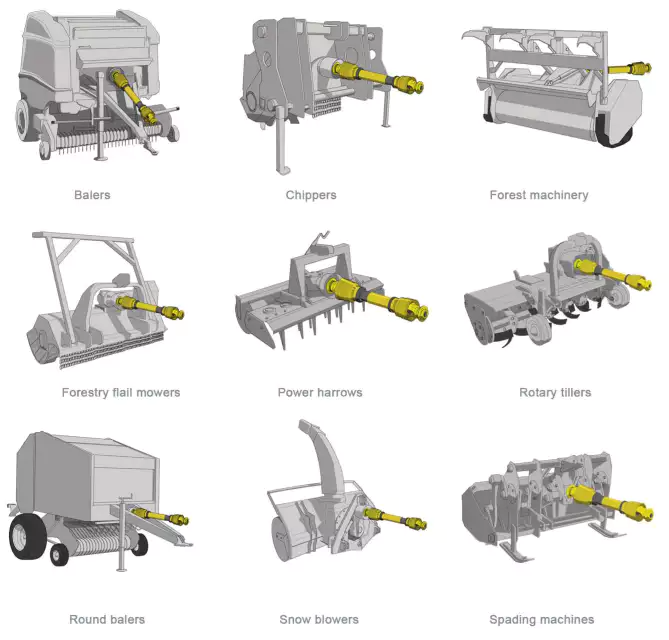

PTO shaft for agricultural machinery As long as the device does not have its own engine, you will see it used. For example, you often see power take-off devices used in commercial vehicles and agricultural equipment. In fact, the innovation of PTO shaft mainly comes from the wisdom of farmers. The tractor engine is used as a PTO shaft to operate a hammer or other equipment. Some other applications of the PTO shaft include: (1) Wood chipper (2) Hay baler (3) Harvester (4) Peeling machine (5) Rotary tiller

How does the PTO shaft work? Many ag equipment lack independent power, which is the function of tractor PTO shaft. There are connectors at each end of the power take-off shaft, which are connected to the tractor and the machine. The tractor PTO shaft can rotate between 540 and 1000 RPM using a simple switch operation, depending on the equipment. When engaged, the shaft draws power and torque from the tractor transmission to provide proper power for the implement and let you start working. The size of the PTO shaft is different. You need to find a shaft that matches the coupling on the equipment you want to tow. It should be easy to connect the implement to the tractor. If you have to lift the equipment off the ground to connect the shaft or the shaft is too long, forced connection may damage both. If you have an existing PTO shaft at hand, it is easy to confirm your length. Close and measure the distance between the PTO shaft yoke and the yoke.

How to determine the tractor PTO shaft size? The tractor PTO shaft on the tractor is used to obtain power and torque from the transmission that operates the machine. It is important to select the correct PTO shaft for the specific equipment and tractor being used, because the wrong PTO shaft may damage the tractor, implement and even the vehicle. To determine which PTO shaft the tractor needs, measure the length of the tractor PTO shaft from the yoke to the yoke. There are several ways to find the proper PTO shaft size for the tractor: The tractor PTO shaft allows you to operate equipment that requires low speed without excessive noise or vibration. They can be hydraulic or mechanical and have clutches. For tractor owners who do not need high-quality transmission, HZPT's economical tractor PTO shaft is a perfect choice. Depending on the tractor model, you can choose the hydraulic or mechanical model. Once you know the function of the transmission PTO shaft, it is easy to determine which type is suitable for your needs.

Agricultural PTO shaft length limit The PTO shaft is a system that provides power for tools. Therefore, it is very important to understand how it works to ensure user safety. Maintenance requirements must also be understood to prevent potential mechanical problems. The PTO shaft is rated and may not be interchangeable between tractors or tools. Therefore, the correct shaft must be installed on the tool according to the manufacturer's specifications and its length must be correct. Length: The length of the PTO shaft is determined when the tool is first installed on the tractor. If the PTO shaft needs to be shortened, the operator must use the supplier's formula to cut the shaft to the correct length. This is usually done by measuring from the tractor output shaft and installing the input shaft to the shortest position of the PTO shaft. Too long: If the PTO shaft is too long (or the telescopic tube is jammed), there may be "end thrust", which may damage the tractor's internal PTO drive or clutch and transmission, resulting in the invalidation of the machine warranty. Too short: If the PTO shaft is too short, it may separate from the tool, resulting in serious safety problems and possible damage.

How to cut the PTO shaft into a certain length?

If the PTO shaft is too long, it may get stuck when lifting the three-point hook. This may damage the chipper bearings or the tractor PTO shaft. If the PTO shaft is too long, it must be cut off. The two halves of the PTO shaft must be shortened by an equal length. 1. Mount the chipper on the three-point linkage of the tractor. 2. Cut off the engine and remove the key. Place the chipper on a solid and flat surface. 3. Lift the three-point linkage so that the power take-off shaft of the chipper and the tractor are at the same height. The PTO shaft and power input should be closest to each other at this position. 4. Open the PTO shaft. Connect the shaft half to the chipper to lock the locking pin. Align the other end of the chipper with the end of the tractor PTO shaft. Set the end side aside. Mark how much must be cut on the shield. The tube must be short enough to reach the bottom of any chipper position. 5. Cut off the plastic pipe. 6. Cut a piece from the profile pipe with the same length as that cut from the protective device. Shorten the other half of the PTO shaft to the same length. 7. File off the sharp edges of the profile pipe.

PTO shaft of agricultural gearbox

Agricultural equipment needs huge operating torque and power to operate, and PTO shaft is the key to maintain this performance for a long time. In order to meet the needs of these machines, we provide various PTO shafts for different applications. HZPT has a variety of options. In addition to PTO shaft, we also stock agricultural gearbox. For all your agricultural equipment needs, please find the appropriate agricultural gearbox and PTO shaft at HZPT. Our PTO shaft has various lengths. These ratings are suitable for small tractors and machinery. When closed, the length is measured by the total length of the PTO drive shaft. Shearbolt and slip clutch (torque limit) PTO shaft are also available. When overworked, these stops will be driven from the tractor to the machine, which is very popular in rotary excavators and other ground care equipment. All PTO shafts can be extended to a certain extent to adapt to different tractor accessories; Mower, sprinkler, rotary mower, etc.
