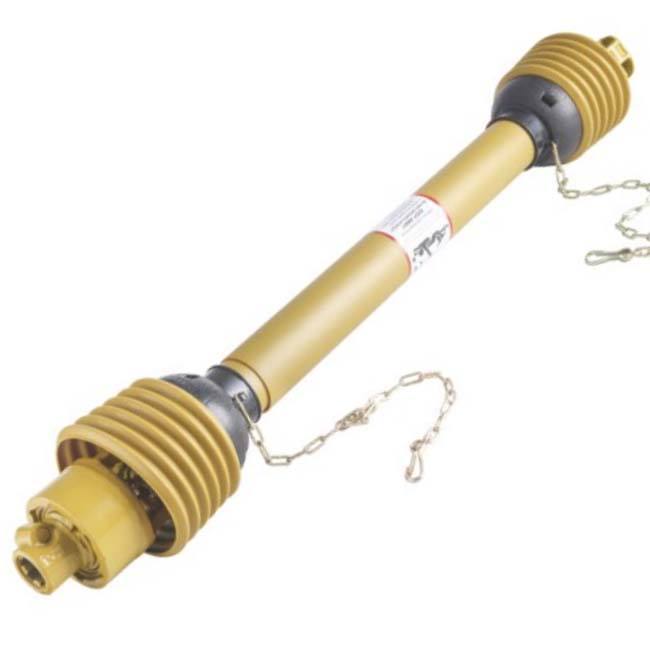

Vietnam Rotary Tillers Pto Shafts 1 3/8" 6 Spline and Shear Pin Clutch With CE Certificated Tariff-free

  2.PTO Shaft for Rotary Tiller ,Troctor and so on.
3.Forged
4.CE certifaction
triangular tube PTOshaft

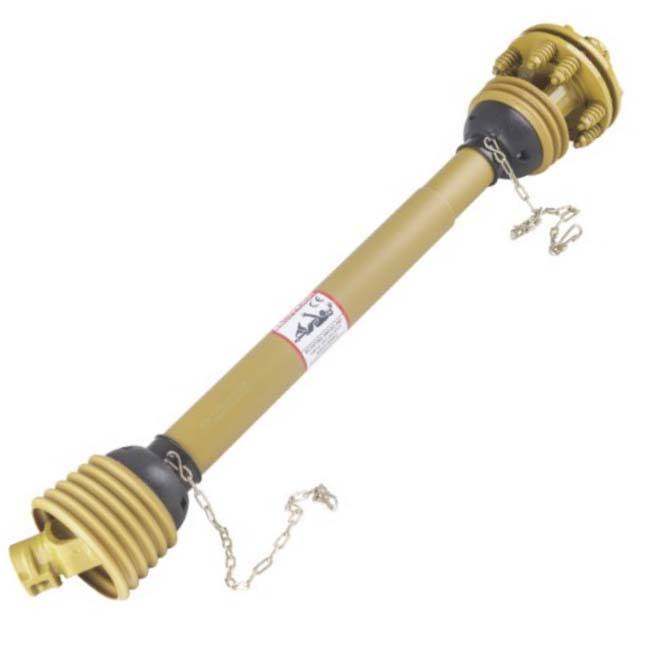

FF-FRICTION TORQUE LIMITER

Limits torque transmission to the setting value. Do not change spring compression as this will modify the device setting.

The torque setting is adjusted by increasing or decreasing the height of the springs. To increase/decrease the torque setting tighten/loosen the eight nuts by 1/4 of a turn and check for correct operation. Repeat the procedure if necessary. Avoid excessive tightening of the bolts-implement, tractor, or driveline damage may occur.

• Eurocard PTO Shaft Specs:
• Series 4 (Metric)
• Pawl Torque Limiter Clutch
• Overall Length is 58.38" Long (Closed)
• 1-3/8" 6 Splined Quick Connect on the Tractor End
• 1-38" Quck Connect on the Implement End
• PTO Shafts Can Be Cut Down to Shorter Working Lengths
• Always Use the Proper PTO Shafts and Lengths!

PTO drive shaft for different brands of agriculture machinery, such as tractor Johndeer, case,and newholland

 Tubes or Pipes

We've already got Triangular profile tube and Lemon profile tube for all the series we provide.

And we have some star tube, splined tube and other profile tubes but only for a certain sizes.

5 End yokes

We've got 13 types of splined yokes and 8 types of plain bore yokes. I will suggest the usual type for your reference.

You can also send drawings or pictures to us if you cannot find your item in our catalog.

6 Safety devices or clutches

I will attach the details of safety devices for your reference. We've already have Free wheel (RA), Ratchet torque limiter(SA), Shear bolt torque limiter(SB), 3types of friction torque limiter (FF,FFS,FCS) and overrunning couplers(adapters) (FAS).

7 For any other more special requirements with plastic guard, connection method, color of painting, package, etc., please feel free to let me know.
