Product Description

Series	540 tr./min					1000 tr./min		MP(NM)
Series		Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
S6	47	64	830	74	100	710	1450
S7	55	75	970	87	118	830	1800
S8	70	95	1240	110	150	150	2250
S38	78	105	1380	123	166	166	2500
S32	39	53	695	61	83	83	1200
S36	66	90	1175	102	139	139	2000
S9	88	120	1560	140	190	190	2800
S10	106	145	1905	170	230	230	3500
S42	79	107	1400	122	166	166	2500
S48	133	180	2390	205	277	277	4200
S50	119	162	2095	182	248	248	3700

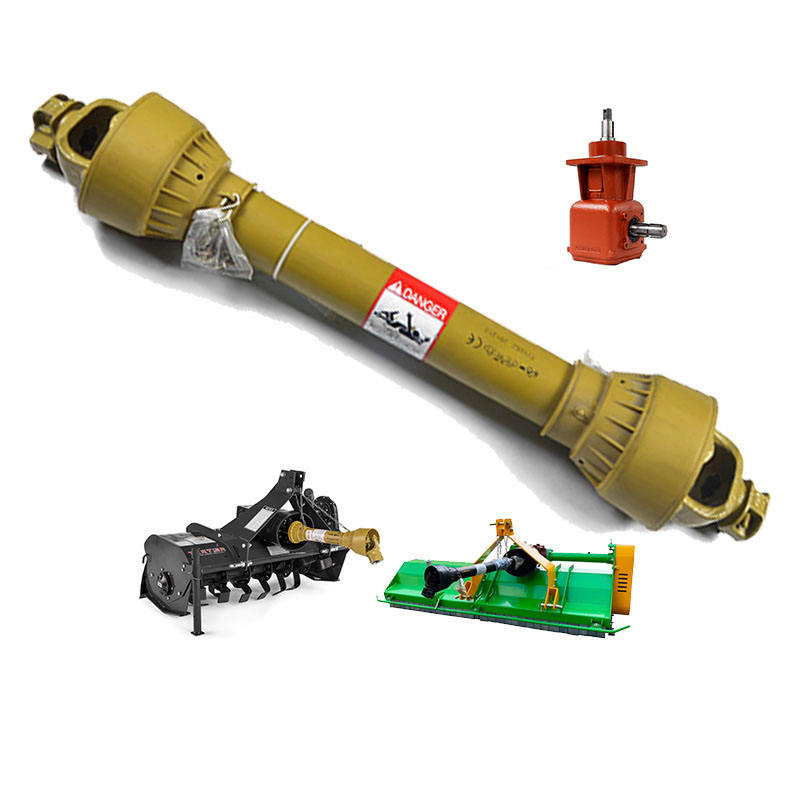

Reliable Tractor PTO Shaft Assemblies and Replacement Parts
The PTO shaft plays a vital role in transferring power from the tractor to the connected implements. Parts of the PTO shaft include internal and external PTO yokes, universal joints, safety chains, and safety guards. There are several different types of PTO shafts available, so you must choose the correct PTO shaft for your equipment and application. Each style includes a range of options, including bearing diameter, total cover to cover length, and snap ring options. The most accurate way to determine the correct series is to measure the outer diameter of the bearing cover and universal joint from one end of the cover to the other. The location of the snap ring is another determinant.

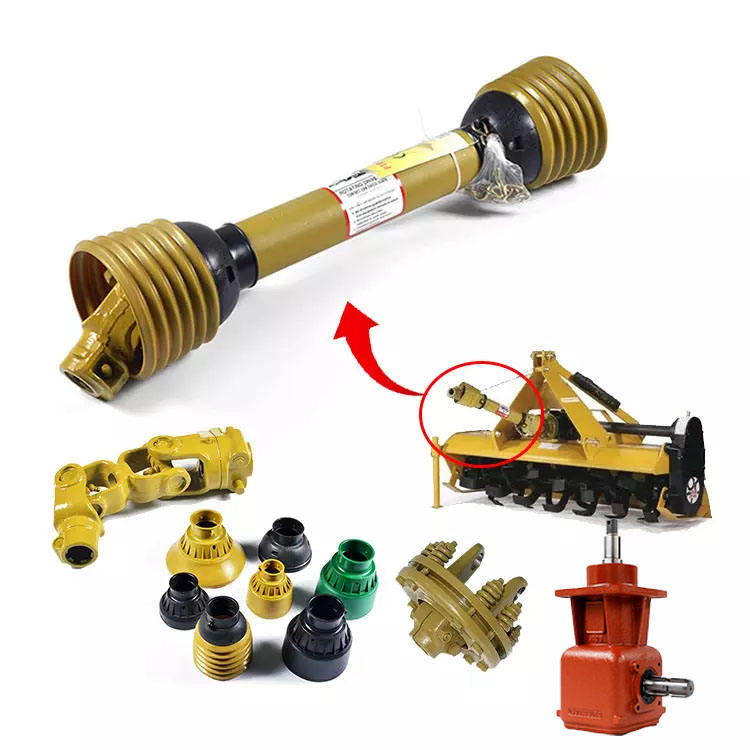

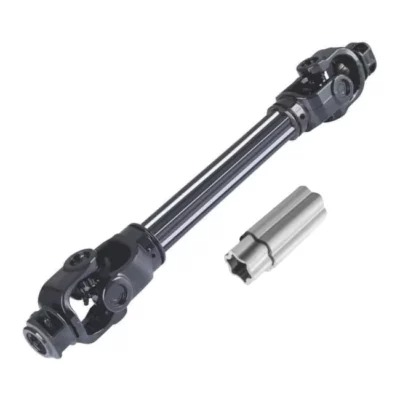

Part of PTO Shaft
Internal yokes - two, located at both ends of the PTO shaft - tractor and implement. This is welded to the drive end. Universal joints - there are two, located at both ends of the PTO shaft. Outer yoke - two, located at both ends of the PTO shaft. It has a "Y" shaped connection to the U-shaped joint and a concave hole. Safety chain - the chain is used to secure the PTO shaft to the equipment and tractor. Safety guards - these cones are located at both ends.

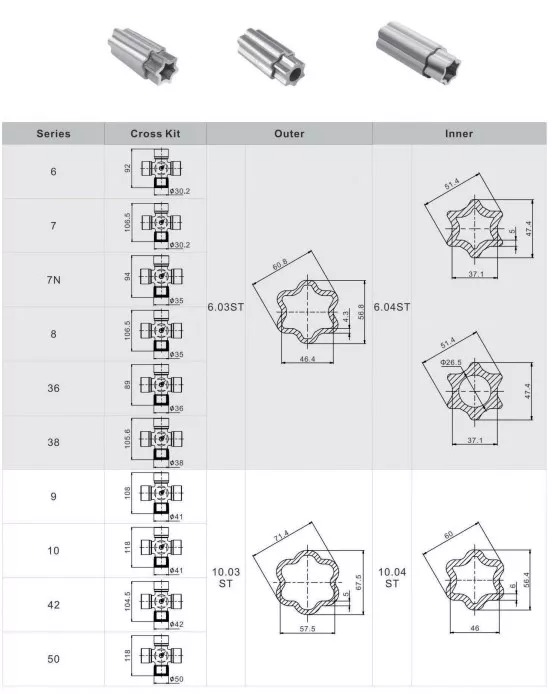

Series	Cross	Joint simple			Splined yoke	Tube yoke			Tube
		Outer	Inner		Outer	Inner	Outer	Inner
	1	2	3	4	5	6	7	8
S6	6.01 (30.2*92)	6.0505B+6.01+6.06L	6.0505B+6.01+6.07L	1.0505B	1.06L	1.07L	6.03L	6.04L
S7	7.01 (30.2*106.5)	7.0505B+7.01+7.06L	2.0505B+2.01+2.07L	2.0505B	2.06L	2.07L
S8	8.01 (35*105.6)	8.0505B+8.01+8.06L	3.0505B+3.01+3.07L	3.0505B	3.06L	3.07L
S32	2400 (32*76)	32.0505B+32.01+32.06L	4.0505B+4.01+4.07L	4.0505B	4.06L	4.07L
S36	2500 (36*89)	36.0505B+36.01+36.06L	5.0505B+5.01+5.07L	5.0505B	5.06L	5.07L
S9	9.01 (41*108)	9.0505B+9.01+9.06L	6.0505B+6.01+6.07L	6.0505B	6.06L	6.07L	10.03L	10.04L
S10	10.01 (41*118)	10.0505B+10.01+10.06L	10.0505B+10.01+10.07L	10.0505B	10.06L	10.07L
S42	2600 (42*104.5)	420.0505B+42.01+42.06L	42.0505B+42.01+42.07L	42.0505B	42.06L	42.07L
S48	48.01 (48*127)	480.0505B+48.01+48.06L	48.0505B+48.01+48.07L	48.0505B	48.06L	48.07L
S50	50.01 (50*118)	500.0505B+50.01+50.06L	50.0505B+50.01+50.07L	50.0505B	50.06L	50.07L

Star Tube

Maintenance Of PTO shaft
Different applications require different maintenance plans. The worse the environment, the more important the new grease is. Steep drivelines generate heat, which degrades lubricants faster than "flat" shafts. Thrust also generates heat and force opposite to torque. Inconsistent torque loads on parts are more difficult to bear than consistent ones. By regularly observing and checking the PTO, you will not only have a "feeling" of maintenance needs, but also likely have a safer application. Frequent lubrication is required. As shown in the left figure, lubricate the parts of the driveline shaft every hour.

The same assembly method is used for both types of safety shields.
How to measure the parts of the PTO shaft

The correct measurement of shaft parts is crucial to the selection of the correct PTO series dimensions. Each product needs to be measured in a specific way to meet the standard size. Follow these steps to ensure that the correct measurements are obtained and to order parts for the tractor. 1. Measuring axis To measure the shaft, first make sure that the shaft is in the closed position, at which time the shaft is the smallest. use Measure the length of the outside of each yoke with a tape measure. This measurement is the closing length. Use this measurement to find the correct series size of the tractor horsepower. Make sure you also know if there are safety pins, clutches, or splined implement ends. 2. Measure the universal joint When measuring the universal joint, measure the length from one end to the other end. You also need to record the width of one end of the universal joint. Use these numbers to find the correct size of the universal joint. 3. Put them together In order to find the PTO shaft parts suitable for the tractor and work normally, you need to make the above two measurements. You can use the PTO yoke size table to get the correct size, or you can use our convenient PTO series discovery tool.

We Also Supply PTO Shafts
If you also need the PTO axis, click here:https://www.alibaba.com/product-detail/Agricultural-Gear-Box-Right-Angle-Drive_62006978819.html?spm=a2700.shop_plfe.41413.11.3d587e03BHaaiH)

Click here for more details!

Agricultural Gearbox For Offset Mowers
Agricultural Gearbox For Flail Mowers
Driveline Gearbox Of Irrigation System
Center-dive Gear Box of Irrigation System
Gearboxes For Feed Mixer
Oil-pump Gearbox
Potato Harvester Gearbox
Harvester Gearbox Reversing Bevel Gearbox

Agricultural Gearbox For Vineyard And Orchard Grass Cutters
Agricultural Gearbox For HAY TEDDER
General Gearbox For Agricultural Machinery
Side-Delivery Rake Gearbox
PTO SPEED REDUCER GEARBOX
Grain Harvester Reversing Gearbox
Pesticide Sprayer Gearbox
Rotary Mower Gearboxes
Reversing Gearbox (used In Grain Unloading System)

Agriculture Gearbox For Rotary Harrows
Agricultural Pto Gearboxes For Powered Generator
Hydraulic PTO Drive Gearbox Speed Increaser
SLASHER GEARBOXES
Grain Auger Gearboxes
Agricultural Chain Sprockets Gearbox
Agricultural Gearbox Grain Conveyor Gearbox
