Second hand farm disc harrow for 120hp lovol tractor
{ heavy harrows for sale } Company information :
:
:.
Main products :disc harrow , disc plough , cultivator, rotary tiller , trailer , sprayer , fertilizer spreader and so on.
{heavy harrows for sale} Disc harrow description :
1BQX series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.
{heavy harrows for sale} 1BQX series light duty disc harrow specification is as following :
| Model | 1BJX-1.4-3 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.2 | 1BQ-3.4 |
| Working width (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2200 | 3400 |
| Working depth (cm) | 10-14 | 10-14 | 14-16 | 14-16 | 14-16 | 14-16 | 16-18 |
| No, of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 24 | 42 |
| Diameter of disc (mm / inch) | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 |
| Weight (kg) | 200 | 220 | 240 | 260 | 290 | 350 | 1100 |
| Matched power (hp) | 12-15 | 15-18 | 25-30 | 30-35 | 35-40 | 55-60 | 80-100 |
{heavy harrows for sale} 1BJX series Middle duty disc harrow specification is as following :
| Model | 1BJX-1.3 | 1BJX-1.6 | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
| Working width (mm) | 1300 | 1600 | 1800 | 2000 | 2200 | 2400 | 2500 |
| Working depth (cm) | 12-16 | 14-16 | 16-18 | 18-20 | 18-20 | 18-20 | 18-20 |
| No, of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Diameter of disc (mm / inch) | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 | 560/22 |
| Weight (kg) | 330 | 370 | 400 | 440 | 465 | 520 | 760 |
| Matched power (hp) | 35-40 | 40-45 | 45 | 50-55 | 55-60 | 60-65 | 75-100 |
{heavy harrows for sale} 1BZ series heavy duty disc harrow specification is as following :
| Model | 1BZ-1.8 | 1BZ-2.0 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-3.8 |
| Working width (mm) | 1800 | 2000 | 2200 | 2500 | 3000 | 3400 | 3800 |
| Working depth (cm) | 20-25 | 20-25 | 20-25 | 20-25 | 25-28 | 25-30 | 25-30 |
| No, of disc (pcs) | 16 | 18 | 20 | 24 | 28 | 32 | 36 |
| Diameter of disc (mm / inch) | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 | 660/26 |
| Weight (kg) | 1150 | 1250 | 1350 | 1500 | 1600 | 1800 | 2100 |
| Matched power (hp) | 60-70 | 70-80 | 80-90 | 90-100 | 100-120 | 120-140 | 140-180 |

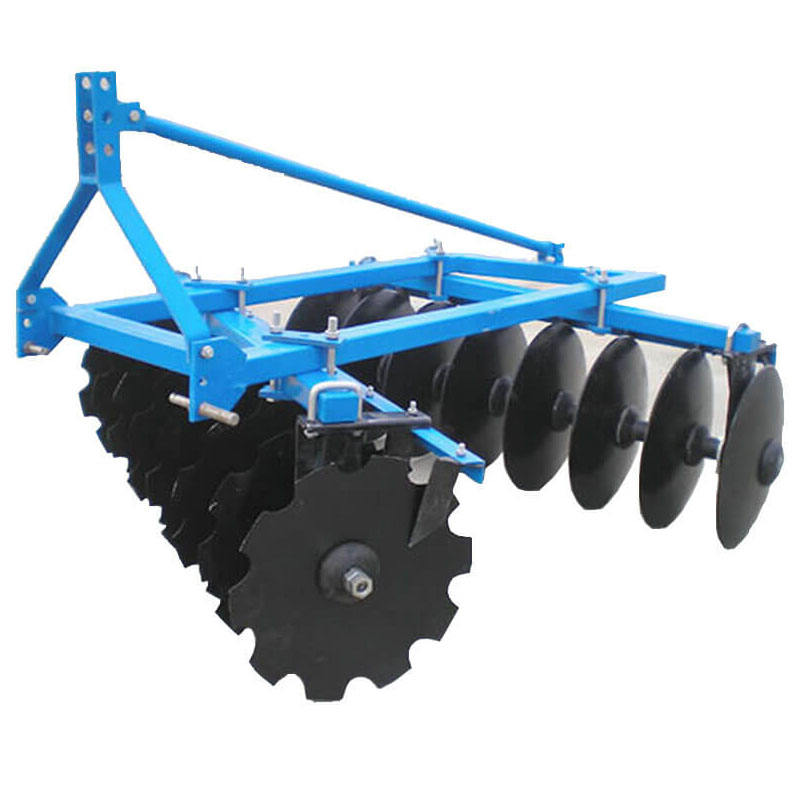

{heavy harrows for sale} Linght duty disc harrow picture :

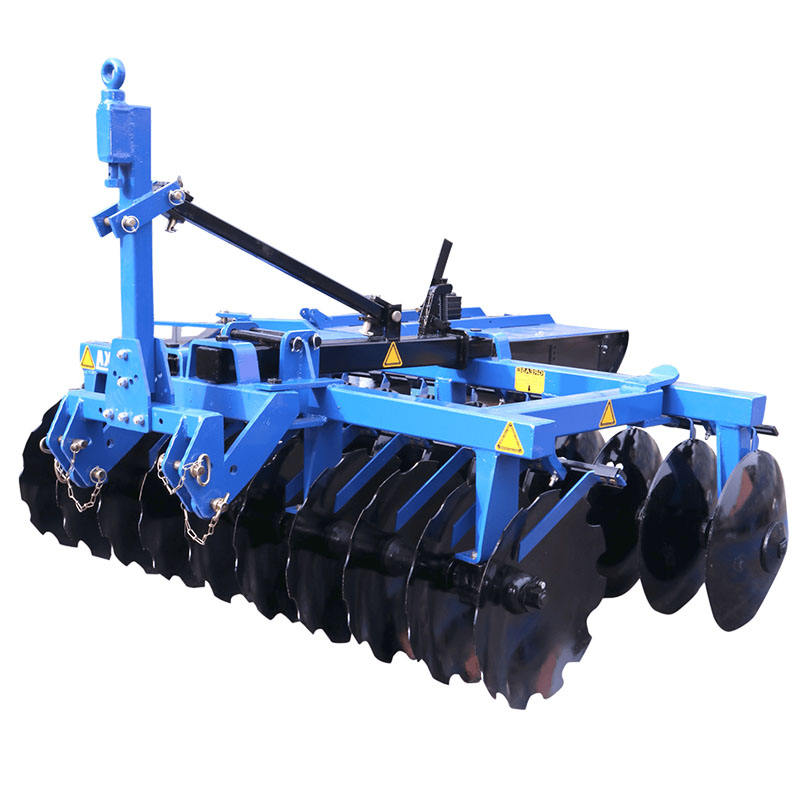

{heavy harrows for sale} Middle duty disc harrow picture :
{heavy harrows for sale} Heavy duty disc harrow picture :
{heavy harrows for sale} Package is as following :
The light duty disc harrow package is 10sets packed in one iron case ,the package size is 2200*1000*720mm. so one 20'' containter can hold 90sets or 110sets.
The heavy duty disc harrow is packed in pallet and iron case, and if you want to hold more sets, i will suggest you to do the nude package, so one 20 feet containter will hold 16sets .
My name is Lyna zhang .
Connect with me ... Add Whatsapp : 86-15165936190
