Vietnam Special Design Widely Used 44 Series Weasler Replacement PTO Shaft Tariff-free

PTO Shaft Replacement Of Weasler 44 SeriesOur power cord has many parts to choose from in the following product categories:Power output shaft and components: It is required to maximize the power output performance of the equipment.Tractor connecting rod: we have all kinds of 5-level, 8-level, lockin......

Send Inquiry

Product Description

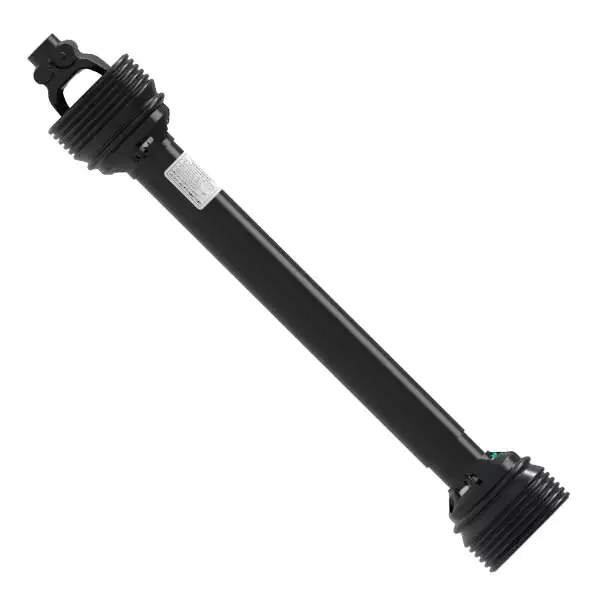

PTO Shaft Replacement Of Weasler 44 Series

Our power cord has many parts to choose from in the following product categories: Power output shaft and components: It is required to maximize the power output performance of the equipment. Tractor connecting rod: we have all kinds of 5-level, 8-level, locking and T-handle hitch pins, as well as round, snap and square lock pins. Camera system: use our camera observation system to improve the visibility, productivity and safety of the workplace. Spray and parts can be selected from the necessary spray parts of many drum pumps and other top manufacturers (such as sprayers, Delavan, crop care, etc.). Power transmission: You can find several Carlisle V-belt options to transfer power from the engine of the equipment to other important parts.

Specifications Of 44 Series PTO shaft

Bore 1	1.37 inches	35 mm
Bore 1	1 3/8-6 SPLINE
Bore 2	Minus End Yoke
Compressed (Closed) Length	38.00 inches	965 mm
Compressed Overall Length	47.94 inches	1218 mm
Connection 1	QUICK DISCONNECT
Connection 2	YOKE ARMS
Extended Length	61.75 inches	1568 mm
Extended Overall Length	71.69 inches	1821 mm
HP@1000RPM	119 HP	89 kilowatts
HP@540RPM	77 HP	57 kilowatts
Length	47.94 inches	1218 mm
Outside Diameter	7.28 inches	185 mm
Shipping Dimensions	45" L × 7.28" H × 7.28" W	114cm L × 18cm H × 18cm W
Shipping Volume	2384.93 in3	39082 cm3
Shipping Weight	50.00 pounds	23 kilograms
Weight	50.00 pounds	23 kilograms

Weasler replace PTO shaft Whether you need to replace the PTO shaft for the tractor or are looking for new parts for the implement, you can find the appropriate parts from Weasler. They have a range of options available, including standard PTO shaft and wide-angle shaft, so you can find the perfect solution to meet your needs. Tractor PTO shaft The power take-off is the key component of the ag equipment, enabling you to use the machine without connecting each component separately. They allow you to rotate the ag machine between 540 and 1000 RPM, providing the torque and power required for all work tasks. They are available in various lengths to fit different tractors and accessories, including shearbolt and slip clutch (torque limit) models. The correct size is essential to ensure that the shaft is installed correctly and that you can easily connect the machine to the tractor. KIT-YOKE, SPIDER&BEARING Wesler provides yoke, cross and bearing kits for various implements. They are designed to provide high torque capacity and long life, and are made of high-quality steel to improve strength. They also include a through-hole design to prevent debris from gathering inside and can be interchanged with other Wesler yokes and standard yokes on the market. A complete set of yoke is provided. Each yoke provides many functions, making it easier to install and remove the drive shaft. Cast iron collar, through-hole design and super-heavy material are used to ensure that the yoke remains intact for a long time. These yokes are available in various sizes to adapt to various implements, and can be purchased separately or as part of the whole set. They are compatible with all Wesler tractors and implements, and have the same components as Wesler's domestic and metric product lines. The yoke design matches Wesler's 77 series drive shaft. This ensures the perfect match with your implement and tractor, and provides excellent driving force for your machine. Weasler's 77 series drive shaft is the most important solution in agriculture, lawn and lawn industry, providing complete assembly from tractor to implement. They are designed for continuous and heavy-duty use and meet the requirements of large farms and contractors. They come in a range of different styles, most of them in North America and metric versions. Wesler's drive shaft is made of the highest grade aluminum and stainless steel, with maximum durability, and 360 ° full friction welding is used on the protective cover. They are also black, resistant to ultraviolet and ozone, and have a cold weather impact grade of - 35 degrees Celsius, meeting all applicable safety standards. When determining the size of the PTO shaft, it is important to know how to measure the length of the yoke to the end. The yoke is a circular cylindrical metal plate, which is installed at the end of the shaft. It is a key part of the PTO system and must be properly sized to ensure safe and reliable connection of the equipment.

Weasler 44 Series PTO Shaft Parts

PTO Shaft Application

PTO shaft size Whether buying a new implement with PTO shaft or replacing an old one, most PTO shafts need to be cut to fit the length between the tractor and the implement using it. This is the simple process we outlined in the following steps. * Connect the implement to the tractor three-point linkage without connecting the PTO. * To determine the length of the required PTO shaft, the distance between the groove on the tractor PTO output shaft and the implemented PTO output shaft must be measured. * After completing the measurement, we usually recommend to take an additional 75mm from the PTO shaft as a buffer to facilitate connection. If there is no buffer device, it may not allow any movement, damage the universal joint on the PTO shaft or damage the implement or tractor. To help explain, we use the following example: Length of new PTO shaft=1000mm from head to tail. Distance between tractor output shaft and implement output shaft=800mm Additional buffer=75mm Therefore, in order to obtain the measurement results, we need to perform the following operations: PTO shaft length – distance between tractor and implement+75mm buffer. It is necessary to remove 1000mm – 800mm+75mm=275mm from the PTO shaft. * The easiest way to cut the PTO shaft to the correct size is to divide it in half so that there are internal and external parts. It is not necessary to remove the plastic cover. In the above example, we need to remove 275mm from the length, so we need to cut 275mm and 275mm from the plastic cover and steel pipe inside and outside the PTO shaft. First, measure the required amount on the plastic power take-off end cover, mark it with words, and then cut off the excess part. Then measure the required quantity from the steel pipe and cut it with a hacksaw or angle grinder. Repeat the above steps for the other half of the PTO shaft. * You need to ensure that all burrs are removed from the cut end of the PTO shaft to make the PTO slide correctly. We also recommend that you apply some grease on both sides of the PTO before reassembly. After reassembling the PTO shaft, it can be connected to the tractor and implement.

PTO shaft of agricultural gearbox The agricultural gearbox and PTO shaft are two basic tractor components that work together to transmit power. The PTO shaft rotates at 540 to 1000 rpm. The yoke connects the agricultural gearbox and PTO shaft at both ends. Depending on the application, they may have higher or lower torque ratings. As a professional supplier of agricultural machinery parts, we also provide many PTO shafts for sale. Contact us now for more information!

We also supply agricultural gearbox:https://planetary-gearboxes.en.alibaba.com/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
