Product Description

Coating Industry solution

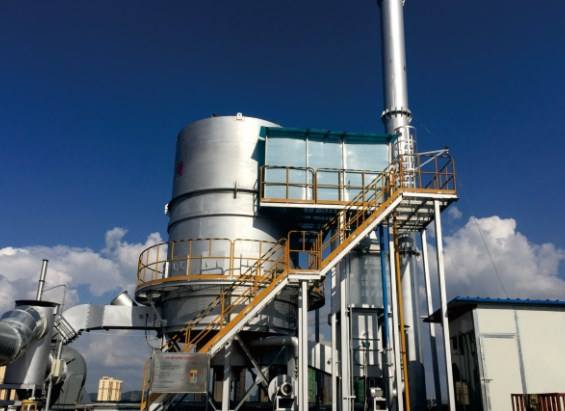

At present, our rotary RTO has been widely used in waste gas treatment of SBS asphalt waterproof coiled materials and other products.

Characteristics of waste gas: large air volume, complex composition, oil and particulate matter
Source of waste gas: waste gas from batching reactor, waste gas from asphalt storage tank area, waste gas from asphalt forming line oil coating tank and water bed
Waste gas components: more than 80 kinds of polycyclic aromatic hydrocarbons such as benzopyrene, benzoanthracene, carbazole, etc

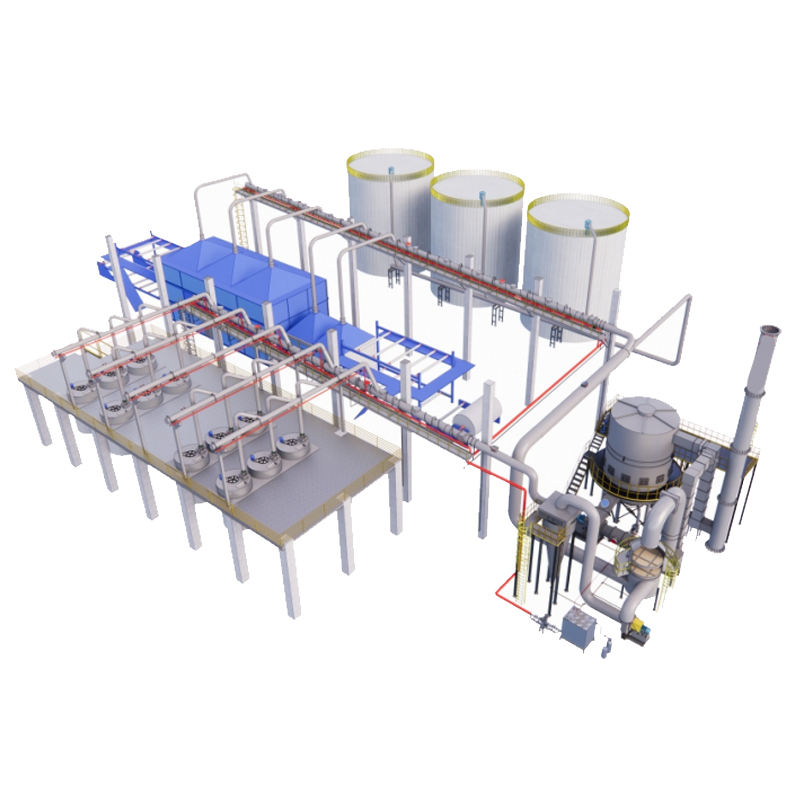

Process scheme: waste gas capture + pipeline transportation + pipeline fire protection system + cyclone oil removal + tower filtration + heat tracing + rotary RTO
Waste gas concentration: 200mg/m³~400mg/m³
Emission limit: NMHC≤10mg/m³

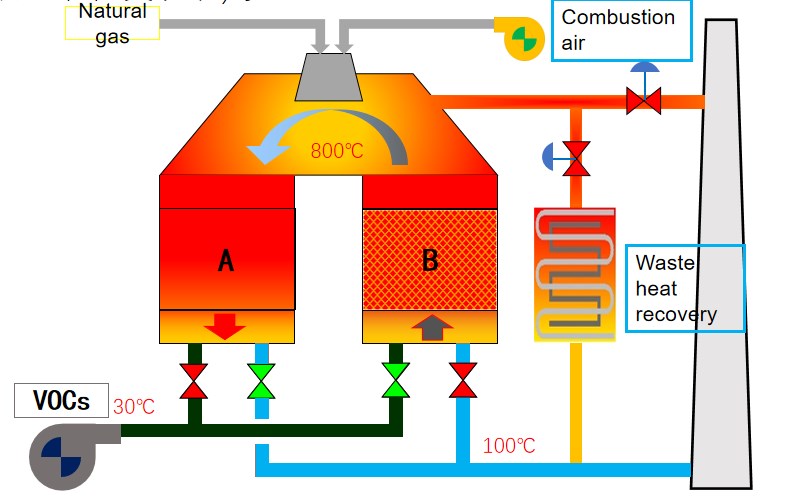

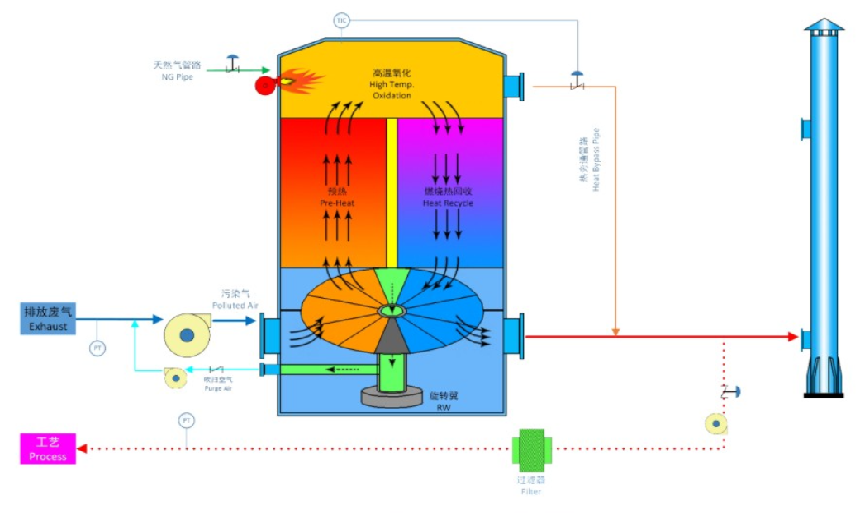

Principle of RTO (Thermal Storage Oxidation Incinerator)

The impact of VOCs on the atmosphere is one of the main causes of haze.

Using an RTO device to incinerate VOCS waste gas at high temperatures, achieving standard emissions. During the combustion of VOCS waste gas, a large amount of heat is released to maintain the reaction. When the concentration is high, waste heat recovery can also be carried out, achieving the goal of "environmental protection+energy conservation".

Selection of RTO Equipment

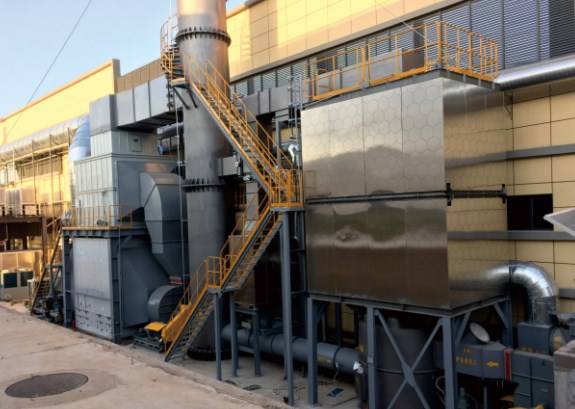

3 Room RTO (3 heat storage chambers)

The smoke exhaust temperature of the three room RTO is high, the energy consumption is high, and the operating cost is high. The switching valve works 520000 times a year and has a short lifespan.

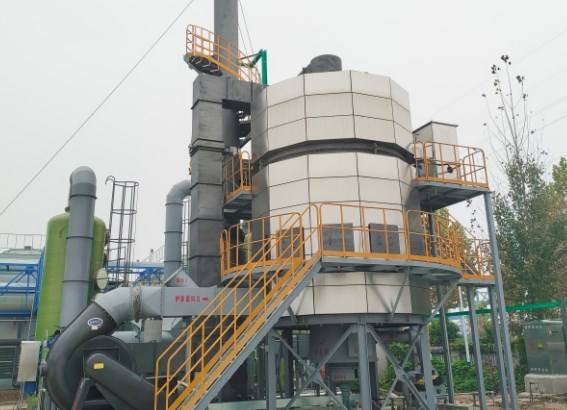

Rotating RTO (12 heat storage chambers)

The rotary RTO smoke exhaust temperature is less than 80 degrees, with low energy consumption and low operating costs. The rotary valve operates continuously without switching, and has a long service life.

RTO category	Three bed RTO	Rotating RTO
Thermal storage utilization rate	2/3	5/6
Volume	130%	65%
Comprehensive thermal efficiency	92%	95%
Smoke exhaust temperature	100-150℃	50-80℃
Fluctuations in pipeline pressure	±250Pa	±50Pa

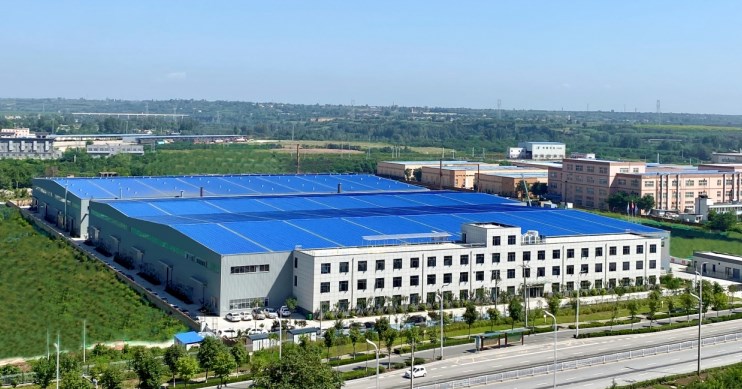

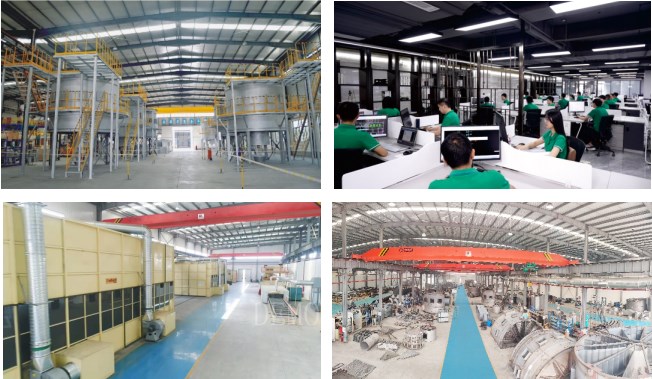

Raydafon Environmental Technology Co., Ltd. is a high-end equipment manufacturing high-tech enterprise focusing on the comprehensive treatment of volatile organic compounds (VOCs) exhaust gas and carbon emission reduction and energy saving technology, with four core technologies of heat energy, combustion, sealing and automatic control; Have the ability of temperature field simulation and air flow field simulation modeling and calculation; It has the ability to test the performance of ceramic heat storage materials, the comparison and selection of zeolite molecular sieve adsorption materials, and the characteristics of VOCs organic matter incineration and oxidation at high temperature. The company has built RTO technology research and development center and exhaust gas carbon emission reduction engineering technology center in the ancient city of Xi'an, and a 30000 production. It is a leading manufacturer of RTO equipment and zeolite molecular sieve runner equipment in the world. Yurcent's core technical team comes from the Aerospace Liquid Rocket Engine Research Institute (Aerospace sixth Institute); The company has more than 360 employees, including more than 60 R & D technical backbones, including 3 researcher level senior engineers, 6 senior engineers and 2 thermodynamic doctors. With Rotary Valve Regenerative Thermal Oxidizer(RTO) and zeolite molecular sieve adsorption and concentration runner as core products, combined with its own environmental protection and thermal energy system engineering expertise, the company can provide customers with comprehensive solutions for industrial waste gas treatment and thermal energy utilization and carbon emission reduction under various working conditions.

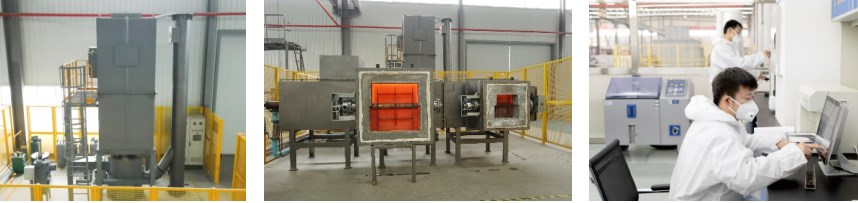

1.Thermal storage oxidation technology test bench

2.High temperature sealing technology and performance testing test bench for valves

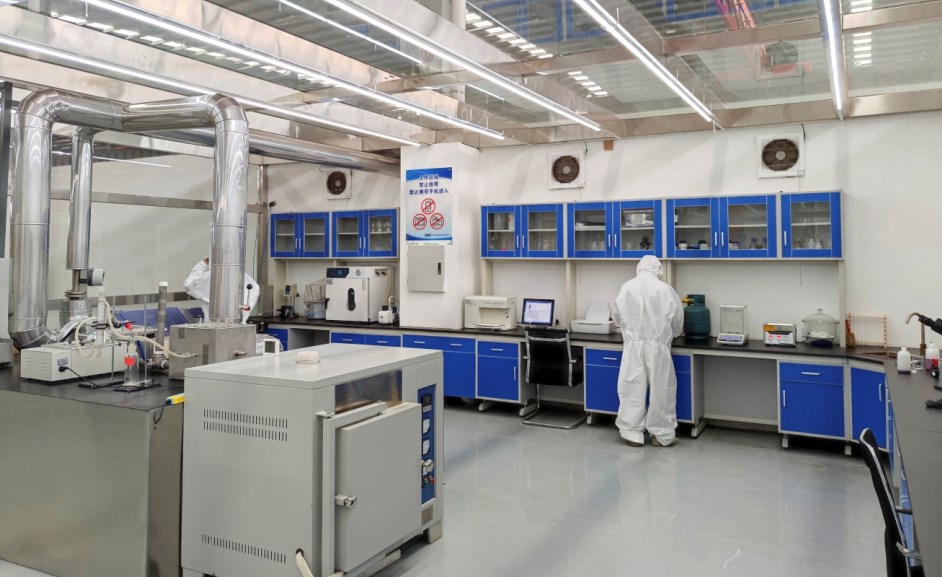

3.Laboratory of Zeolite Molecular Sieve Adsorption Efficiency

4.Combustion Control Technology and Ceramic Thermal Storage Material Energy Efficiency Test Bench

5.Zeolite Wheel and Catalyst Efficiency Test Bench
