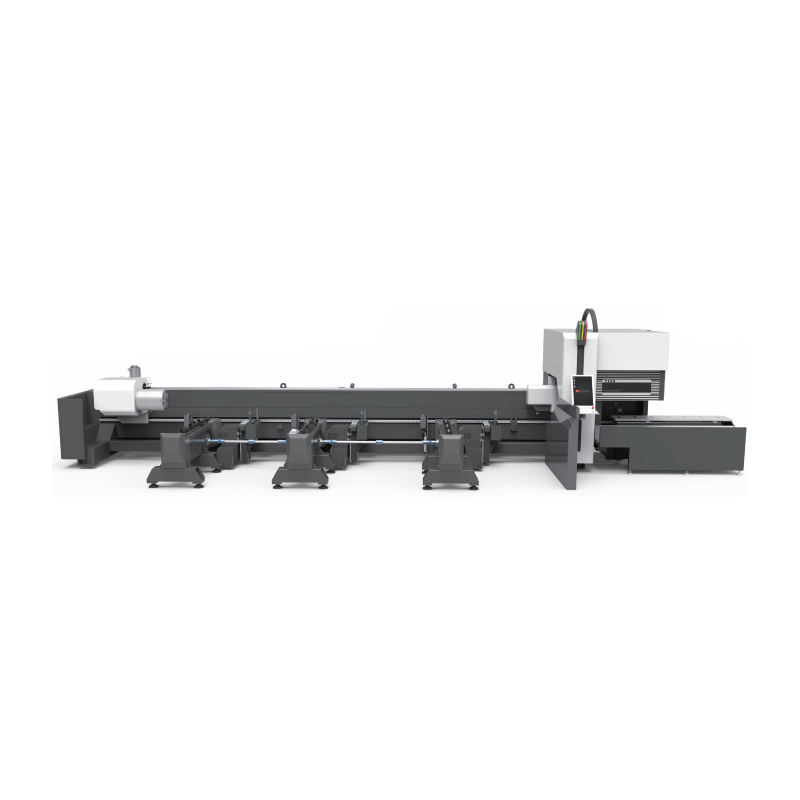

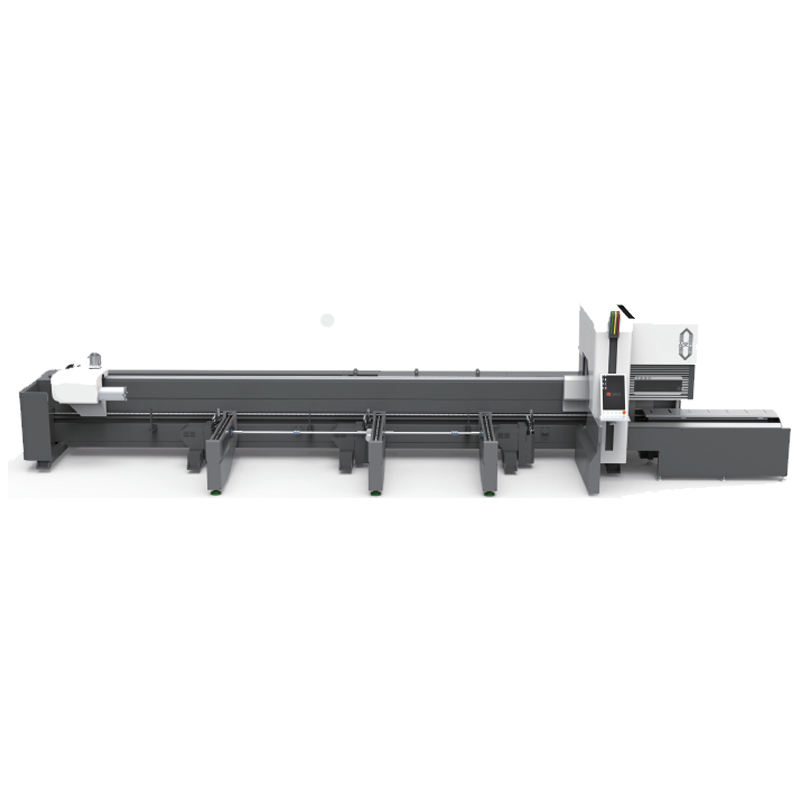

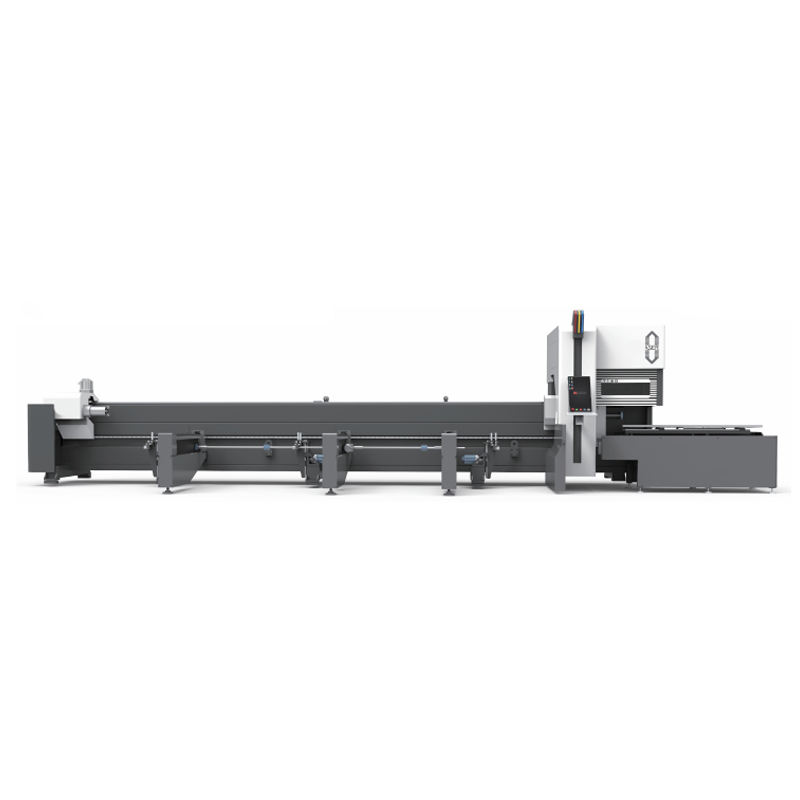

High-Speed 450mm Fiber Metal Laser Cutting Machine Side Mounted Three Chuck Cypcut Stainless Steel Structure for Rubber BMP

Raydafon Guoup's High-Speed 450mm Fiber Metal Laser Cutting Machine Side Mounted Three Chuck Cypcut Stainless Steel Structure for Rubber BMP delivers precision cutting with enhanced speed and durability, ideal for industrial users seeking efficiency in metal fabrication. Its advanced features ensure superior performance and reliability, solving workflow challenges and boosting productivity.

Send Inquiry

Product Description

Side-mounted bed with finite element analysis verified integral profile welded structure. Finished after annealing to eliminate internal stress, which improves the rigidity and stability of the machine, and longer service life

MAIN MACHINE PARTS

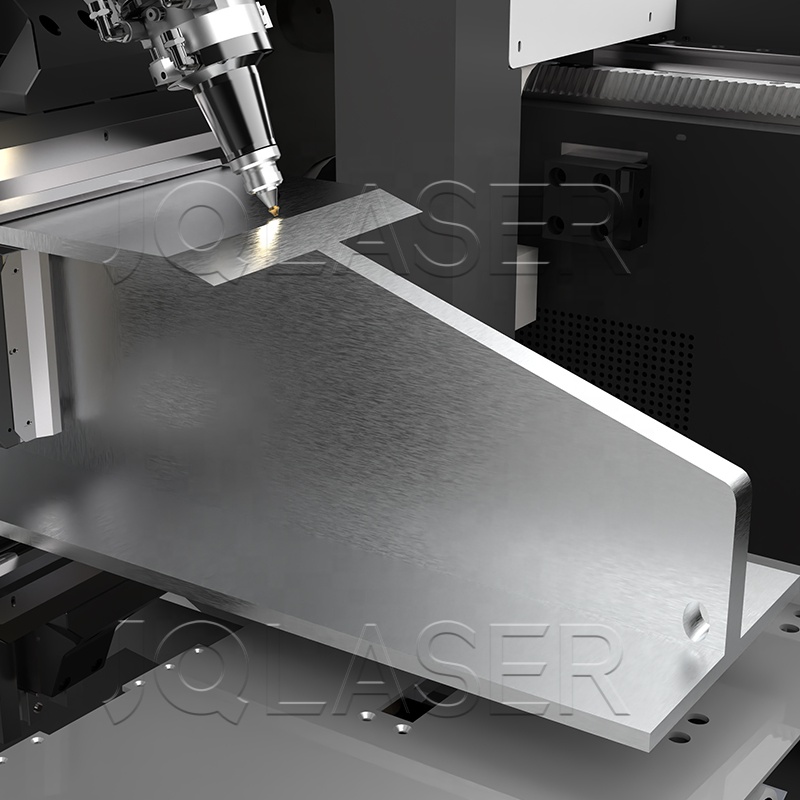

With the new TubeCutter cutting head equipped on the FLT-9045HT, you will produce high quality parts. With automatic focus and
integrated laser parameter management, there is no need for adjustments.

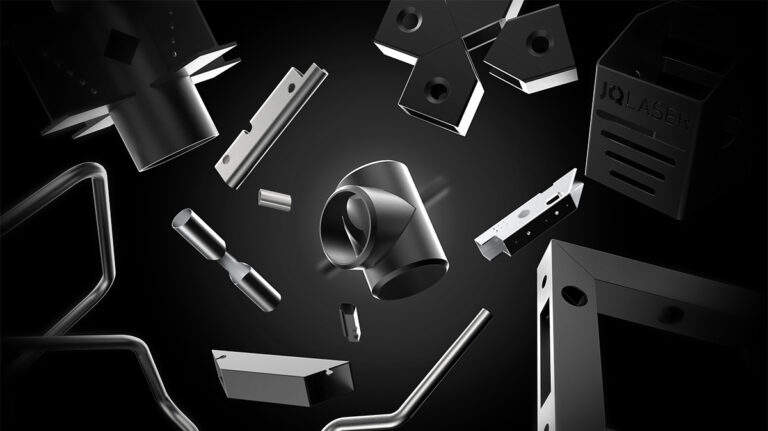

PRODUCT APPLICATION

Round tube diameter range 50-450mm (change according to the size of the chuck), can support multiple tube type cutting, channel,
angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard
semi-automatic loading, more efficient, convenient and stable

Model			FLT-9045HTS
Maximum cut pipe length			Cutting length from 7000 to 12000 mm
Cut pipe diameter			15~450mm (circle of workpiece)
Pipe thickness			Depends on the power
Cutting accuracy			±0.1mm
X, Y axis positioning accuracy			±0.05/1000mm
X, Y axis repeat positioning accuracy			±0.03/1000mm
Acceleration			0.8G m/s²
Maximum operating speed			60 m/min
Maximum weight for each tube			≤6000Kg
Chuck rated speed			60rpm
Mainframe shape			about 22000×6000×2500mm
Laser power			2000w/3000W/4000W/6000W/8000W

CHOOSE YOUR LASERTUBE

Make Your Choice

Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.

Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.

Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?

Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
