AUBURN Model 5 Series Planetary Gearbox Replacement with Shaft Output Drives for Various Applications

Send Inquiry

Product Description

Model 5 Series Planetary Gearbox The Model 5 series planetary gearbox is another type of gearbox that uses planetary gears to transmit torque and speed between the input and output shafts. Similar to the Model 4 series, it consists of a central sun gear, multiple planetary gears, and an outer gear ring. However, the Model 5 series is designed for higher torque applications than the Model 4 series and is typically used in heavy-duty industrial machinery, mining equipment, and ship applications. It has various transmission ratios and can be customized to meet specific torque and speed requirements. Model 5 Series Planetary Gearbox Some key features of the Model 5 series planetary gearbox include high torque capacity, low noise operation, high efficiency, and low backlash. It is also designed to be easily integrated with various types of motors, making it a popular choice for applications that require high power density and precise control. In addition, the Model 5 series planetary gearbox can withstand harsh operating conditions, including high impact loads, extreme temperatures, and exposure to water and dust. These characteristics make it a reliable and durable choice for various industrial and marine applications.

FEATURE CHART: MODEL 5 SERIES,SHAFT OUTPUT DRIVES, SINGLE REDUCTION (Style “T”)

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 5

MOTOR PILOT/HUBS

INPUT SHAFT OPTIONS

SAE A
SAE B

1-1/2”Keyed

A
B

KO

MOTOR INPUT SPLINE

INPUT SHAFT OPTIONS

13T - 16/32
1”- 6B
14T - 12/24
15T - 16/32
INPUT SHAFT OPTIONS

13
6B
14
15
O

RATIO OPTIONS

3.68, 4.11
4.69, 5.54
6.9

03, 04A
04B, 05
06

04A

OUTPUT SHAFT OPTIONS

1-3/4 J501 Taper
17T-12/24 Spline
23T-12/24 Spline
23T-12/24 Short
1.75 Keyed
2.00 Keyed
2.00 Hollow
1.75 Hollow
2.00 Keyed
2.00 Round
2.56 Round
2.00 Hex

T1
17
23
23S
K1
K2
K3
K4
K5
A1
A2
H1

BRAKE

160N.m
260N.m
330N.m
440N.m
Without Brake

B4D
B4F
B4H
B4L
WO

Example of complete order code:

04A

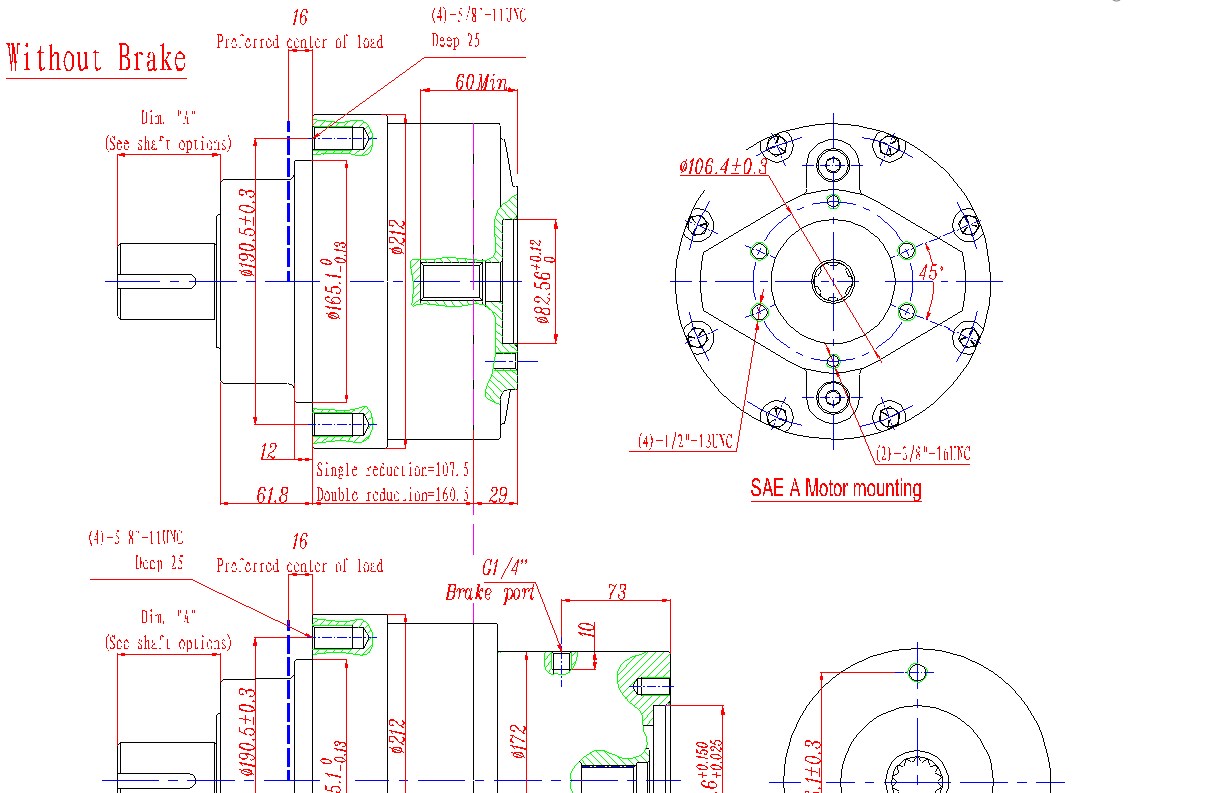

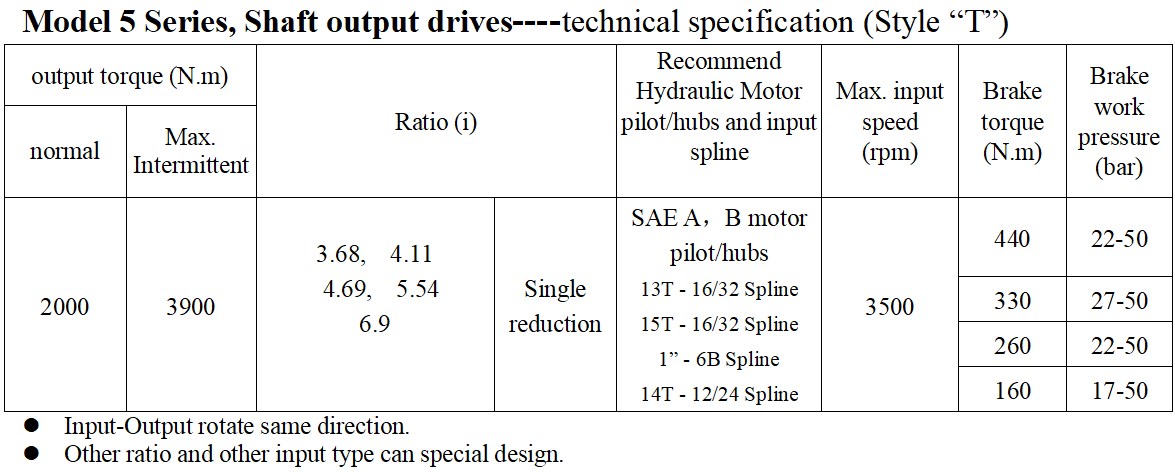

Model 5 Series, Shaft output drives---dimensions (Style “T”)

How to maintain the model 5 series planetary gearbox? Proper maintenance of the Model 5 series planetary gearbox is crucial for ensuring its reliable and efficient performance in demanding applications. Here are some important tips for maintaining the Model 5 series planetary gearbox: Model 5 Series Planetary Gearbox 1. Check lubrication: Regularly check the lubrication of the gearbox to ensure it is fully lubricated. Use recommended lubricants and replace them at recommended intervals. Proper lubrication is crucial for preventing wear and tear on gears and other components. 2. Check for leaks: Check for leaks around the gearbox. If any leaks are found, immediate action should be taken to prevent damage to the transmission and other components. 3. Check the backlash: Regularly check the backlash of the gearbox to ensure it is within the recommended range. Excessive backlash may damage the gears and reduce the accuracy of the system. 4. Check for wear and damage: Regularly inspect the gearbox for wear and damage, such as cracks, debris, or other signs of wear. If any damage is found, please handle it immediately to prevent further damage to the gearbox and other components. 5. Check installation: Check the installation of the gearbox to ensure it is fully secured. Loose installation may cause vibration and damage to the gearbox and other components. 6. Keep the gearbox clean: Keep the gearbox clean and free of dirt and debris. Dirt and debris may damage gears and other components, and reduce the efficiency and performance of the gearbox. 7. Follow the manufacturer's recommendations: Follow the manufacturer's recommendations for gearbox maintenance and operation. This includes recommended lubricants, operating temperatures, and other important information. By following these tips, you can help ensure the reliable and efficient performance of the Model 5 series planetary gearbox. Regular maintenance and inspections also help prevent expensive repairs and shutdowns in industrial or marine applications.

Application of 5 Series Planetary Gearboxes Considering many factors, choosing the appropriate Model 4 series planetary gearbox for your application may be complex. When choosing a Model 4 series transmission, it is important to remember the following key factors: 1. Torque requirements: The torque requirements of your application will determine the size and transmission ratio of the gearbox you need. It is necessary to ensure that the gearbox you choose has sufficient torque capacity to handle your application load. 2. Speed requirements: The speed requirements of your application will affect the transmission ratio you need. Choosing a gearbox with a gear ratio that allows you to achieve the desired output speed is crucial. 3. Installation options: The Model 4 series gearbox has various installation options, including flange, base, and shaft installation. It is important to choose installation options that are compatible with your application. 4. Input and output options: The Model 4 series gearbox has a range of input and output options, including solid shaft, hollow shaft, and electric options. It is important to choose input and output options that are compatible with the application. 5. Environmental factors: The environmental factors you apply, such as temperature, humidity, and exposure to chemicals, can affect the type of gearbox you need. It is important to choose a gearbox designed to operate under application environmental conditions. 6. Maintenance requirements: The maintenance requirements of the gearbox will affect the total cost of ownership of your application. It is important to choose a gearbox with low maintenance requirements and long service life. 7. Specific application requirements: Depending on your application, other specific requirements may need to be considered when selecting a gearbox, such as noise level, accuracy, and impact load capacity. Overall, selecting the appropriate Model 4 series planetary gearbox for your application requires careful consideration of various factors. By considering torque requirements, speed requirements, installation options, input and output options, environmental factors, maintenance requirements, and specific application requirements, you can choose a gearbox that is very suitable for your needs.

Our Factory At present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting modern computer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.

Other Types of Planetary Gearboxes

For more models or customization, please click here!
