Customizable ODM Industrial Gearbox with Hardened Casting Iron MC Series Parallel Shaft Featuring Hardened Helical Gears

MC Series Industrial GearboxMC series industrial gearbox has the following 2 types:MC.H Series Parallel Shaft GearboxMC.B Series Right Angle GearboxComponents:1. Housing:Casting Iron Box2. Gears:Hardened Helical Gears (MC.H Series Parallel Shaft Gearbox)Hardened Helical Bevel Gears (MC.B Series Righ......

Send Inquiry

Product Description

MC Series Industrial Gearbox

MC series industrial gearbox has the following 2 types:

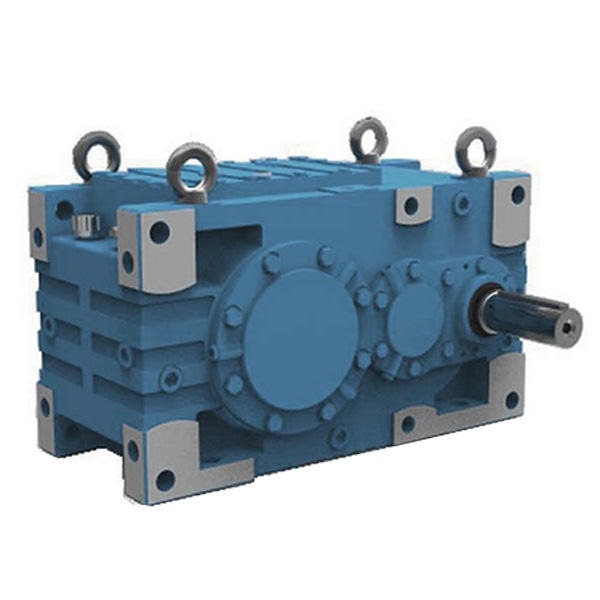

MC.H Series Parallel Shaft Gearbox

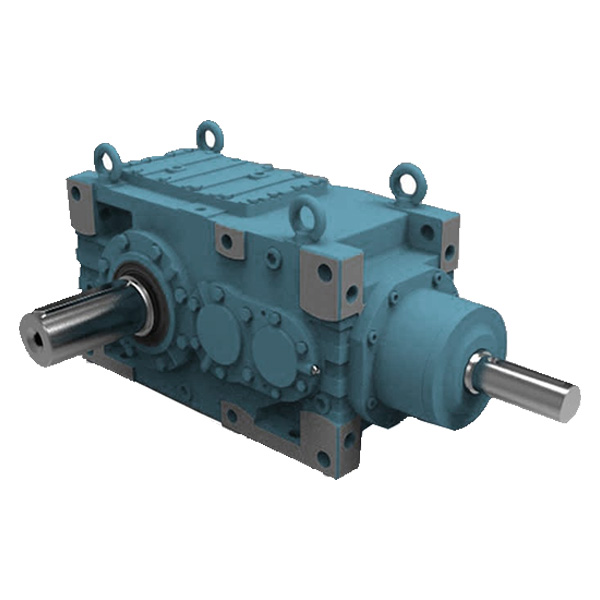

MC.B Series Right Angle Gearbox

Components:
1. Housing:
Casting Iron Box
2. Gears:
Hardened Helical Gears (MC.H Series Parallel Shaft Gearbox)
Hardened Helical Bevel Gears (MC.B Series Right Angle Gearbox)
3. Shafts:
Parallel Shafts (MC.H Series)
Orthogonal Shafts (MC.B Series)
Output Shaft: Solid Shaft, Hollow Shaft
4. Modular Accessories:
Shrink Disk, Mounting Flange, Motor Flange, Cooling Fan, Torque Arm, Double Input Shaft
Models:
Total 8 Model Sizes: MC02 ~ MC09
Features:
1. Optional mounted by any one side of six sides.
2. Compact structure, light weight.
3. Rigid welded box structure, heavy duty and high load capacity.
4. Modular scheme and design for special conditions, adapting to the diverse needs.
5. 2 stage or 3 stage drive gearbox.

Input Power	7.05 KW-1066 KW
Output Speed	15.5-267.1 rpm
Output Torque	8000 N.m-66000 N.m
Transmission Ratio	7.1-112
Transmission Stage	2-3 Stage

Applications:
Crushing, Mixing, Building Materials, Lifting, Bulk Material Handling, Chemical, Food Processing, Wood, Paper, and Environmental protection Industries.
Installation:
Mounting Type: Horizontal Mounting, Vertical Mounting, Upright Mounting
Installation Method: Foot Mounted, Torque Arm Mounted
Lubrication:
Selecting the appropriate lubrication method according to the lubricating oil level.
Lubrication method:
Splash lubrication - Low oil level (Horizontal Mounting)
Immersion lubrication - High oil level (Vertical Mounting, Upright Mounting)
