Model 6 Series Planetary Gearbox Replacement of AUBURN (Shaft Output Drives Style F and R)

Send Inquiry

Product Description

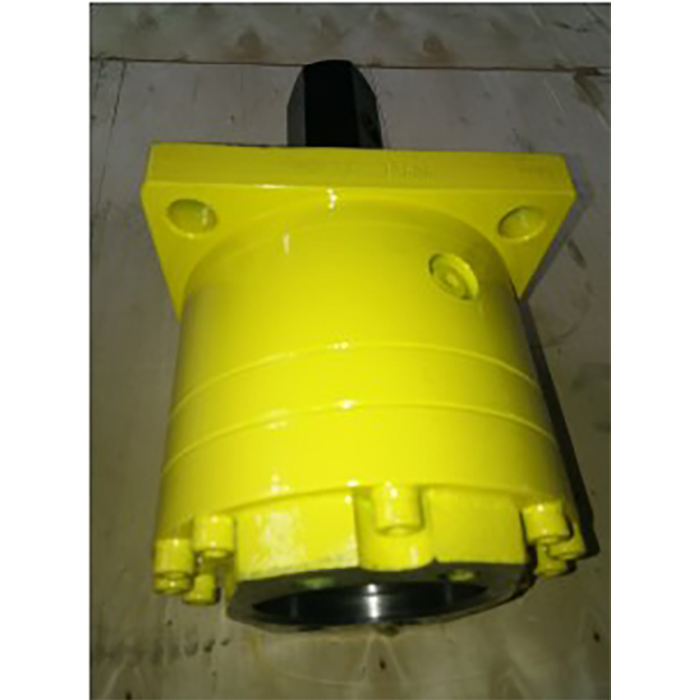

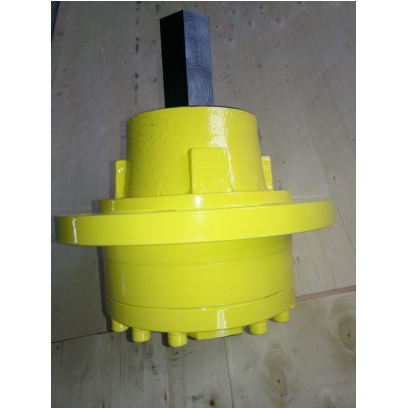

Model 6 series planetary gearbox The Model 6 series planetary gearbox is a gearbox that uses planetary gears to transmit torque and speed between the input and output shafts. It is designed for high torque applications, where accuracy and reliability are key factors. The Model 6 series gearbox is typically used in heavy-duty industrial machinery, mining equipment, and ship applications. The model 6 series planetary gearbox is similar in design to the models 4 and 5 series gearbox, but it has several advantages compared to these models. One of the main features of the Model 6 series transmission is its high torque capability, with a torque range of 500000 Nm to 5000000 Nm. This high torque capability is achieved through the use of high-strength materials and advanced manufacturing technology. Another feature of the Model 6 series planetary gearbox is its low noise operation. The gearbox adopts optimized gear tooth shape and precision manufacturing design, which can reduce noise and vibration levels. This makes it an ideal choice for applications where noise reduction is very important. The Model 6 series planetary gearbox is also designed to be easily integrated with various types of motors, making it a popular choice for applications that require high power density and precise control. It has multiple transmission ratios and can be customized to meet specific torque and speed requirements. In addition, the Model 6 series planetary gearbox can withstand harsh operating conditions, including high impact loads, extreme temperatures, and exposure to water and dust. It also has corrosion resistance and is suitable for marine and offshore applications. Overall, the Model 6 series planetary gearbox is a reliable and durable solution for high torque applications, with precision and reliability being key factors. Its high torque capacity, low noise operation, and easy integration with various types of motors make it a popular choice for various industrial and marine applications.

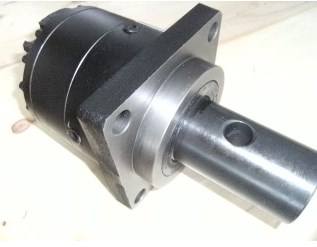

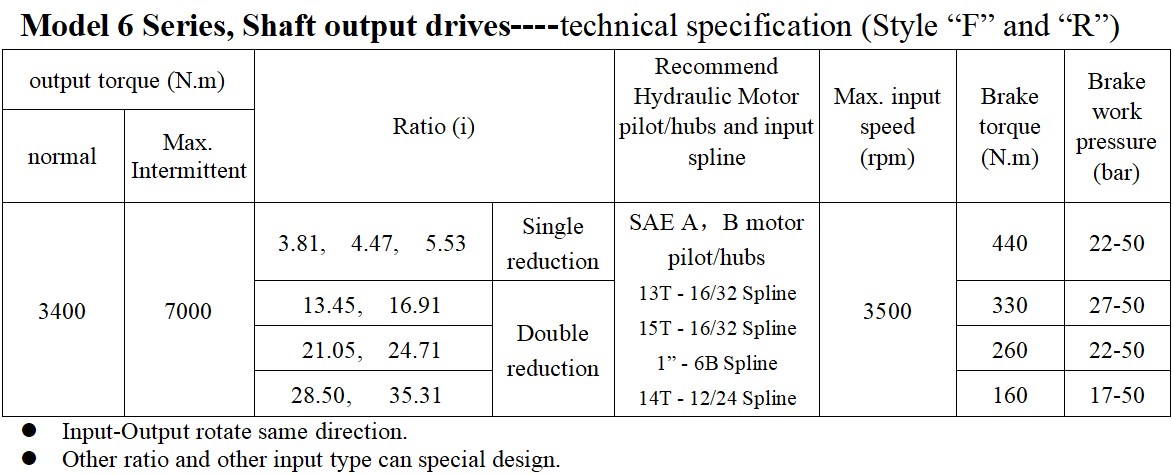

FEATURE CHART: MODEL 6 SERIES,SHAFT OUTPUT DRIVES, SINGLE and DOUBLE REDUCTION (Style “F” and “R”)

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 6

6F
6R

MOTOR PILOT/HUBS

INPUT SHAFT OPTIONS

SAE A
SAE B

1-1/2”Keyed

A
B

KO

MOTOR INPUT SPLINE

INPUT SHAFT OPTIONS

13T - 16/32
1”- 6B
14T - 12/24
15T - 16/32
INPUT SHAFT OPTIONS

13
6B
14
15
O

RATIO OPTIONS

3.81, 4.47, 5.53
13.45, 16.97, 21.53
24.71, 28.50, 35.31

03, 04, 05
13, 16, 21
24, 28, 35

OUTPUT SHAFT OPTIONS

1-3/4 J501 Taper
17T-12/24 Spline
23T-12/24 Spline
23T-12/24 Short
1.75 Keyed
2.00 Keyed
2.00 Hollow
1.75 Hollow
2.00 Keyed
2.00 Round
2.56 Round
2.00 Hex

T1
17
23
23S
K1
K2
K3
K4
K5
A1
A2
H1

BRAKE

160N.m
260N.m
330N.m
440N.m
Without Brake

B4D
B4F
B4H
B4L
WO

Example of complete order code:

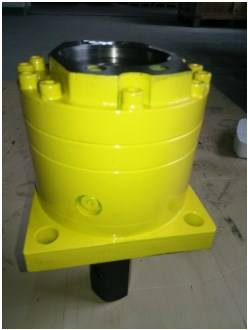

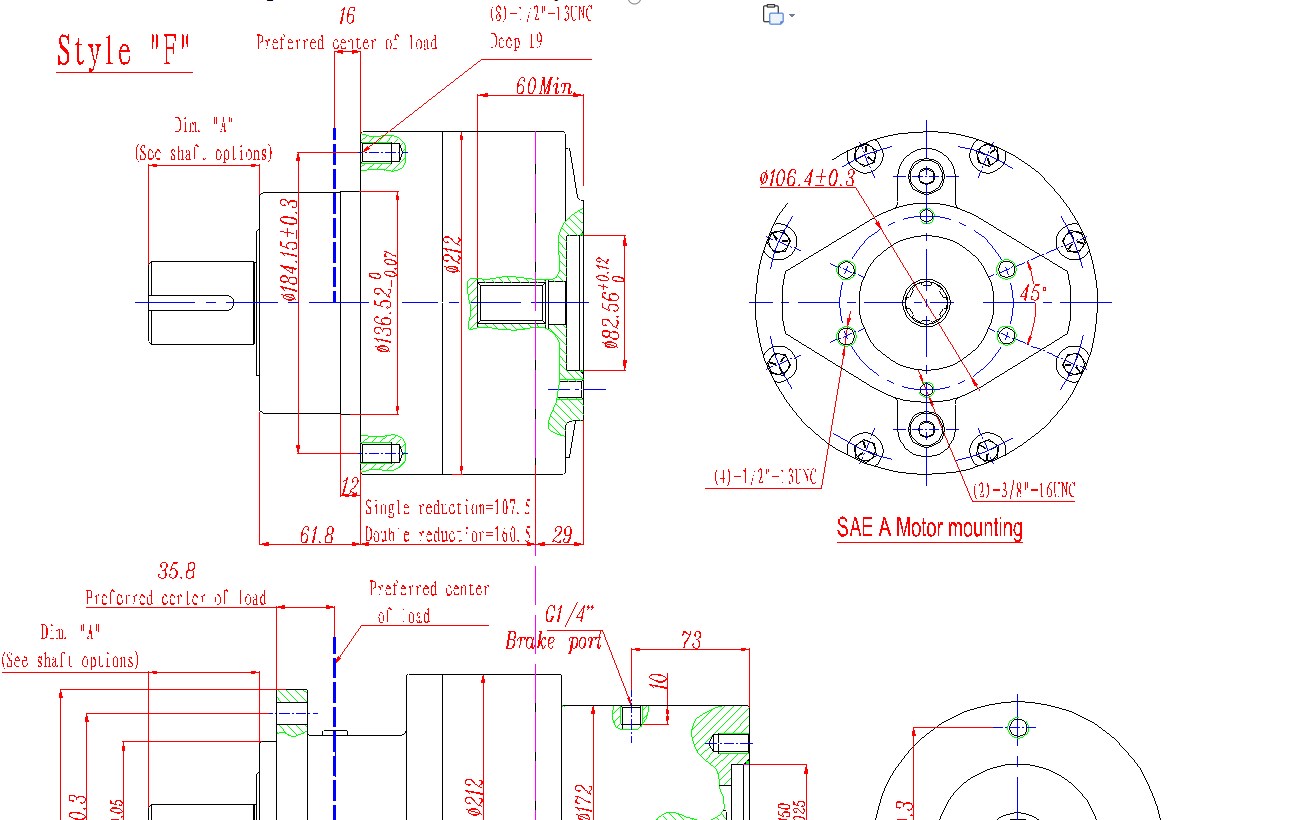

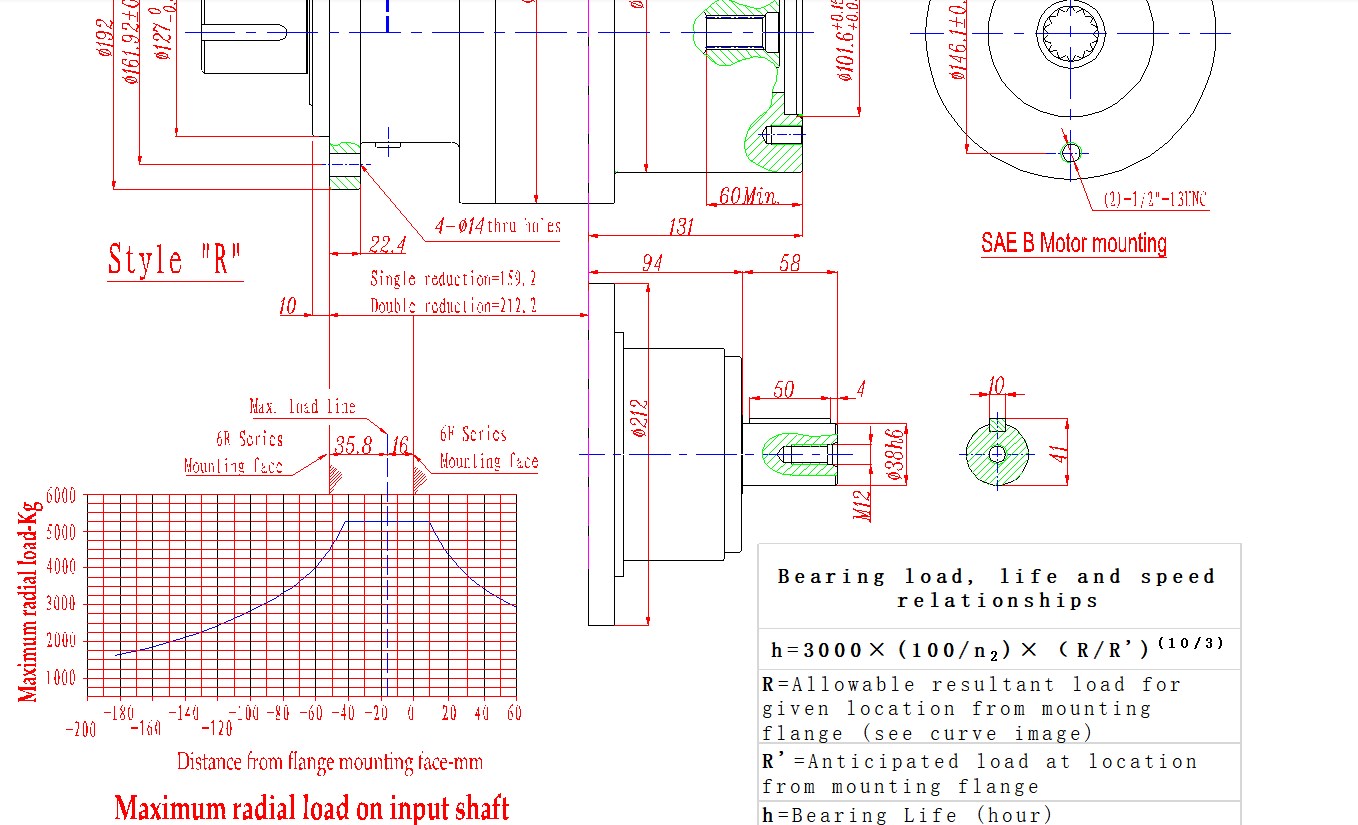

Model 6 Series, Shaft output drives---dimensions (Style “F” and “R”)

What are the "F" and "R" styles of the model 6 series planetary gearbox? The Model 6 series planetary gearbox comes in two models, "F" and "R", to meet different application requirements. The "F" type gearbox is a flange mounted gearbox designed specifically for applications that require the gearbox to be directly installed on machines or equipment. It adopts a compact design that minimizes the overall size and weight of the gearbox, making it very suitable for applications with limited space. The 'F' type gearbox also has a symmetrical output shaft, which can be easily integrated with various types of devices. The 'R' type gearbox is a foot mounted gearbox designed specifically for applications that require the gearbox to be installed on a separate base or platform. Its sturdy and durable design can withstand high impact loads and other harsh operating conditions. The 'R' type gearbox also has parallel output shafts, which can be easily integrated with various types of devices. Both the "F" and "R" transmissions have a series of transmission ratios that can be customized to meet specific torque and speed requirements. They are also designed to be easily integrated with various motors, making them a popular choice for applications that require high power density and precise control. Overall, the choice between "F" and "R" transmissions depends on the specific requirements of the application. The "F" type gearbox is very suitable for applications with limited space and requiring direct installation on machines or equipment. The 'R' type gearbox is very suitable for applications that require installation on a separate base or platform and need to withstand harsh operating conditions. Model 6 series planetary gearbox The model 6 series planetary gearbox is similar in design to the models 4 and 5 series gearbox, but it has several advantages compared to these models. One of the main features of the Model 6 series transmission is its high torque capability, with a torque range of 500000 Nm to 5000000 Nm. This high torque capability is achieved through the use of high-strength materials and advanced manufacturing technology. Another feature of the Model 6 series planetary gearbox is its low noise operation. The gearbox adopts optimized gear tooth shape and precision manufacturing design, which can reduce noise and vibration levels. This makes it an ideal choice for applications where noise reduction is crucial. The Model 6 series planetary gearbox is also designed to be easily integrated with various types of motors, making it a popular choice for applications that require high power density and precise control. It has multiple transmission ratios and can be customized to meet specific torque and speed requirements. In addition, the Model 6 series planetary gearbox can withstand harsh operating conditions, including high impact loads, extreme temperatures, and exposure to water and dust. It also has corrosion resistance and is suitable for marine and offshore applications. Overall, the Model 6 series planetary gearbox is a reliable and durable solution for high torque applications, with precision and reliability being key factors. Its high torque capacity, low noise operation, and easy integration with various types of motors make it a popular choice for various industrial and marine applications.

How to install the model 6 series planetary gearbox? The correct installation of the Model 6 series planetary gearbox is crucial for ensuring its reliable and efficient performance in demanding applications. Here are some important tips for installing the Model 6 series planetary gearbox: 1. Prepare the installation surface: The installation surface should be clean, flat, and free of debris or obstacles. Ensure that the character is strong enough to support the weight of the gearbox. 2. Align the gearbox: Ensure that the gearbox is correctly aligned with the motor or other components to be connected. Use laser or other alignment tools to ensure that the gearbox is aligned within the recommended tolerance range. 3. Install the gearbox: Use the recommended installation bolts and torque settings to install the gearbox onto the mounting surface. Ensure that the gearbox is firmly fixed on the installation surface. Model 6 series planetary gearbox 4. Connect input and output shafts: Use recommended couplings or adapters to connect the input and output shafts of the gearbox to the motor or other components. Ensure that the piles are correctly aligned and securely connected. 5. Check lubrication: Check the lubrication of the gearbox to ensure it is fully lubricated. Use the recommended lubricant and fill to the recommended oil level. 6. Test the gearbox: Test the gearbox to ensure its normal operation. Check for any abnormal noise or vibration and ensure that the transmission provides the expected torque and speed. 7. Follow the manufacturer's recommendations: Follow the manufacturer's recommendations for installing and operating the gearbox. This includes recommended torque settings, lubricants, and other important information. By following the prompts, you can help ensure that the Model 6 series planetary gearbox is installed correctly. Correct installation is crucial for ensuring the reliable and efficient performance of gearboxes in demanding industrial and marine applications.

Our Factory At present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting modern computer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.

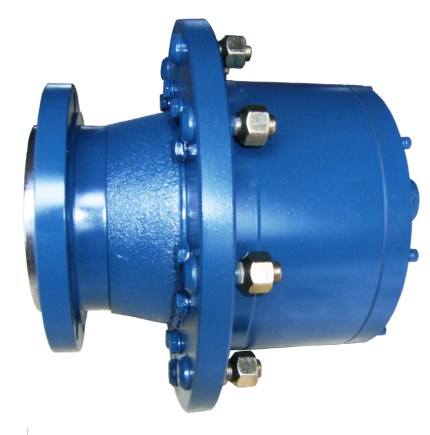

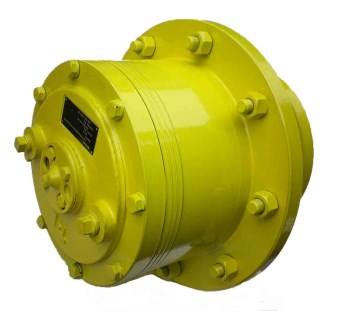

Other Types of Planetary Gearboxes
