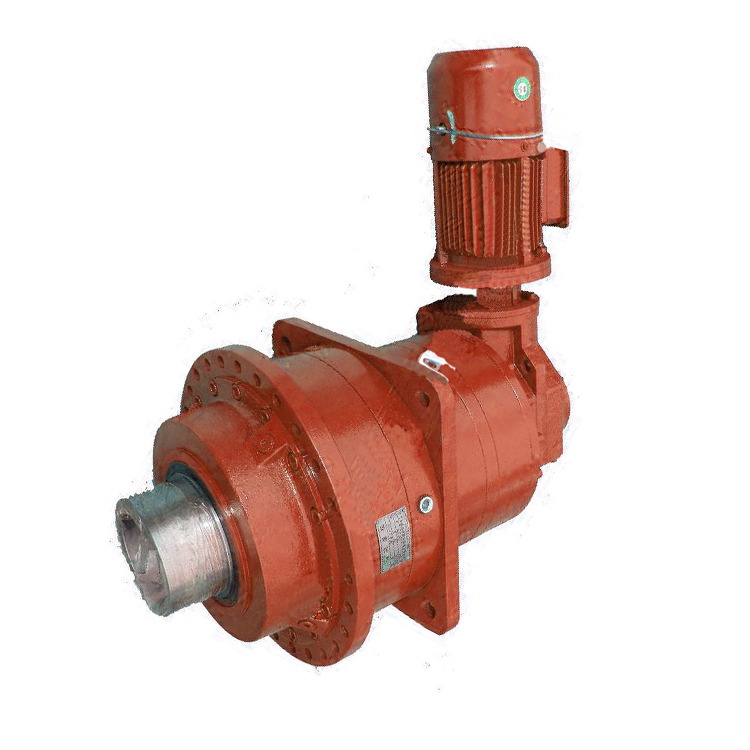

EP300 Series Planetary Drives

TypeDimensionsDesignD1D2D3D4L1L2L3L4L5D5D6D7D8D9EP30018540×36 DIN 54823842615810014501101651858-φ11—AEP30118540×36 DIN 54825042618213214501101651858-φ11—AEP30324558×53 DIN 5482607583105160158515019522210-φ13—AEP30524558×53 DIN 5482607583105160158515019522210-φ13—AEP30629270×......

Send Inquiry

Product Description

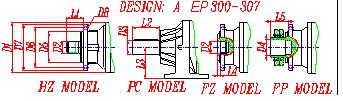

Type	Dimensions														Design
Type	D1	D2	D3	D4	L1	L2	L3	L4	L5	D5	D6	D7	D8	D9	Design
EP300	185	40×36 DIN 5482	38	42	61	58	100	14	50	110	165	185	8-φ11	—	A
EP301	185	40×36 DIN 5482	50	42	61	82	132	14	50	110	165	185	8-φ11	—	A
EP303	245	58×53 DIN 5482	60	75	83	105	160	15	85	150	195	222	10-φ13	—	A
EP305	245	58×53 DIN 5482	60	75	83	105	160	15	85	150	195	222	10-φ13	—	A
EP306	292	70×64 DIN 5482	80	90	130	130	180	40	115	200	250	280	12-φ15	—	A
EP307	348	80×74 DIN 5482	90	100	162	170	200	36	120	230	295	325	10-φ17	—	A
EP309	348	80×74 DIN 5482	100	120	231	165	225	82	245	278	314	348	12-φ17	225	B
EP310	400	100×94 DIN 5482	110	130	290	210	250	95	290	340	370	400	15-φ17	245	B
EP311	428	100×94 DIN 5482	120	135	320	210	280	88	190	358	390	428	24-φ17	230	B
EP313	445	120×3 DIN 5480	140	145	357	200	280	81	235	385	415	445	30-φ17	260	B
EP315	542	150×5 DIN 5480	160	180	429	240	315	98	260	460	503	542	20-φ21	300	B
EP316	670	170×5 DIN 5480	180	180	275	260	400	145	265	580	625	670	30-φ22	—	B
EP317	695	200×5 DIN 5480	200	200	352	260	415	152	318	560	635	695	24-φ32	—	B
EP318	800	220×5 DIN 5480	250	220	340	330	500	155	305	700	750	800	32-φ26	—	B
EP319	940	260×5 DIN 5480	280	280	470	380	550	210	440	800	880	940	30-φ33	—	B
EP321	1100	300×8 DIN 5480	340	320	500	540	650	250	440	940	1020	1100	36-φ33		B
