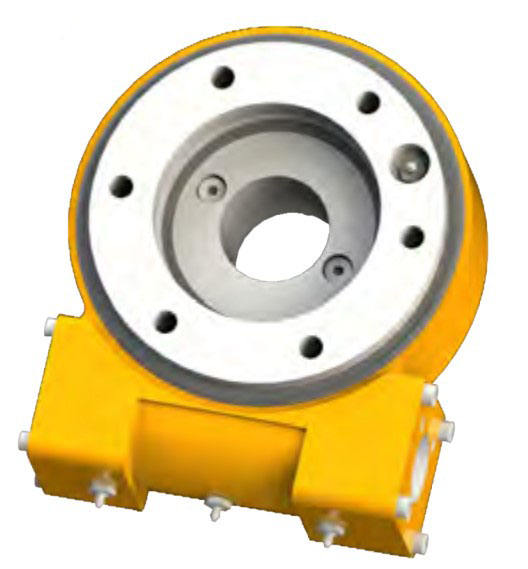

FGE9 Slewing Drive Reducer for Module Vehicle

Factory Directly Wholesale FGE Series FGE9 Slewing Drive Reducer For Module VehicleSlewing Drive Reducer For Module VehicleSlewing drives are available in a variety of designs and can be used on different types of machinery. These include equipment, digger derricks, fog cars, and wind turbines. So......

Send Inquiry

Product Description

Factory Directly Wholesale FGE Series FGE9 Slewing Drive Reducer For Module Vehicle

Slewing Drive Reducer For Module Vehicle Slewing drives are available in a variety of designs and can be used on different types of machinery. These include equipment, digger derricks, fog cars, and wind turbines. Some types can be enclosed in a casing, which can help prevent workplace injuries. Hourglass mechanism The Hourglass mechanism is used on slewing drives in a modular vehicle, and it offers several benefits. It offers superior performance because it uses multiple gear teeth at the same time. The result is an extremely durable, high-torque drive with minimal backlash. The Hourglass mechanism is a simple way to increase the strength and efficiency of a slewing drive. This mechanism can be found in electric, pneumatic, and hydraulic slewing drives. These drive systems are excellent for applications where load-holding capacity and rotational torque strength are essential. Hourglass mechanisms are often used on slewing drives in solar tracking systems. They are also found on solar trackers, wind turbines, and satellite and radar dishes. They can also be found in modular vehicles, construction equipment, and port machinery. Hourglass worm technology The hourglass worm technology used in slewing drive reducers provides a superior gear ratio and smooth rotation. This type of drive has many applications in industry, such as man lifts, hydraulic attachments, oil tool equipment, and tire handlers. The slewing drive reducer can be used in horizontal or vertical mounting and comes with one or two worm gear shafts. The Ever power FGE series slewing drive reducer features an IP55-rated enclosure and a case seal. This high-quality product reduces labor costs in the field and provides better component protection. Its hourglass worm design offers superior performance, with 11 gear teeth in direct contact with the worm shaft, making the unit durable, stronger, and more efficient. Hourglass worm slewing drive reducers are especially useful in industries that require full precision in positioning workpieces. They are able to deliver accurate results because of their low backlash. Hourglass worm gearboxes Hourglass worm gearboxes have several advantages over conventional worm gears. For example, they are more efficient and durable. They have multiple teeth and lower backlash, which makes them great for applications where precision positioning is essential. Also, they can be used in applications where torque and load holding power are critical. These worm gearboxes can be customized to meet specific applications. These products are available in different sizes, capacities, and mounting options. Some even feature dual-axis drive configurations with two drives on the same axis. Hourglass worm gearboxes have multiple gear teeth and can be configured to handle a wide range of torques. Hourglass worm shaft Hourglass worm shaft slewing drives offer a variety of advantages, including reduced backlash and better gear functionality. They are designed to maximize efficiency and offer high torque while minimizing friction. The worm shaft and teeth are hardened to increase service life. The worm wheel is aluminum-bronze, reducing friction while adding a stable element to the drive. Hourglass slewing drives are best used for high precision metal cutting and forming applications where high accuracy is required. Hourglass worm shaft slewing drives are available in single and dual-axis versions. They can be used in industrial and consumer applications. They can deliver holding torques from three to two thousand newtons and provide high torque for tilting. Different models feature different moment load capacities. Hourglass worm gear An hourglass worm gear slewing drive is an excellent choice for a variety of applications. These slew drives feature hourglass worm technology, which provides maximum gear torque and smooth rotation. They are used in many applications, including solar businesses, man lifts, hydraulic attachments, oil instrument products, and many others. Slew drives come in four different sizes and have multiple mounting configurations. Depending on the application, these slew drives can deliver up to 39kN of torque. The worm gear is connected to a drive motor that rotates the worm thread. The worm thread is carried within an annular portion 136 that is attached to the housing 132. The drive motor 135 is coupled to the worm thread through a planetary gear assembly 138. This planetary gear assembly has a high output torque and is wear-resistant to withstand higher loads. The slewing drive is an excellent choice for modules and other applications requiring a high load capacity.

Output torque	Lifting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
6.5 KN.M	33.9 KN.M	40 KN.M	340KN	138 KN	61:1	≤0.17°	49kg
4794 LBF.FT	25*10³ LBF.FT	29.5*10³ LBF.FT	76.4*10³ LBF	5170 LBF	61:1	≤0.17°	49kg

Front View

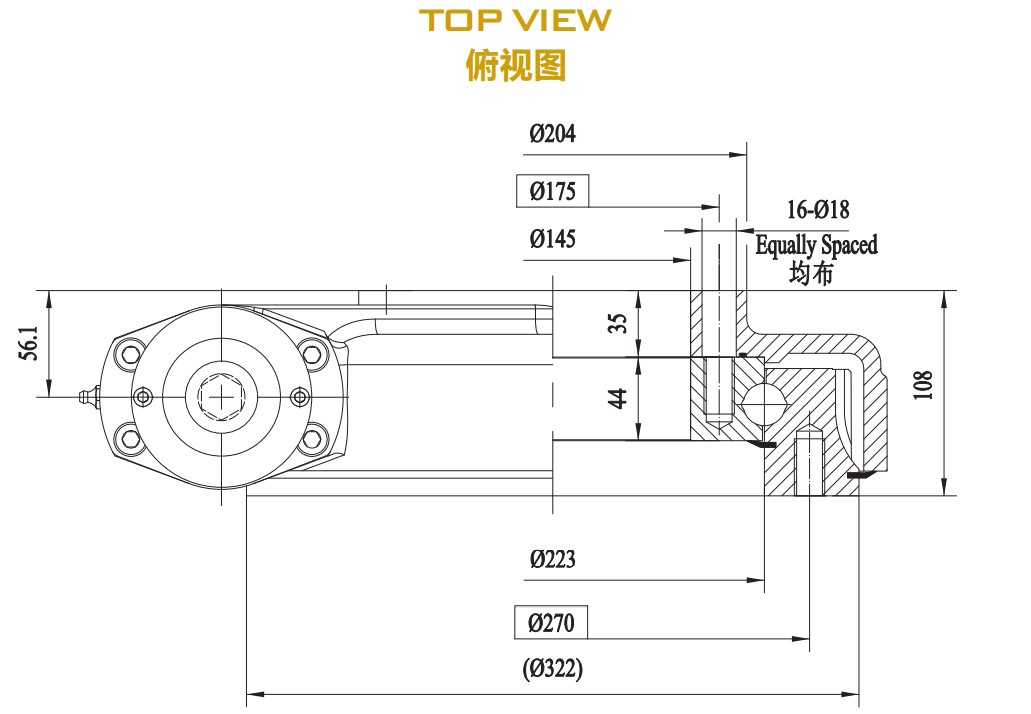

Top View

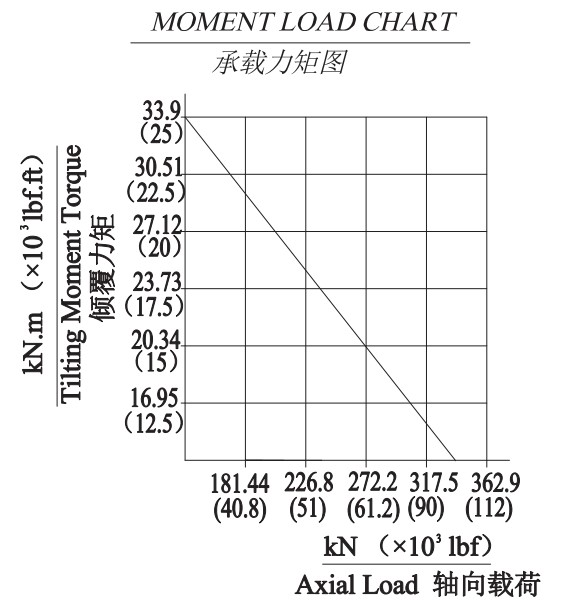

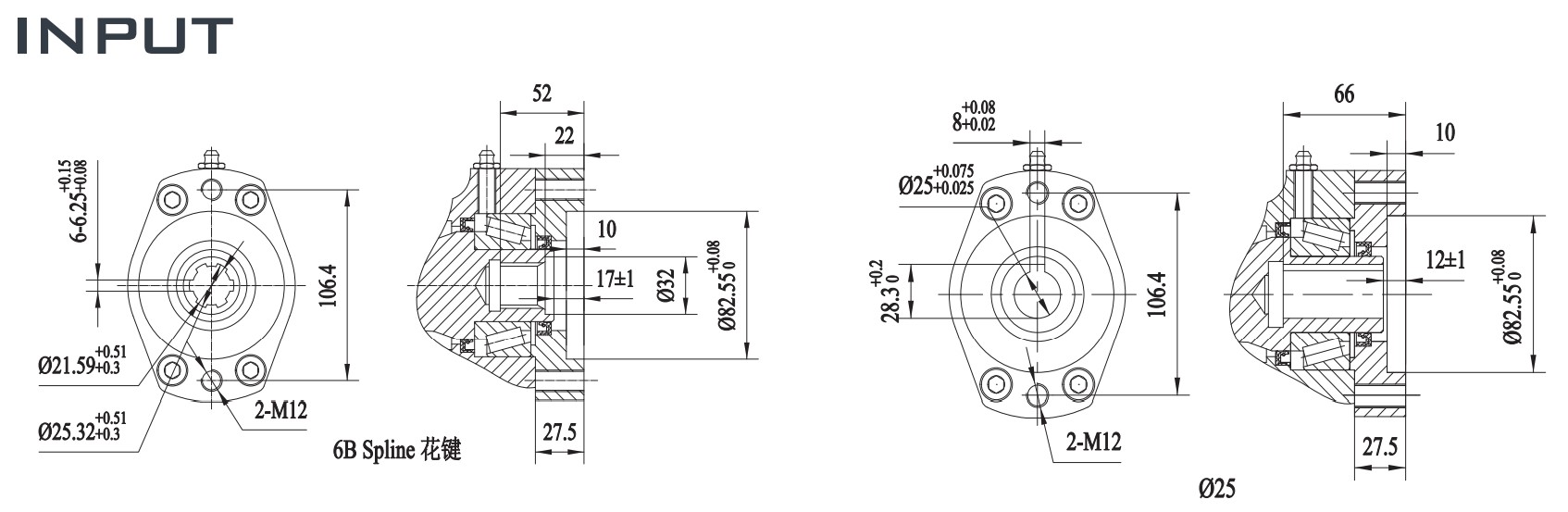

Note: customized design can be carried out according to customer requirements

Application

hzpt slewing drive is a gearbox designed to handle radial or axial loads using high rotational torque. In addition, the slewing ring bearing, at the heart of the drive, enables it to withstand high overhung or moment loads. A descendant of the “worm” screw, slewing drives are present in construction machinery, manufacturing, equipment and many other applications that require strength and precision.
The physics of the slew drive makes it a versatile solution for many applications. In operation, the slew drive’s axial movement, or motion around its axis, interacts to create radial torque. The action occurs by meshing the grooves of the horizontal screw with the teeth of a perpendicular gear. While turning, the worm gear’s axial movement transfers magnified torque force to the radial gear. The number of threads on the horizontal screw and the number of gears that interact will determine the speed ratio of the setup.
Slewing drives are available in many configurations depending on the task at hand. These may be single-axis or dual-axis turning in unison.
An hourglass configuration expands the capability from a single gear tooth to as many as 11 to create rotational torque by
contacting the worm screw. Multiple gear teeth interacting at once allows the equipment to be more efficient and generate more torque.
Slew drives work best for applications in which high torque can create precision positioning and rotational accuracy. This design results in a device which works smoothly and powerfully with minimal backlash.
Because of the power and dependability generated by slew drive technology, the functions of this engineering technology apply to many types of equipment. One particular use, for example, involves solar technology, tracking the sun’s movements in perfect time to generate maximum energy output.
Any job requiring high load capacity and reliable positioning may require the implementation of slewing drive engineering.
Robust, smooth and consistent, slew drives have a distinct place in manufacturing, construction and many other venues. Based on a centuries-old engineering idea, slew drive-operated equipment can be simple or complex, depending upon the requirements.
Adding hydraulic, pneumatic or electric motors to single, double or hourglass design depends on the application. Other features such as brakes or self-locking features and open or closed chassis are among many options.
The list of active applications for slew drives is extensive. Several types of industries require some form of slew drive to make their operations more efficient. Equipment for mining, construction, metalworking and other applications that require unrelenting strength combined with faultless precision use slewing technology for safety and accuracy.
Powerful devices like aerial lifts, rotating forklifts, truck-mounted cranes, cable winders, fire trucks, hydraulic machinery and utility equipment depend on the safety and strength of slew drives.
Precision devices such as equipment, satellite dishes, solar trackers, printing presses and telescopic devices benefit from the absolute precision that slewing drives provide to be effective.
To judge what kind of slewing drive you need,you have to clear out the configuration of the slew drive and the purpose of the equipment, each unit will have differing specifications. When defining the type and capability of the slew drive, the following variables are calculated:
Gear ratios
Precision
Weight
Output
Tilting moment
Torque
Dynamic and static axial
Radial dynamic
