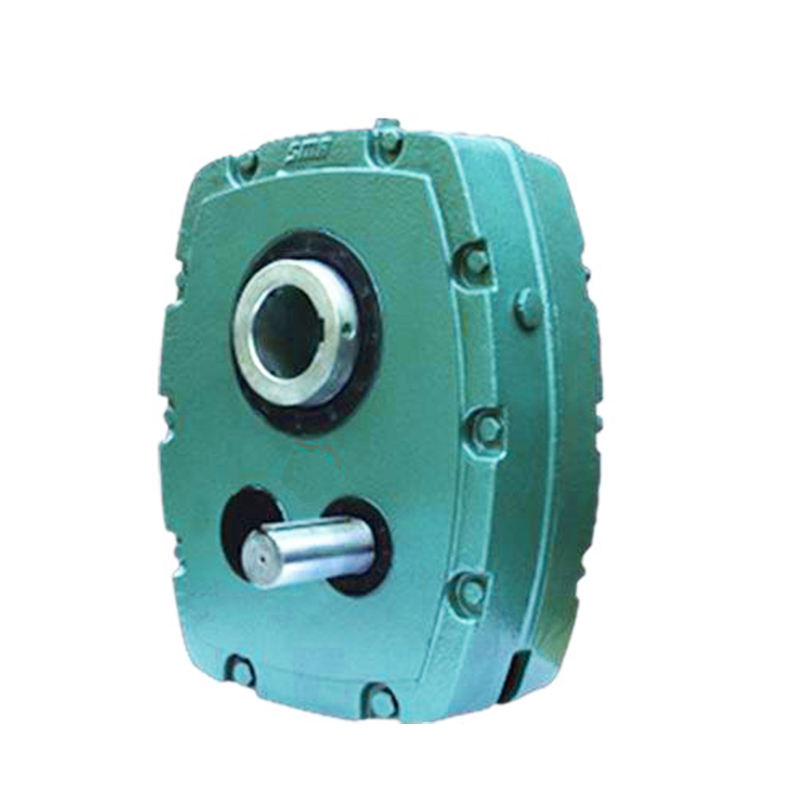

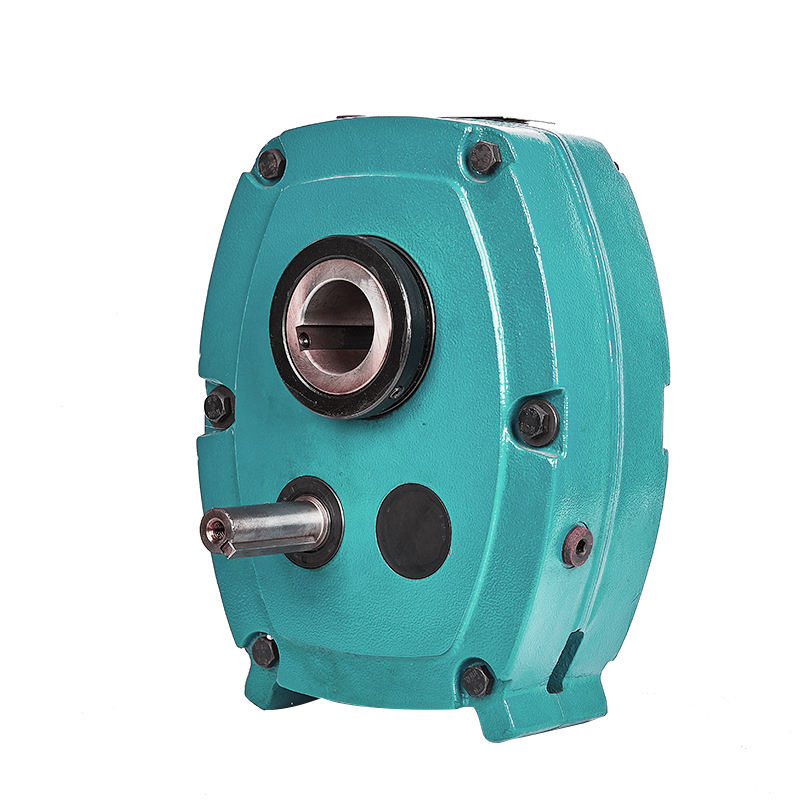

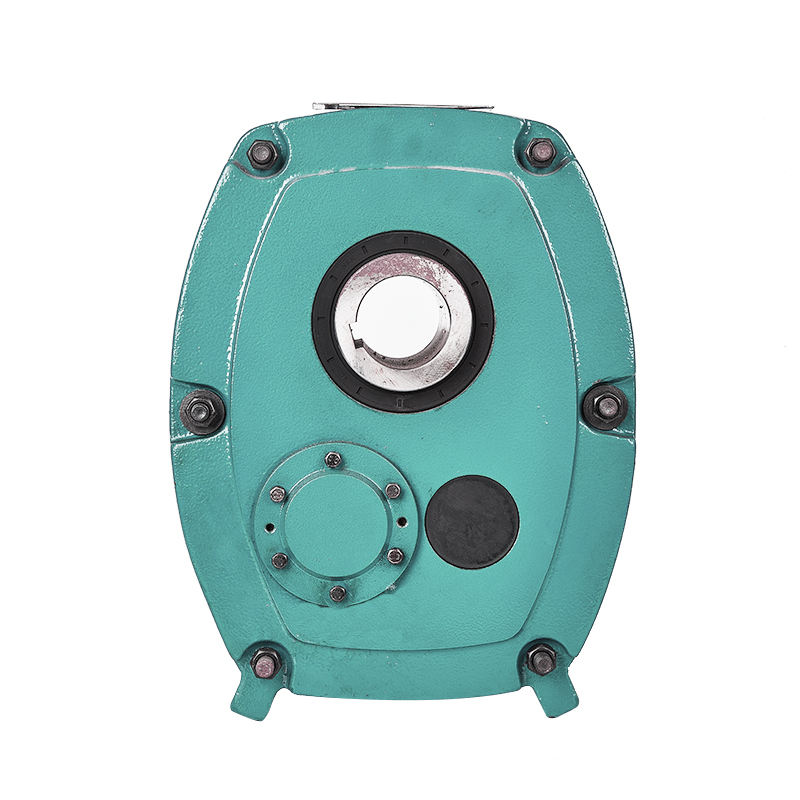

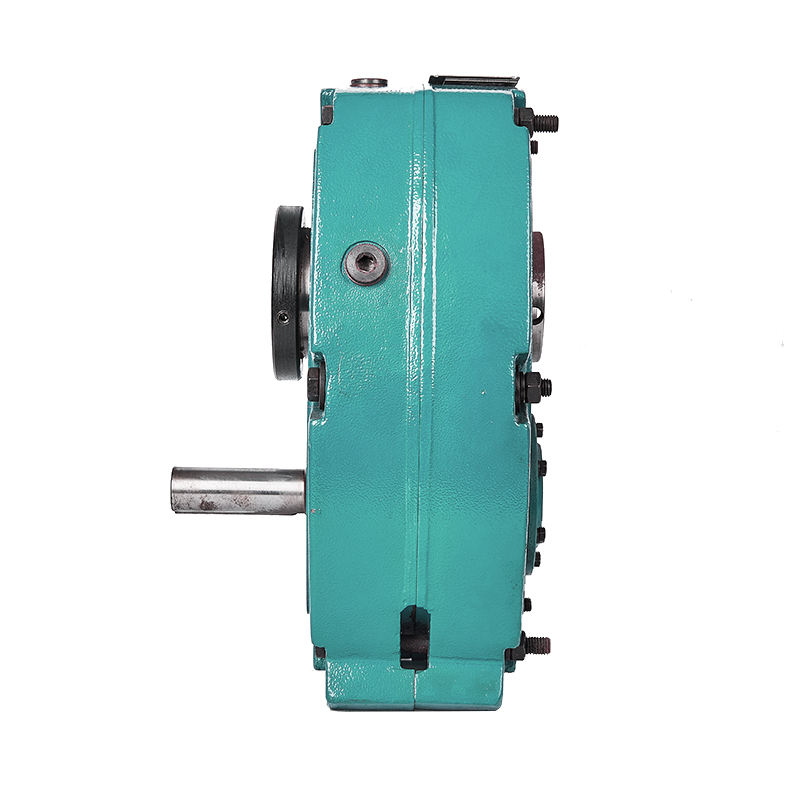

SMR Type Cast Iron Shaft Mounted Transmission Gearbox Custom ODM Supported Planetary Gearing Arrangement

Discover Raydafon Group's SMR Type Cast Iron Shaft Mounted Transmission Gearbox, offering Custom ODM Supported Planetary Gearing Arrangement for robust power transmission in industrial machinery. Built with durable cast iron and advanced planetary gearing, it ensures smooth operation and high efficiency, ideal for engineers seeking reliability and customization. Experience reduced downtime and enhanced performance, setting it apart with superior durability and tailored solutions.

Send Inquiry

Product Description

* Key benefits
– Cost effective solution
– High Reliability
– Robustness
– Very Compact design
– Prevent the movement in the wrong way
– Highly customizable product
* Main options
– Fluor Elastomer Seals
– Backstop
– Torque range
– 150 … 16,000 Nm

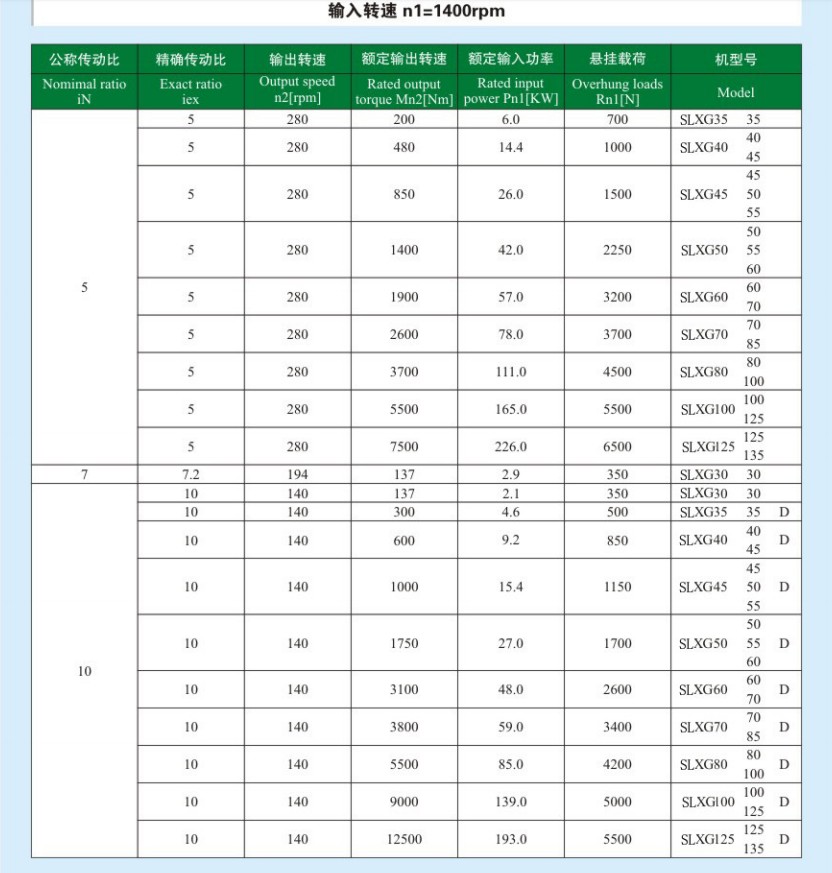

* Gear ratios
– 5 … 33.2
* Transmissible Mechanical Power
– Up to 226 kW
* Motors
– Input with solid shaft
– Input with e-motor coupling:
> BN, BE, BX [IEC asynchronous]
> BSR [IEC reluctance]
> BS [IEC single phase]
* Motor options
– Thermistors and thermostat sensors
– Independent forced cooling
– Incremental, sin/cos absolute single/multi-turn encoders
– Tropicalization
– Anti-condensation heaters

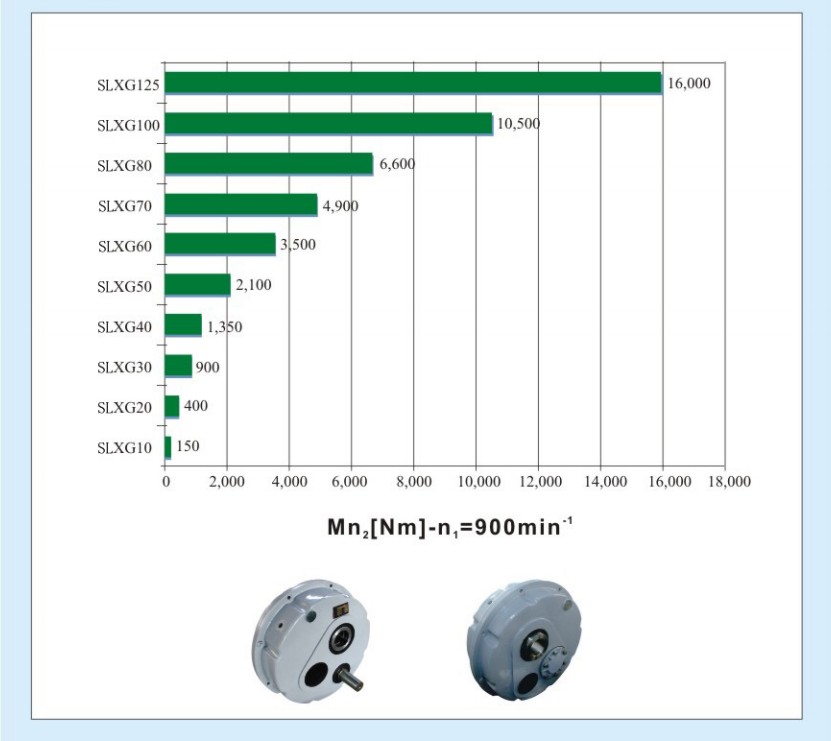

* Torque Range
– TA 30 = 150 Nm
– TA 35 = 400 Nm
– TA 40 = 900 Nm
– TA 45 = 1360 Nm
– TA 50 = 2100 Nm
– TA 60 = 3500 Nm
– TA 70 = 4900 Nm
– TA 80 = 6600 Nm
– TA 100 = 10500 Nm
– TA 125 = 16000 Nm

Click Here for more types!

Hot Tags: SMR Type Gearbox, Shaft Mounted Planetary Gearbox, Custom Planetary Gearbox
