Leveraging on our quality approach, we have been able to manufacture and supply a superior range of Stainless Steel Leaf Chain. This range of products is carefully made using the latest technology emerged in the industry. Our production team is expert enough to manufacture the chains in various customized specifications. The chains offered by us work for a long period of time without any lubrication.
Feature:
Need low maintenance
Long service life
Resistance to corrosion

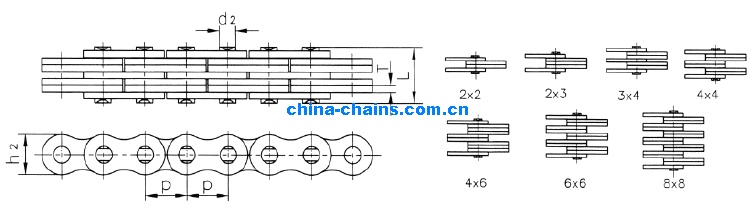

| DIN ISO Chain No. | ANSI Chain No. | Pitch | Chain Lacing | Plate depth | Plate thickness | Pin diameter | Pin length | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | h2(max) | T(max) | d2(max) | L(max) | Q(min) | Q0 | q | |||
| mm | mm | mm | mm | mm | kN | kN | kg/m | |||
| LH2022SS | BL1022SS | 31.75 | 2X2 | 30.18 | 4.9 | 11.11 | 25.37 | 69.36 | 90.48 | 3.4 |
| LH2023SS | BL1023SS | 2X3 | 30.33 | 69.36 | 90.48 | 4.3 | ||||
| LH2034SS | BL1034SS | 3X4 | 40.23 | 109.44 | 138.96 | 6 | ||||
| LH2044SS | BL1044SS | 4X4 | 45.19 | 138.78 | 174.84 | 6.9 | ||||
| LH2046SS | BL1046SS | 4X6 | 55.09 | 138.78 | 174.84 | 8.6 | ||||
| LH2066SS | BL1066SS | 6X6 | 65 | 208.2 | 258.18 | 10.3 | ||||
| LH2088SS | BL1088SS | 8X8 | 84.81 | 277.56 | 333.06 | 13.8 | ||||
| LH2422SS | BL1222SS | 38.1 | 2X2 | 36.2 | 5.77 | 12.71 | 29.62 | 90.72 | 115.2 | 4.6 |
| LH2423SS | BL1223SS | 2X3 | 35.43 | 90.72 | 115.2 | 5.8 | ||||
| LH2434SS | BL1234SS | 3X4 | 47.07 | 146.76 | 189.54 | 8.1 | ||||
| LH2444SS | BL1244SS | 4X4 | 52.88 | 181.5 | 228.6 | 9.3 | ||||
| LH2446SS | BL1246SS | 4X6 | 64.52 | 181.5 | 228.6 | 11.6 | ||||
| LH2466SS | BL1266SS | 6X6 | 76.15 | 272.22 | 326.16 | 13.9 | ||||
| LH2488SS | BL1288SS | 8X8 | 99.42 | 363 | 435.6 | 18.6 | ||||
| LH2822SS | BL1422SS | 44.45 | 2X2 | 42.24 | 6.55 | 14.29 | 33.55 | 114.78 | 135.42 | 6.1 |
| LH2823SS | BL1423SS | 2X3 | 40.16 | 114.78 | 135.42 | 7.6 | ||||
| LH2834SS | BL1434SS | 3X4 | 53.37 | 189.48 | 196.56 | 10.6 | ||||
| LH2844SS | BL1444SS | 4X4 | 59.97 | 229.56 | 270.72 | 12.2 | ||||
| LH2846SS | BL1446SS | 4X6 | 73.18 | 229.56 | 270.72 | 15.2 | ||||
| LH2866SS | BL1466SS | 6X6 | 86.39 | 346.98 | 409.44 | 18.2 | ||||
| LH2888SS | BL1488SS | 8X8 | 112.8 | 459.06 | 541.68 | 24.3 | ||||
| LH3222SS | BL1622SS | 50.8 | 2X2 | 48.26 | 7.52 | 17.46 | 39.01 | 173.46 | 204.66 | 8 |
| LH3223SS | BL1623SS | 2X3 | 46.58 | 173.46 | 204.66 | 10 | ||||
| LH3234SS | BL1634SS | 3X4 | 61.72 | 264.24 | 311.76 | 14 | ||||
| LH3244SS | BL1644SS | 4X4 | 69.29 | 346.98 | 408.24 | 16 | ||||
| LH3246SS | BL1646SS | 4X6 | 84.43 | 346.98 | 408.24 | 20 | ||||
| LH3266SS | BL1666SS | 6X6 | 99.57 | 514.44 | 600.42 | 24 | ||||
| LH3288SS | BL1688SS | 8X8 | 129.84 | 693.9 | 818.76 | 32 | ||||
| LH4022SS | BL2022SS | 63.5 | 2X2 | 60.33 | 9091 | 23.81 | 51.74 | 260.22 | 307.02 | 15.87 |
| LH4023SS | BL2023SS | 2X3 | 61.7 | 260.22 | 307.02 | 19.8 | ||||
| LH4034SS | BL2034SS | 3X4 | 81.61 | 389.64 | 459.72 | 27.7 | ||||
| LH4044SS | BL2044SS | 4X4 | 91.57 | 520.44 | 614.1 | 31.6 | ||||
| LH4046SS | BL2046SS | 4X6 | 111.48 | 520.44 | 614.1 | 39.5 | ||||
| LH4066SS | BL2066SS | 6X6 | 131.39 | 780.66 | 921.12 | 47.4 | ||||
| LH4088SS | BL2088SS | 8X8 | 171.22 | 1040.88 | 1227.9 | 63.2 |
