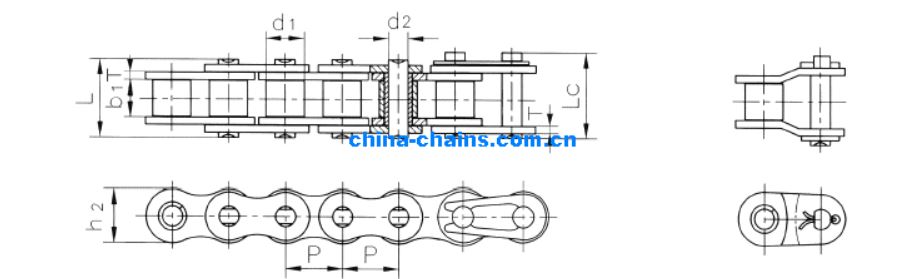

Simplex Stainless Steel Roller Chains & bushing chains
This #40 Stainless Steel Roller Chain fully meets all ANSI standards and is a durable, corrosion resistant, stainless steel roller chain. Economy Plus #40 stainless steel roller chain has a tensile strength of 2,760lbs and is constructed entirely out of 304-grade stainless steel.
| simplex Stainless Steel Roller Chains& bushing chains | ||||||||||||
| DIN ISO | ANSI | pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Q(min) | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| *04CSS-1 | *25SS | 6.35 | 3.3 | 3.18 | 2.31 | 7.9 | 8.4 | 6 | 0.8 | 2.1 | 2.76 | 0.15 |
| *06CSS-1 | *35SS | 9.525 | 5.08 | 4.77 | 3.58 | 12.4 | 13.17 | 9 | 1.3 | 4.74 | 6.48 | 0.33 |
| 085SS-1 | 41SS | 12.7 | 7.77 | 6.25 | 3.58 | 13.75 | 15 | 9.91 | 1.3 | 4 | 7.56 | 0.41 |
| 08ASS-1 | 40SS | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12 | 1.5 | 8.46 | 10.5 | 0.62 |
| 10ASS-1 | 50SS | 15.875 | 10.16 | 9.4 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 13.32 | 17.64 | 1.02 |
| 12ASS-1 | 60SS | 19.05 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18 | 2.42 | 19.08 | 49.88 | 1.5 |
| 16ASS-1 | 80SS | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 35 | 24 | 3.25 | 34.02 | 41.64 | 2.6 |
| 20ASS-1 | 100SS | 31.75 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 4 | 53.1 | 65.52 | 3.91 |
| 24ASS-1 | 120SS | 38.1 | 22.23 | 25.22 | 11.1 | 50.3 | 54.3 | 35.7 | 4.8 | 76.2 | 93.78 | 5.62 |
| 28ASS-1 | 140SS | 44.45 | 25.4 | 25.22 | 12.7 | 54.4 | 59 | 41 | 5.6 | 103.44 | 127.2 | 7.5 |
| 32ASS-1 | 160SS | 50.8 | 28.58 | 31.55 | 14.27 | 64.8 | 69.6 | 47.8 | 6.4 | 136.08 | 167.34 | 10.1 |
| 36ASS-1 | 180SS | 57.15 | 35.71 | 35.48 | 17.46 | 72.8 | 78.6 | 53.6 | 7.2 | 168.12 | 205.08 | 13.456 |
| 40ASS-1 | 200SS | 63.5 | 39.68 | 37.85 | 19.85 | 80.3 | 87.2 | 60 | 8 | 212.28 | 258.96 | 16.15 |
| 48ASS-1 | 240SS | 76.2 | 47.63 | 47.35 | 23.81 | 95.5 | 103 | 72.39 | 9.5 | 306.18 | 373.5 | 23.2 |

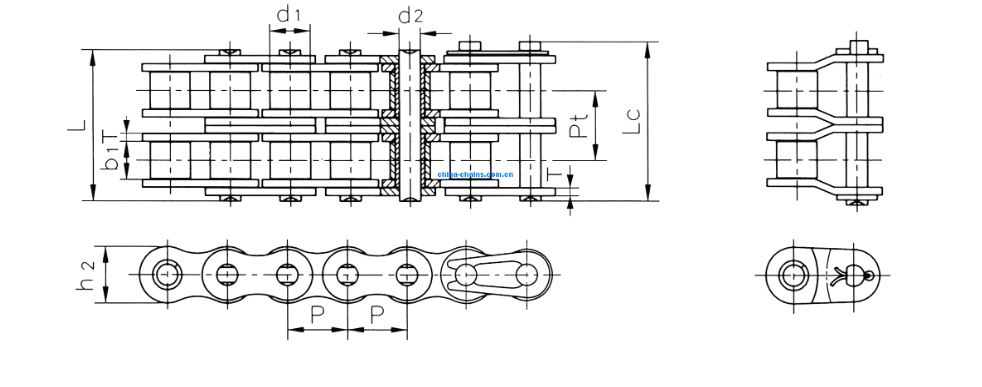

Duplex Stainless Steel Roller Chains &bushing chains
| IDN ISO Chain No. | ANSI Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Pt | Q(min) | Q0 | q | ||
| mm | mm | mm | mm | mmm | mm | mm | mm | mm | kN | kN | kg/m | ||
| *04CSS-2 | *25SS-2 | 6.35 | 3.3 | 3.18 | 2.31 | 14.5 | 15 | 6 | 0.8 | 6.4 | 4.2 | 5.16 | 0.28 |
| *06CSS-2 | *35SS-2 | 9.525 | 5.08 | 4.77 | 3.58 | 22.5 | 23.3 | 9 | 1.3 | 10.13 | 9.48 | 11.82 | 0.63 |
| 085SS-2 | 41SS-2 | 12.7 | 7.77 | 6.25 | 3.58 | 25.7 | 26.9 | 9.91 | 1.3 | 11.95 | 8 | 10.14 | 0.81 |
| 08ASS-2 | 40SS-2 | 12.7 | 7.95 | 7.85 | 3.96 | 31 | 32.2 | 12 | 1.5 | 14.38 | 16.92 | 21.54 | 1.12 |
| 10ASS-2 | 50SS-2 | 15.875 | 10.16 | 9.4 | 5.08 | 38.9 | 40.4 | 15.09 | 2.03 | 18.11 | 26.46 | 34.86 | 2 |
| 12ASS-2 | 60SS-2 | 19.05 | 11.91 | 12.57 | 5.94 | 48.8 | 50.5 | 18 | 2.42 | 22.78 | 38.16 | 49.26 | 2.92 |
| 16ASS-2 | 80SS-2 | 25.4 | 15.88 | 15.75 | 7.92 | 62.7 | 64.3 | 24 | 3.25 | 29.29 | 68.04 | 85.08 | 5.15 |
| 20ASS-2 | 100SS-2 | 31.75 | 19.05 | 18.9 | 9.53 | 76.4 | 80.5 | 30 | 4 | 35.76 | 106.2 | 131.64 | 7.8 |
| 24ASS-2 | 120SS-2 | 38.1 | 22.23 | 25.22 | 11.1 | 95.8 | 99.7 | 35.7 | 4.8 | 45.44 | 152.4 | 188.94 | 11.7 |
| 28ASS-2 | 140SS-2 | 44.45 | 25.4 | 25.22 | 12.7 | 103.3 | 107.9 | 41 | 5.6 | 48.87 | 206.88 | 256.5 | 15.14 |
| 32ASS-2 | 160SS-2 | 50.8 | 28.58 | 31.55 | 14.27 | 123.3 | 128.1 | 47.8 | 6.4 | 58.55 | 272.16 | 337.44 | 20.14 |
| 36ASS-2 | 180SS-2 | 57.15 | 35.71 | 35.48 | 17.46 | 138.6 | 144.4 | 53.6 | 7.2 | 65.84 | 336.3 | 417 | 29.22 |
| 40ASS-2 | 200SS-2 | 63.5 | 39.68 | 37.85 | 19.85 | 151.9 | 158.8 | 60 | 8 | 71.55 | 424.56 | 526.44 | 32.24 |
| 48ASS-2 | 240SS-2 | 76.2 | 47.63 | 47.35 | 23.81 | 183.4 | 190.8 | 72.39 | 9.5 | 87.83 | 612.36 | 753.18 | 45.23 |

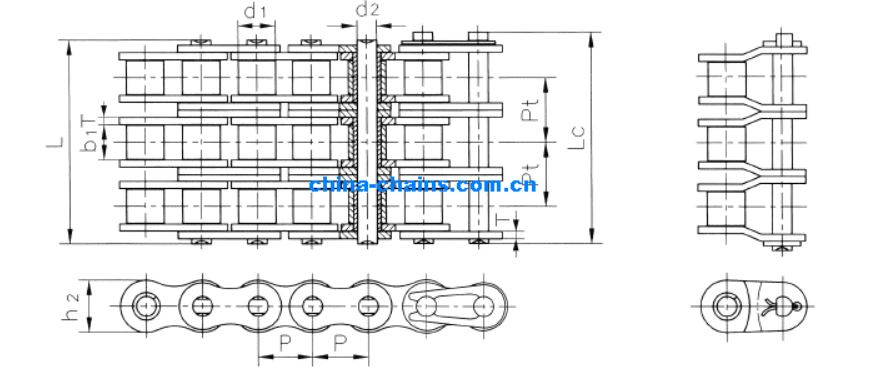

Triplex Stainless Steel Roller Chains &bushing chains
| DIN ISO Chain No. | ANSI Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Pt | Q(min) | Q0 | q | ||
| mm | mm | mm | mm | mmm | mm | mm | mm | mm | kN | kN | kg/m | ||
| *04CSS-3 | *25SS-3 | 6.35 | 3.3 | 3.18 | 2.31 | 21 | 21.5 | 6 | 0.8 | 6.4 | 6.3 | 7.56 | 0.44 |
| *06CSS-3 | *35SS-3 | 9.525 | 5.08 | 4.77 | 3.58 | 32.7 | 33.5 | 9 | 1.3 | 10.13 | 14.22 | 17.16 | 1.05 |
| 08ASS-3 | 40SS-3 | 12.7 | 7.95 | 7.85 | 3.96 | 45.4 | 46.6 | 12 | 1.5 | 14.38 | 25.38 | 30 | 1.9 |
| 10ASS-3 | 50SS-3 | 15.875 | 10.16 | 9.4 | 5.08 | 57 | 58.5 | 15.09 | 2.03 | 18.11 | 39.96 | 46.68 | 3.09 |
| 12ASS-3 | 60SS-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71.5 | 73.3 | 18 | 2.42 | 22.78 | 57.24 | 66.66 | 4.54 |
| 16ASS-3 | 80SS-3 | 25.4 | 15.88 | 15.75 | 7.92 | 91.7 | 93.6 | 24 | 3.25 | 29.29 | 102.06 | 119.04 | 7.89 |
| 20ASS-3 | 100SS-3 | 31.75 | 19.05 | 18.9 | 9.53 | 112.2 | 116.3 | 30 | 4 | 35.76 | 159.3 | 185.76 | 11.77 |
| 24ASS-3 | 120SS-3 | 38.1 | 22.23 | 25.22 | 11.1 | 141.4 | 145.2 | 35.7 | 4.8 | 45.44 | 228.6 | 262.32 | 17.53 |
| 28ASS-3 | 140SS-3 | 44.45 | 25.4 | 25.22 | 12.7 | 152.2 | 156.8 | 41 | 5.6 | 48.87 | 342.72 | 355.98 | 22.2 |
| 32ASS-3 | 160SS-3 | 50.8 | 28.58 | 31.55 | 14.27 | 181.8 | 186.6 | 47.8 | 6.4 | 58.55 | 408.24 | 468.36 | 30.02 |
| 36ASS-3 | 180SS-3 | 57.15 | 35.71 | 35.48 | 17.46 | 204.4 | 210.2 | 53.6 | 7.2 | 65.84 | 504.42 | 590.16 | 38.22 |
| 40ASS-3 | 200SS-3 | 63.5 | 39.68 | 37.85 | 19.85 | 223.5 | 230.4 | 60 | 8 | 71.55 | 636.84 | 730.68 | 49.03 |
| 48ASS-3 | 240SS-3 | 76.2 | 47.63 | 47.35 | 23.81 | 271.3 | 278.6 | 72.39 | 9.5 | 87.83 | 918.54 | 1053.9 | 71.6 |
