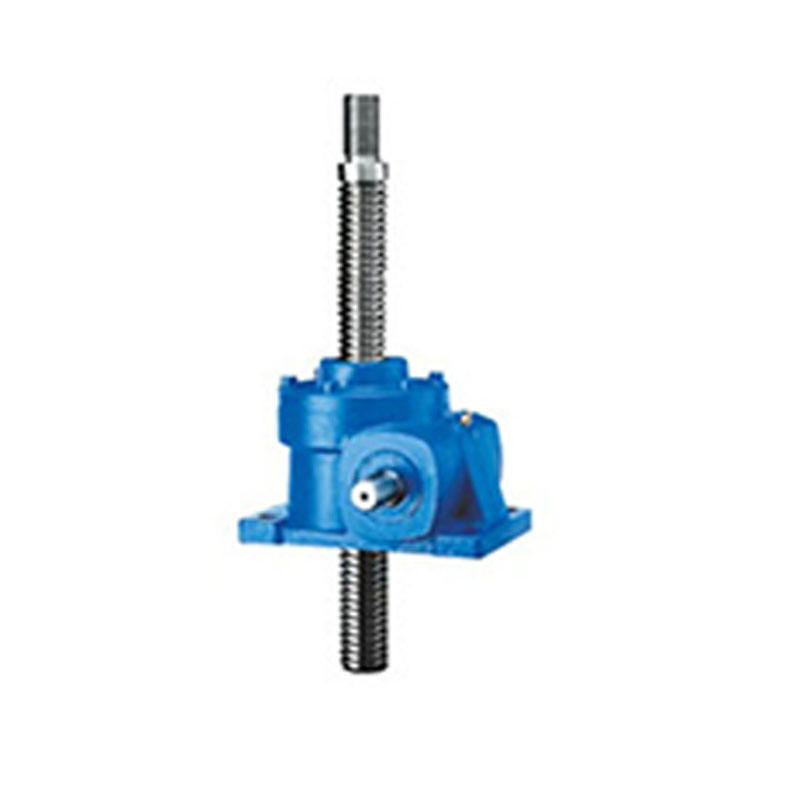

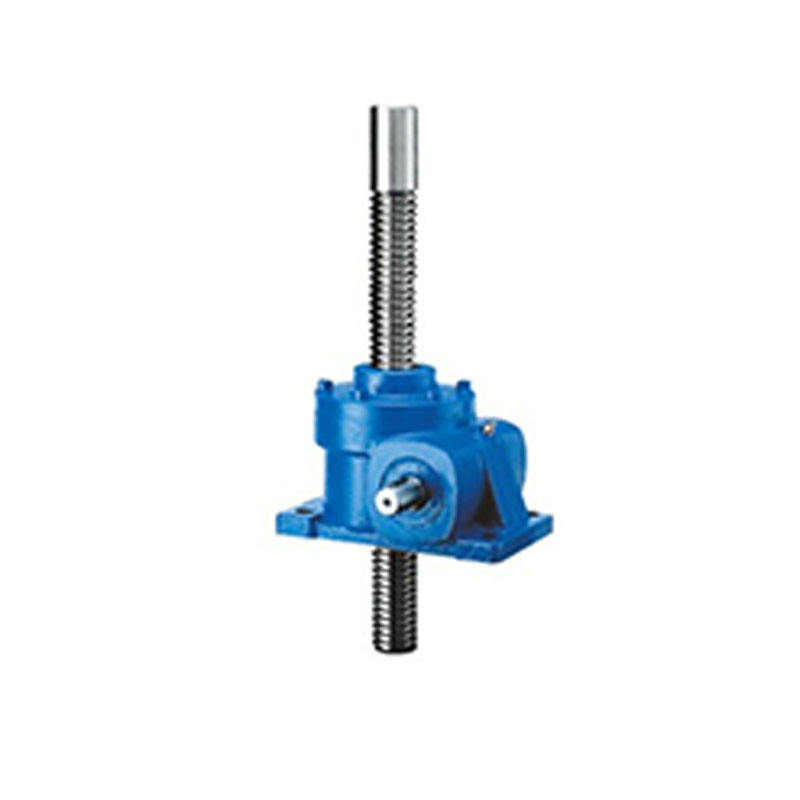

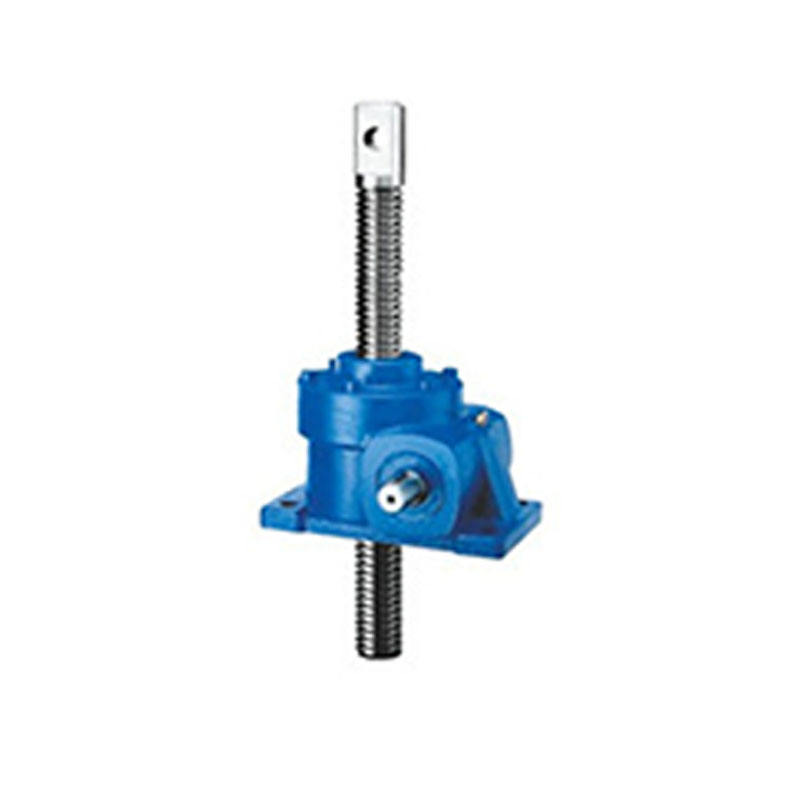

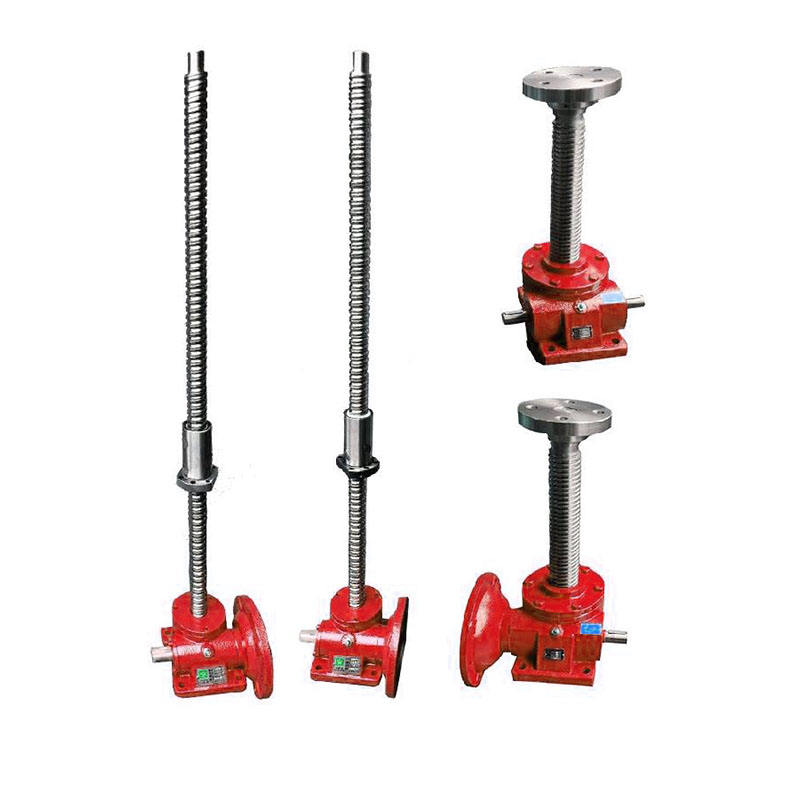

SWL Series Worm Screw Jack Worm Gear Screw Jack

Raydafon Group's SWL Series Worm Screw Jack offers reliable lifting solutions for industrial applications, featuring durable worm gear design for precision and efficiency. Ideal for engineers and manufacturers, it enhances productivity and safety, providing a superior alternative with robust construction and trusted performance.

Send Inquiry

Product Description

Features
Original modular design, biomimetic surface with owned intellectual property right.
Adopt German worm hob to process the worm wheel.
Low friction, long lifecycle, high efficiency.
Diverse drives, motor or other power drive, also can be driven by hand.
Various output type.

Main applied for
Hoist and transport
Building and construction
Forest and paper
Metal processing
Agriculture and food

SWL Series Worm Screw Jack Worm Gear Screw Jack

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62 °
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	tempering, cementiting, quenching, etc.
Efficiency	98%
Noise (MAX)	60~68dB
Temp. rise (MAX)	40°C
Temp. rise (Oil)(MAX)	50°C
Vibration	≤20µm
Backlash	≤20Arcmin
Brand of bearings	China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal	NAK --- Taiwan or other brands requested

SWL Series Worm Screw Jack Worm Gear Screw Jack

Hot Tags: SWL Series Worm Screw Jack, Worm Gear Screw Jack Manufacturer, Customized Screw Jack Supplier
