New design&good price laser cutting machine 1300*900mm CNC equipment for acrylic wood crystal glass EP LASER
EP1390N
1.Product introduction for New design&good price laser cutting machine 1300*900mm CNC equipment for acrylic wood crystal glass EP LASER
Advertising processing, Light guide plate, Modle industry, Decoration, Furniture manufacturing industry, electronic component, cooling and ventilation pipe, acrylc, wood planks, bamboo ware, cold platens scutcheon, nonmetal processing industries.
2.Features and advantageous of New design&good price laser cutting machine 1300*900mm CNC equipment for acrylic wood crystal glass EP LASER
1. Configure high power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3. Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in Coreldraw, AutoCAD,etc.
5. Adopt international linear rail, more precision.
3.Parameter details of New design&good price laser cutting machine 1300*900mm CNC equipment for acrylic wood crystal glass EP LASER
|
Model |
EP-1390 |
|
Laser Power |
80w/100w/130w/150w |
|
Laser Type |
sealed CO2laser tube,water-cooled,10.6um |
|
Work Area |
1300 X 900 mm |
|
Cooling Type |
Water-cooled and Protection System |
|
Engraving Scanning Speed |
0-60000 mm/min |
|
Cutting Speed |
0-1000mm/min |
|
Laser Output Control |
1-100% Software Setting |
|
Smallest Character Engraving |
English: 1.0X1.0 mm |
|
Highest Scanning Precision |
2500DPI |
|
Power Supply |
AC 110-220V±10%, 50-60Hz |
|
Operating Temperature |
0oC-45°C |
|
Operating Humidity |
5%-95% |
|
Locating Precision |
≤±0.01mm |
|
Supported File Format |
DSTPLTBMPDXFAI |
|
Compatible Software |
TAJIMACORELDRAWPHOTOSHOPAUTOCADAll Type of AUTOCAD Software in cloth |
|
Slope Engraving |
360°Slope Can Be Designed Easily |
|
Driving System |
Stepper Electrical Motor |
|
Package Dimension |
2020*1880*1350 mm |
|
Net Weight |
600 KGS |
|
Gross Weight |
650 KGS |
|
Optional Spare Parts |
Up-down Worktable, Rotary System, Honeycomb Worktable |
|
Removable Spare Parts |
Laser Tube and Lens |

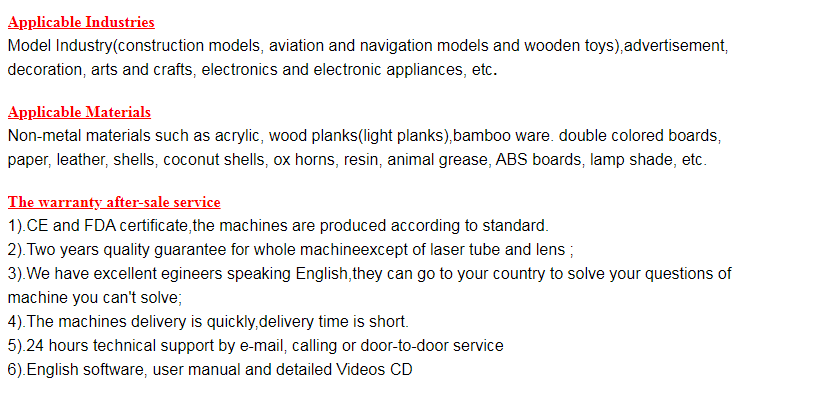

4.Application range of New design&good price laser cutting machine 1300*900mm CNC equipment for acrylic wood crystal glass EP LASER
1).CE certificate,the machines are produced according to standard.
2).Two years quality guarantee for whole machineexcept of laser tube and lens ;
3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;
4).The machines delivery is quickly,delivery time is short.
5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD
