ATA Series Shaft Mounted Gearbox for Material Handling

Raydafon Group's ATA Series Shaft Mounted Gearbox for Material Handling delivers robust performance in conveying and lifting applications, featuring durable construction and efficient design for industrial users. It solves reliability issues with smooth operation, reducing downtime and costs, and stands out with superior quality and precision. Experience enhanced productivity and peace of mind with this dependable gearbox—perfect for warehouses, factories, and logistics.

Send Inquiry

Product Description

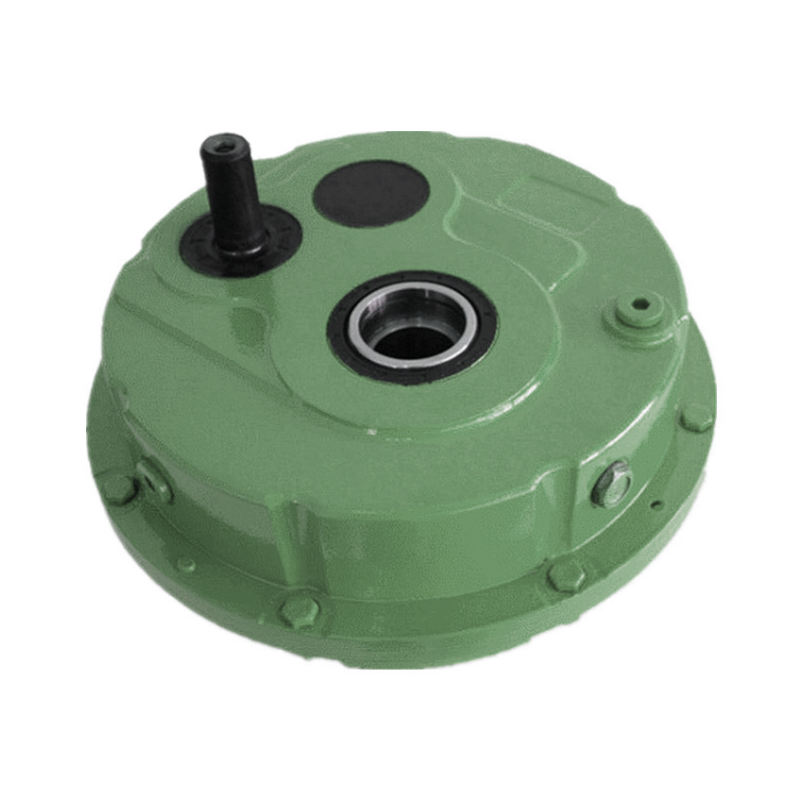

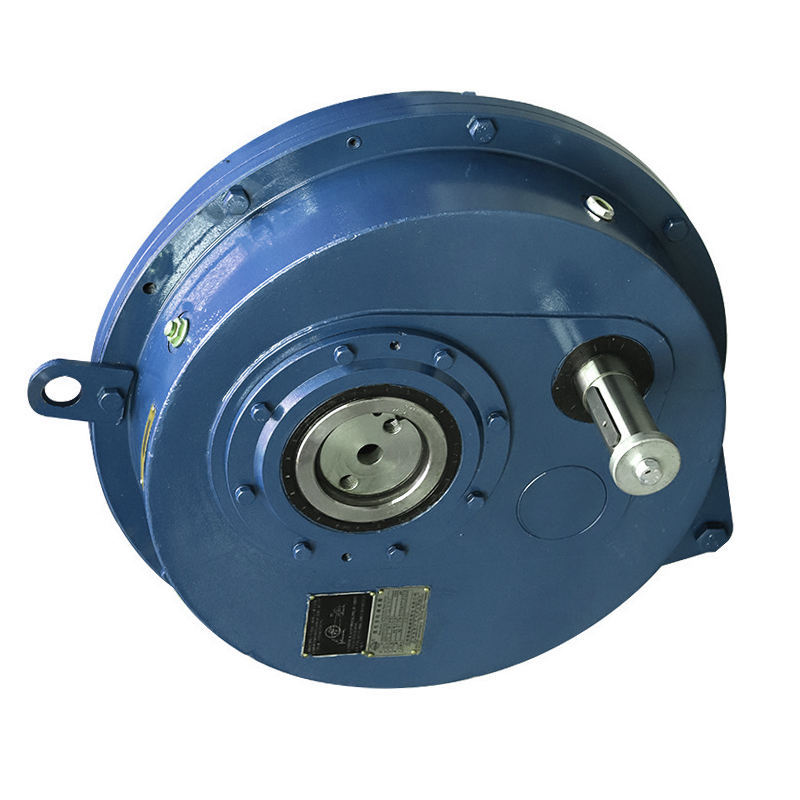

ATA Series Shaft Mounted Gearbox

Components:
1. Housing: Nodular Cast Iron(Ductile Iron) QT600
2. Gears Profile: Hardened Helical Gears
3. Gears Material: 20CrMnTi
4. Gears Processing: Carburizing, Quenching, Grinding
5. Gears Hardness: Surface Hardness: HRC58-62, Inner Hardness: HBS156-207
6. Gears Accuracy: 6 Class
7. Shafts Material: 40Cr
8. Input Configurations:
Keyed Solid Shaft Input
IEC Normalized Motor Flange
9. Output Configurations:
Keyed Hollow Shaft Output
10. Oil Seal: TAIWAN SOG
11. Bearings: NSK, SKF, FAG, HRB, ZWZ, LYC

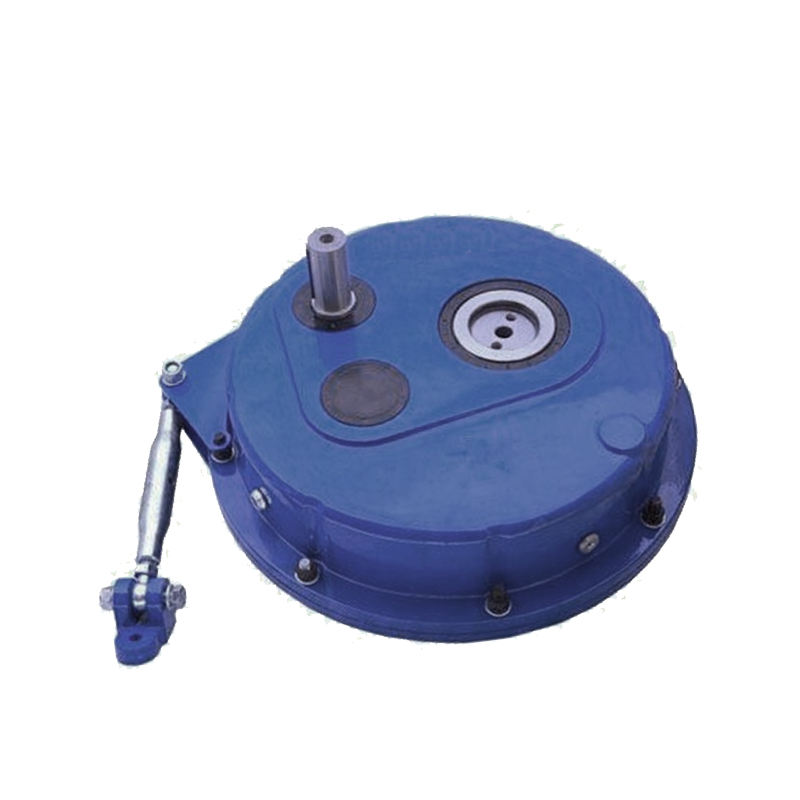

12. Spare Parts: Torque arm, Optional Backstop
Models:
1 Stage: ATA30, ATA35, ATA40, ATA45, ATA50, ATA60, ATA70, ATA80, ATA100, ATA125
2 Stage: ATA35D, ATA40D, ATA45D, ATA50D, ATA60D, ATA70D, ATA80D, ATA100D, ATA125D
Features:
1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded ATA30) to prevent backdriving in case of incline conveyors
6. Dimensions are same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

Models	Output Bore Dia.	Maximum Torque	Nominal Ratio(i)
ATA30	30mm	180Nm	5 7 10 12.5 15 20 25 31
ATA35	35mm	420Nm
ATA40	40mm/45mm	950Nm
ATA45	45mm/50mm/55mm	1400Nm
ATA50	50mm/55mm/60mm	2300Nm
ATA60	60mm/70mm	3600Nm
ATA70	70mm/85mm	5100Nm
ATA80	80mm/100mm	7000Nm
ATA100	100mm/125mm	11000Nm
ATA125	125mm/135mm	17000Nm

Applications:
Material Handling Industry, Quarrying and Mining Industry
Belt Conveyors Transmission Mechanism:

Mining Equipment, Concrete Batching Plant, Stone Crushers, Sand Making Production Line

Installation:

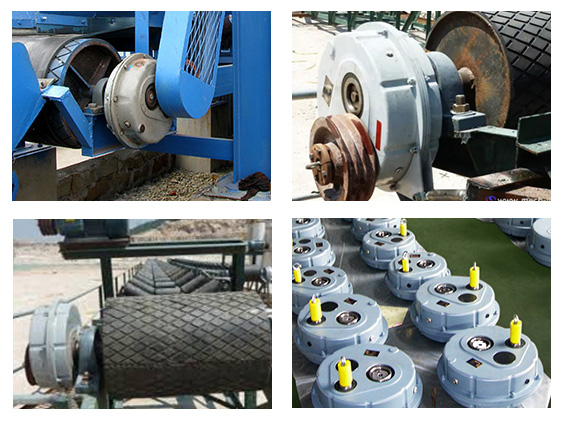

Hanging Shaft Mounted With Torque Arm
Belt Conveyor & Pulley Drive System: ATA, Electric Roller, Pulley, Electric Motor, Torque Arm

Lubrication:
Oil-bath and Splash LubricationCooling:
Natural Cooling
