THR130 High Precision Planetary Gearbox Custom ODM Hollow Rotary Actuator Precise Rotating Platform Table Speed Reducers

Discover Raydafon Group's THR130 High Precision Planetary Gearbox, a custom ODM hollow rotary actuator for precise rotating platforms and speed reducers. It offers superior accuracy and durability, ideal for industrial automation and robotics, enhancing efficiency and reliability. Stand out with unmatched customization and performance, delivering seamless motion control solutions that elevate your projects to new heights.

Send Inquiry

Product Description

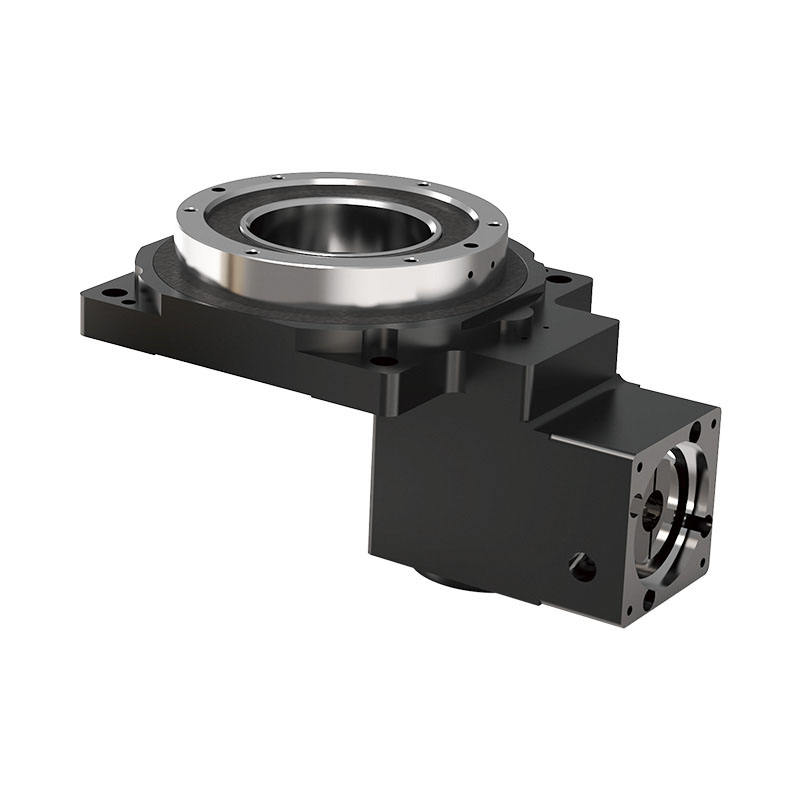

THR130 Hollow Rotary Actuator

At the heart of many complex machines lies the Hollow Rotary Actuator, whose primary attribute is its hollow shaft, permitting easy integration of electrical connections or fluid lines, and complemented by traits like precise angular control, durability, and a broad range of customizable specifications.

Specifications	THR130
Reduction ratio	10/20/30/50
Rated torque	24Nm
Adapted motor	200/400W AC Servo motor
Emergency stop torque	2.5x rated torque
Rated input speed	1500rpm
Maximum input speed	2000rpm
Return gap	≤1arcmin
Torsional rigidity
Permissible radial force	500N
Permissible axial force	200N
Service life	20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency	95%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤65dB(A)
Moment of inertia	0.07kg.cm²
Weight	3.9kg

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.

Hot Tags: High Precision Planetary Gearbox, Hollow Rotary Actuator, Custom Speed Reducers
