0.25 to 200 Kw Heavy Duty Series N5 5 Stage Planetary Gearbox Speed Reducer

Send Inquiry

Product Description

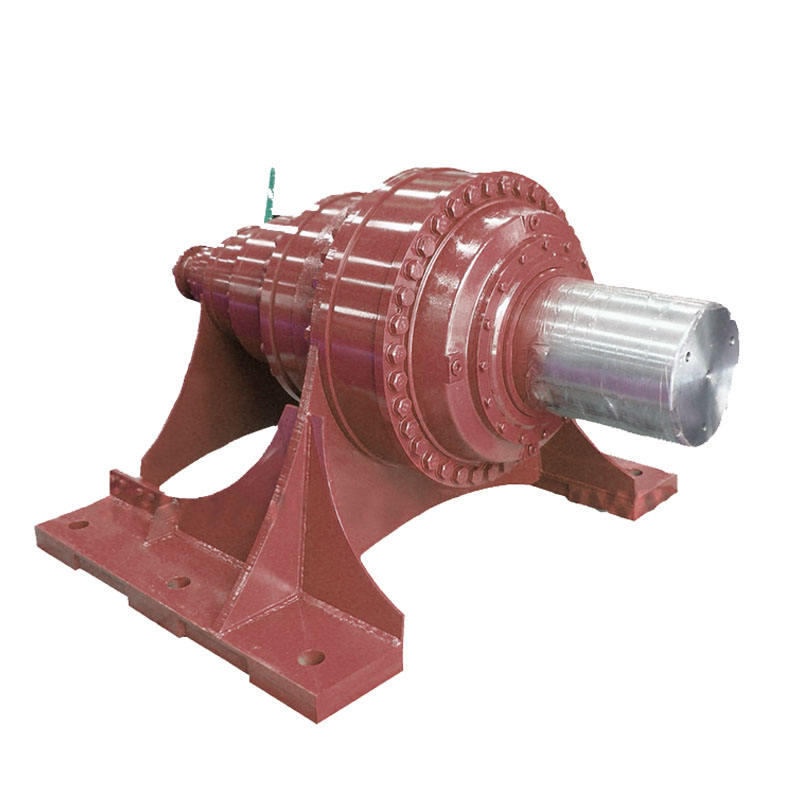

Series N5: 5 Stage Planetary Gearbox
Raydafon ‘s 5 stage planetary gearbox (series N5) is a high precision and quality motion control equipment that conforms to the ISO 9001:2008, SGS and CE standards. You can choose from our wide range of our N series gearboxes for your industrial applications.
All our inline 5 stage planetary gearboxes feature both male and female configurations. A reason for their flexibility and
adaptability. Every planetary gearbox is designed to withstand strong radial and axial loads on output shaft.
Apparently, we are the only inline planetary gearbox suppliers who have adopted modular designs. It enables us to produce customized designs for specific needs of all our clients.
Also, we are able to attain the required planetary gearbox efficiency with the help of rigid and heavy-duty bearing; alongside the ability to achieve a proportionate distribution of torque. Moreover, every 5 stage planetary gearbox is case hardened to make them reliable and increase the service life span.
With a wide range of output speeds and torques, we will help you choose the best design that optimizes your operations. You don’t have to go through the cumbersome process of using a planetary gear calculator.

Key Features
* Modular design,combined according to customer requirement
* Heavy bearing, Design for heavy duty Application
* Hardened gearing, long life with high reliability
* Series models and ratio designed, wide rang selection
* Low speed shaft design
* Nodular iron housing,high strength and impact resistance application

Torque range	1000 … 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW			Electric motor
Gear ratios	543.27 … 6110.81			Solid input shaft with or without fan cooling – inch or metric dims.
Gear unit versions		Applicable AC motors	Integral motors and brake motors
Gear unit versions			Right angle (with bevel gear set)		IEC-normalized motors and brake motors
Mounting type	Foot			Single and dual speed motors
		Flange mounted	Main brake features	DC and AC supply
		Torque-arm	Main brake features		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
			Splined shaft		Independent forced cooling
			Female splined shaft		Line driver and push-pull incremental encoder
		Hollow shaft with shrink disc

Click here for more model types!

Raydafon GROUP is a Symbol of quality craftsmanship in China . Founded in 1988, specialize in the manufacturing of slewing drives , wheel drivck drives winch drives of gearboxes are used in a variety of applications including construction machine petroleum , coal , geological exploration , shipping , metallurgy , solar power , wind power , agriculture , andprotection .After years of developmental success , our products are intemational recognized for their quality . We export gearboxes to many places in the world , including Southeast Asia , the Middle East Germany , USA Canada Spain Australia , Turkey , and India . We are a consistently growing enterprise that seeks to satisfy our customatter their location
