Lss Series High Precision Harmonic Drive Reducer Harmonic Drive Gearbox for Edge Banding Machine

AGV Gearbox / Planetary Reducer for AGVsAGV reducer intelligent storage robot special reducer unmanned carrying trolley can match different brands and different types of motors, matching reducer and motor according to customer’s requirements; the wheel and reducer adopt integrated small volume, save......

Send Inquiry

Product Description

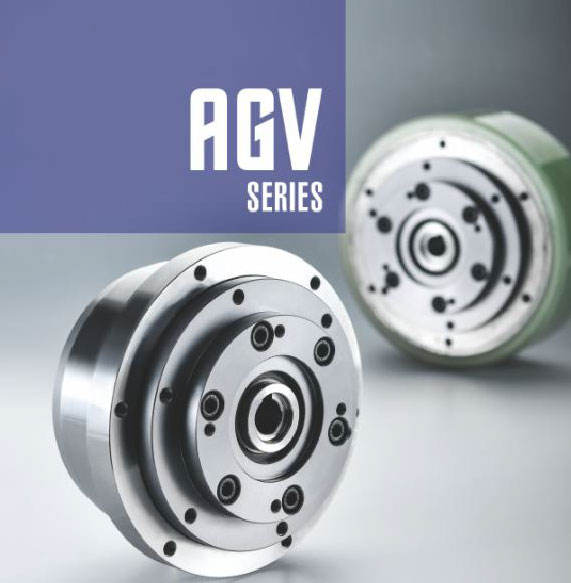

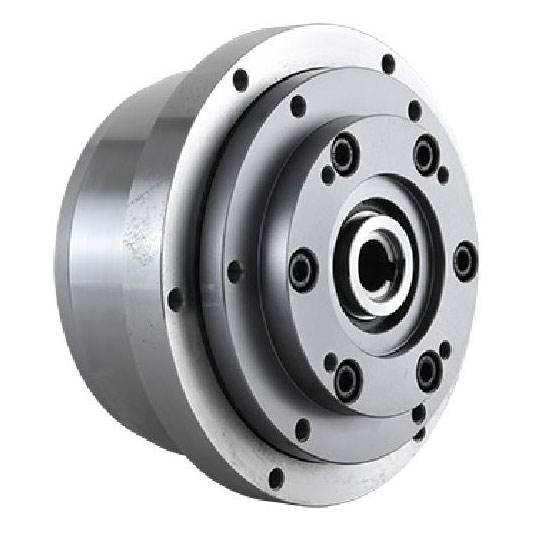

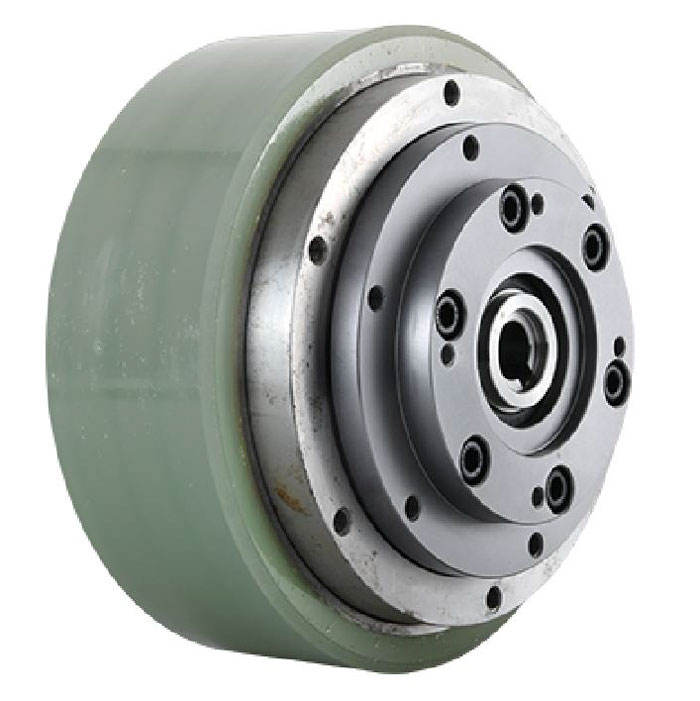

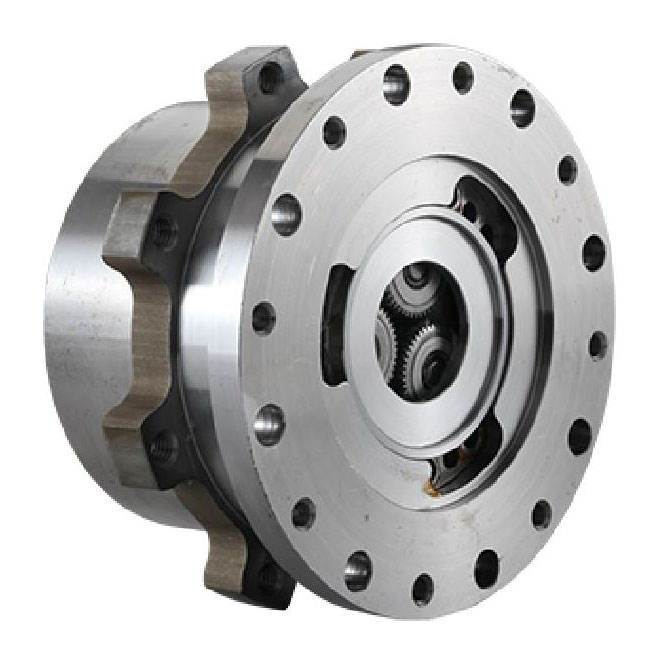

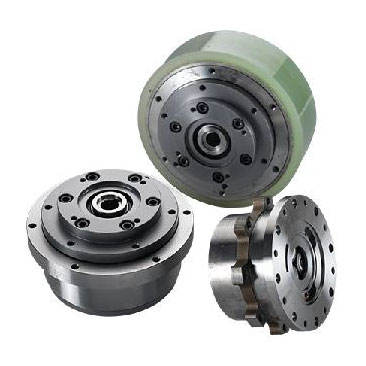

AGV Gearbox / Planetary Reducer for AGVs

AGV reducer intelligent storage robot special reducer unmanned carrying trolley can match different brands and different types of motors, matching reducer and motor according to customer’s requirements; the wheel and reducer adopt integrated small volume, save space and simple installation. adopt planetary reducer structure; large torque; good smoothness; longer service life;
It is widely used in logistics storage robots and AGV trolleys. It is a newly designed wheel reducer, replacing the traditional
wheel + reducer + motor + a large number of screws mode, reducing the transmission chain, improving the transmission control accuracy and reducing the maintenance difficulties.

RATIO	Rated Output	Input Speed	Max-radial force	Max-axle force	Temp	Protective Level
15:1	120Nm	3000rpm	6800N(150rpm)	850N(150rpm)	-25°C-+90°C	IP54
21:1	80Nm	3000rpm	6800N(150rpm)	850N(150rpm)	-25°C-+90°C	IP54
30:1	60Nm	3000rpm	6800N(150rpm)	850N(150rpm)	-25°C-+90°C	IP54
Customize	3:1 4:1 6:1 9:1 15:1 21:1 28:1 30:1 40:1 42:1 60:1

Raydafon GROUP SPECIALIST IN MAKING ALL KINDS OF MECHANICAL TRANSMISSION AND HYDRAULIC TRANSMISSION LIKE: PLANETARY GEARBOXES, WORM REDUCERS, IN-LINE HELICAL GEAR SPEED REDUCERS, ARALLEL SHAFT HELICAL GEAR REDUCERS, HELICAL BEVEL REDUCERS, HELICAL WORM GEAR REDUCERS, AGRICULTURAL GEARBOXES, TRACTOR GEARBOXES, AUTO GEARBOXES, PTO DRIVE SHAFTS, SPECIAL REDUCER & RELATED GEAR COMPONENTS AND OTHER RELATED PRODUCTS, SPROCKETS, HYDRAULIC SYSTEM, VACUUM PUMPS, FLUID COUPLING, GEAR RACKS, CHAINS, TIMING PULLEYS, UDL SPEED VARIATORS, V PULLEYS, HYDRAULIC CYLINDER, GEAR PUMPS, SCREW AIR COMPRESSORS, SHAFT COLLARS LOW BACKLASH WORM REDUCERS AND SO ON. FURTHERMORE, WE CAN PRODUCE CUSTOMIZED VARIATORS, GEARED MOTORS, ELECTRIC MOTORS AND OTHER HYDRAULIC PRODUCTS ACCORDING TO CUSTOMERS’ DRAWINGS.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

Also I would like to take this opportunity to give a brief introduction of our Raydafon company: Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china. We have exported many products to our customers all over the world, we have long-time experience and strong technology support. Some of our customer : Italy: GB GEABOX, SATI, CHIARAVALLI, AMA, Brevini Germany: SILOKING ,GKN ,KTS France: Itfran, Sedies, Kuhn Brazil: AEMCO ,STU USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS Canada: JAY-LOR , CANIMEX ,RingBall ...... -> Our Company with over twelve year's history and 1000 workers and 20 sales. -> With over 100 Million USD sales in 2017 -> With advance machinery equipments -> With large work capacity and high quality control, ISO certified. ...... you also can check our website to know for more details, if you need our products catalogue, please contact with us.

FOR MORE DETAIL, PLEASE CONTACT US.
