Product Description

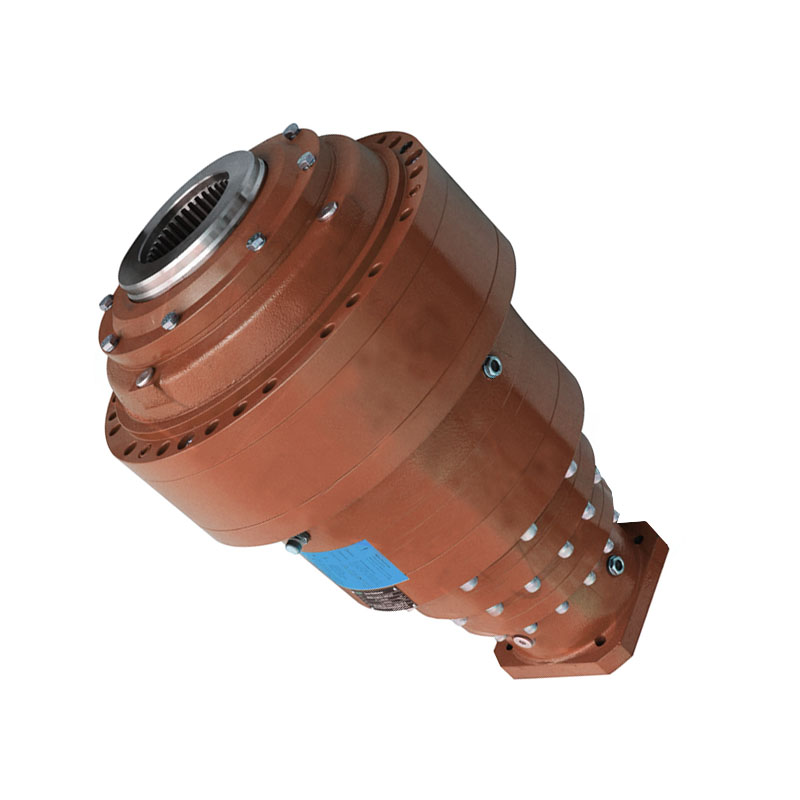

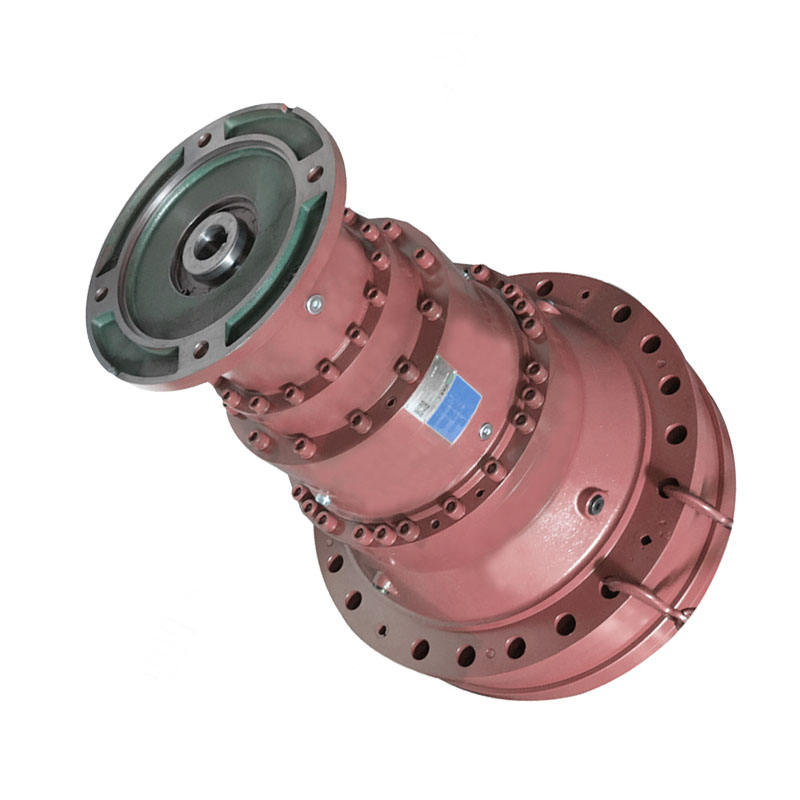

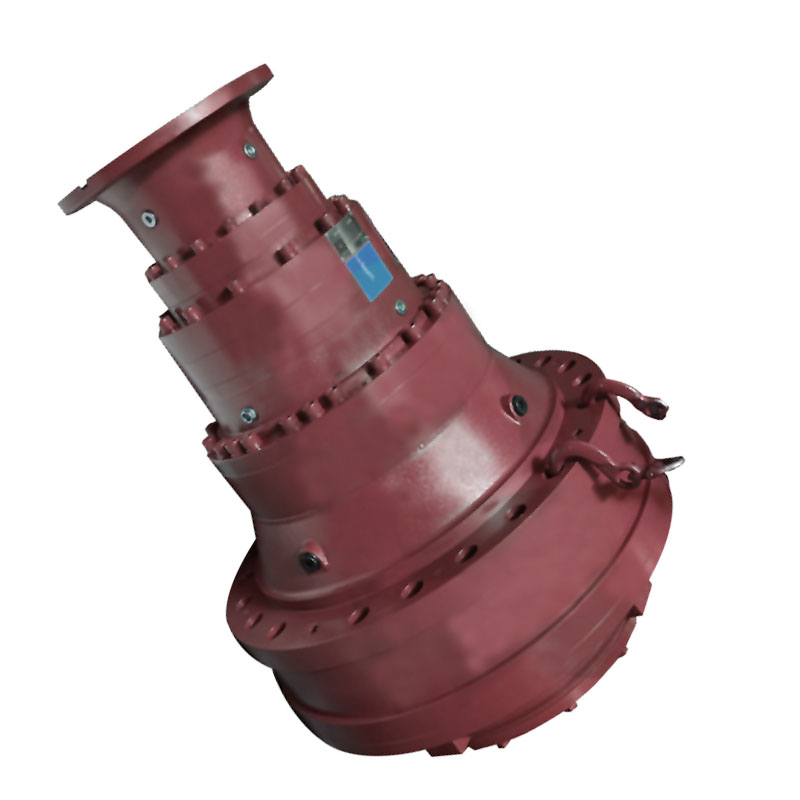

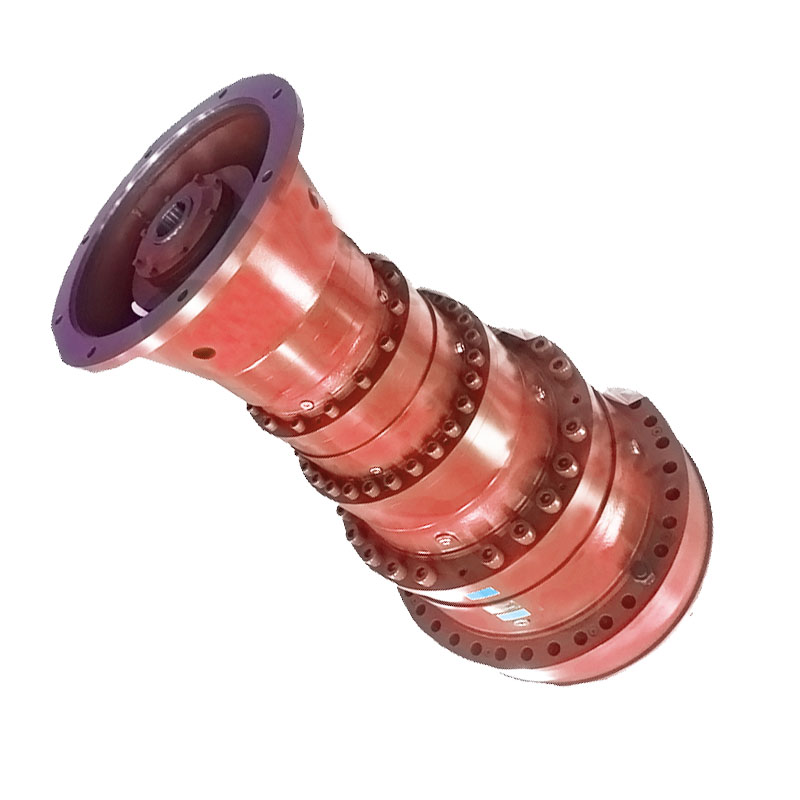

Series N4: 4 Stage Planetary Gearbox
Raydafon 4 stage planetary gearbox (series N4) features a heavy duty bearing on low-shaft. We have designed it to bear enormous radial load. Thanks to our R&D team who have made it easier for us to develop a 4 stage planetary gearbox with proportionate distribution of torque.
Every Raydafon 4 stage planetary gearbox is case hardened to guarantee transmission efficiency. Moreover, they come with rigid and nodular cast iron casing, making them durable and reliable even in the adverse working environment.
As a planetary drive manufacturer, apart from the high and reliable performance, load capacity and low speed shaft bearing; all our 4 stage planetary gearboxes produce virtually no noise.
Also, with vast experience on how planetary gearbox works, we are able to attain a wide range of output speeds and torques. You can use a planetary gear ratio formula to determine the best 4 stage planetary gearbox, suitable for your unique applications.
At Raydafon, you can find customized designs alongside our standard 4 stage planetary gearboxes.

Torque range	1000 … 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW			Electric motor
Gear ratios	140.36-3144.53			Solid input shaft with or without fan cooling – inch or metric dims.
Gear unit versions		Applicable AC motors	Integral motors and brake motors
Gear unit versions			Right angle (with bevel gear set)		IEC-normalized motors and brake motors
Mounting type	Foot			Single and dual speed motors
		Flange mounted	Main brake features	DC and AC supply
		Torque-arm	Main brake features		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
			Splined shaft		Independent forced cooling
			Female splined shaft		Line driver and push-pull incremental encoder
		Hollow shaft with shrink disc

Click here for more model types!

Raydafon GROUP is a Symbol of quality craftsmanship in China . Founded in 1988, specialize in the manufacturing of slewing drives , wheel drivck drives winch drives of gearboxes are used in a variety of applications including construction machine petroleum , coal , geological exploration , shipping , metallurgy , solar power , wind power , agriculture , andprotection .After years of developmental success , our products are intemational recognized for their quality . We export gearboxes to many places in the world , including Southeast Asia , the Middle East Germany , USA Canada Spain Australia , Turkey , and India . We are a consistently growing enterprise that seeks to satisfy our customatter their location
