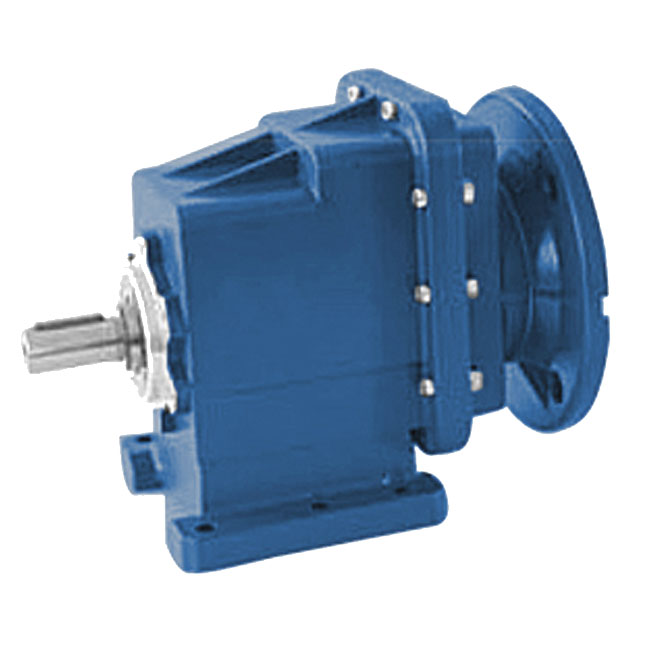

BRC IEC Series Foot Mounted Aluminum Alloy Housing Helical Gear Unit Gear Reducer

Raydafon Group's BRC IEC Series Foot Mounted Aluminum Alloy Housing Helical Gear Unit Gear Reducer delivers high torque and efficiency for industrial applications, ideal for engineers seeking durable, lightweight solutions with superior performance compared to traditional models.

Send Inquiry

Product Description

BRC IEC series helical gear reducer

The high degree of modularity is a designfeature of BRC helical gearboxes range . It can be connected respectively with motors such as normal motor , brake motor . explosion-proof motor , frequency conversion motor , servo motor . IEC motor and so on . This kind of product is widely used in drive fields such astextile , foodstuff , ceramics packing , logistics plastics and so on . It is possible to set up the version required using flanges or feet.

Model No	Output torque	Rated input speed	Max input speed	Ratio	Rated Power
BRC01	116N.m	≤1500rpm	3000rpm	3.82-53.33	120-1500W
BRC02	197N.m	≤1500rpm	3000rpm	3.66-54	180-1500W
BRC03	300N.m	≤1500rpm	3000rpm	3.74-51.3	370-4000W
BRC04	491N.m	≤1500rpm	3000rpm	3.74-51.3	750-4000W

Housing	Aluminum Alloys
Gears	Hardened Helical Gears
Input Configurations	Hollow Shaft with IEC Normalized Motor Flange /Solid Shaft Input
Applicable Motors	IEC-normalized Motors and Brake Motors/Explosion-proof Motors/Inverter Motors/Servo Motors
Output Configurations	Solid Shaft with B5 Output Flange/Solid Shaft with B14 Output Flange
Models	RC(Foot-mounted): RC01,RC02,RC03,RC04 RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04 RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04
Input Speed	1400rpm
Input Power	0.12kw~4kw
Ratio	3.66~54

Features:
1. Modular design, dismountable frame foot, optional different frame sizes and flanges
2. Aluminum housing, compact structures, light weight
3. Carburizing and grinding hardened gears, sturdy and durable
4. Multiple mounting positions
5. Low noise
